Toyota Yaris
2019-08 → 2021-03 · chassis NSP151 · catalogue 14A310 · General
Supported model
Data version 2021-11

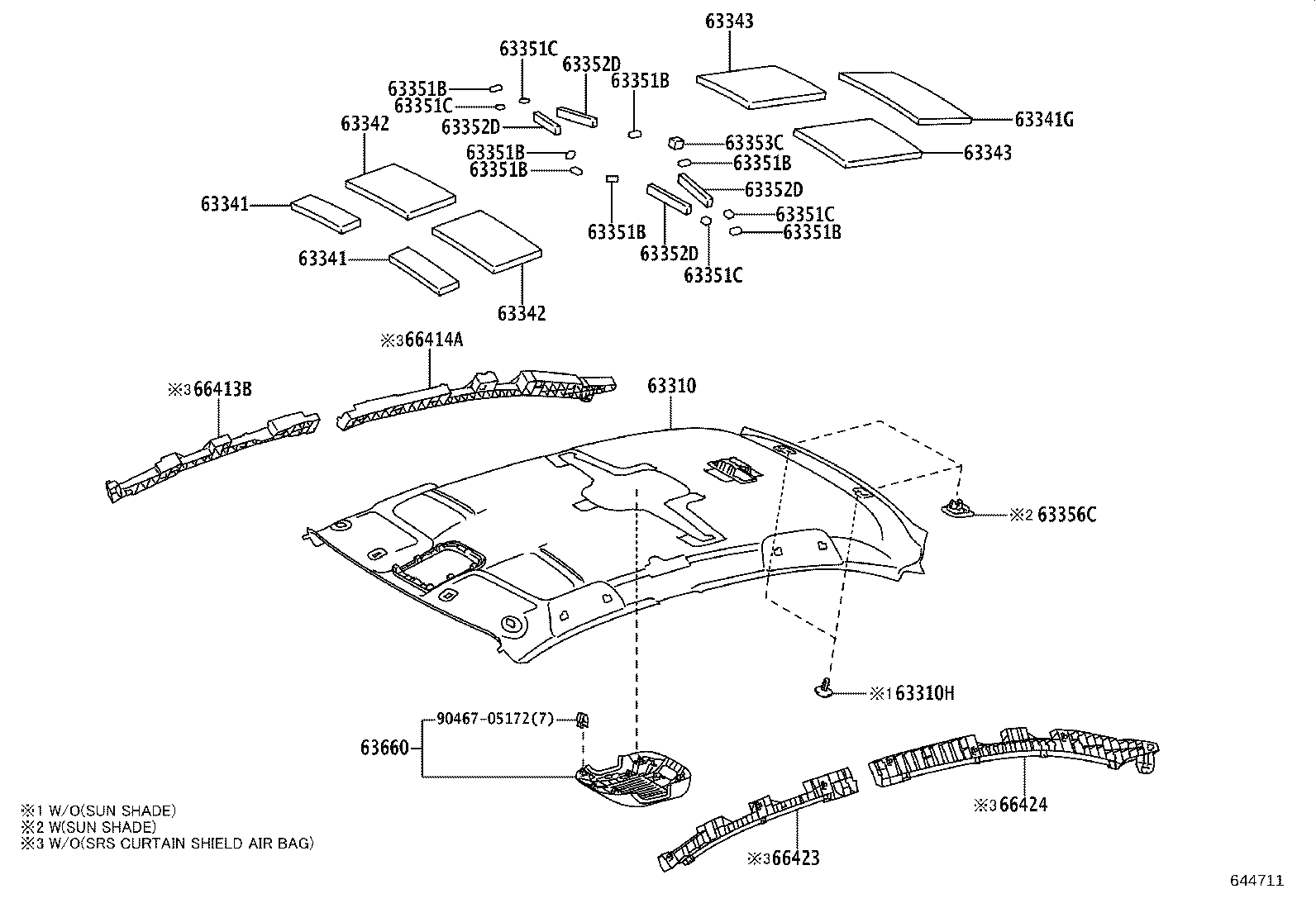

Roof Headlining & Silencer Pad
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344 | Pad, Roof Silencer, NO.4 |
| 63351B | Pad, Roof Headlining |
| 63351C | Pad, Roof Headlining |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63353C | Pad, Roof Headlining, Center |
| 63356C | Holder, Sunshade Trim |
| 63660 | Cover Assy, Roof Headlining Trim, NO.1 |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
