Toyota Yaris
2019-08 → 2021-03 · chassis NSP151 · catalogue 14A310 · General
Supported model
Data version 2021-11

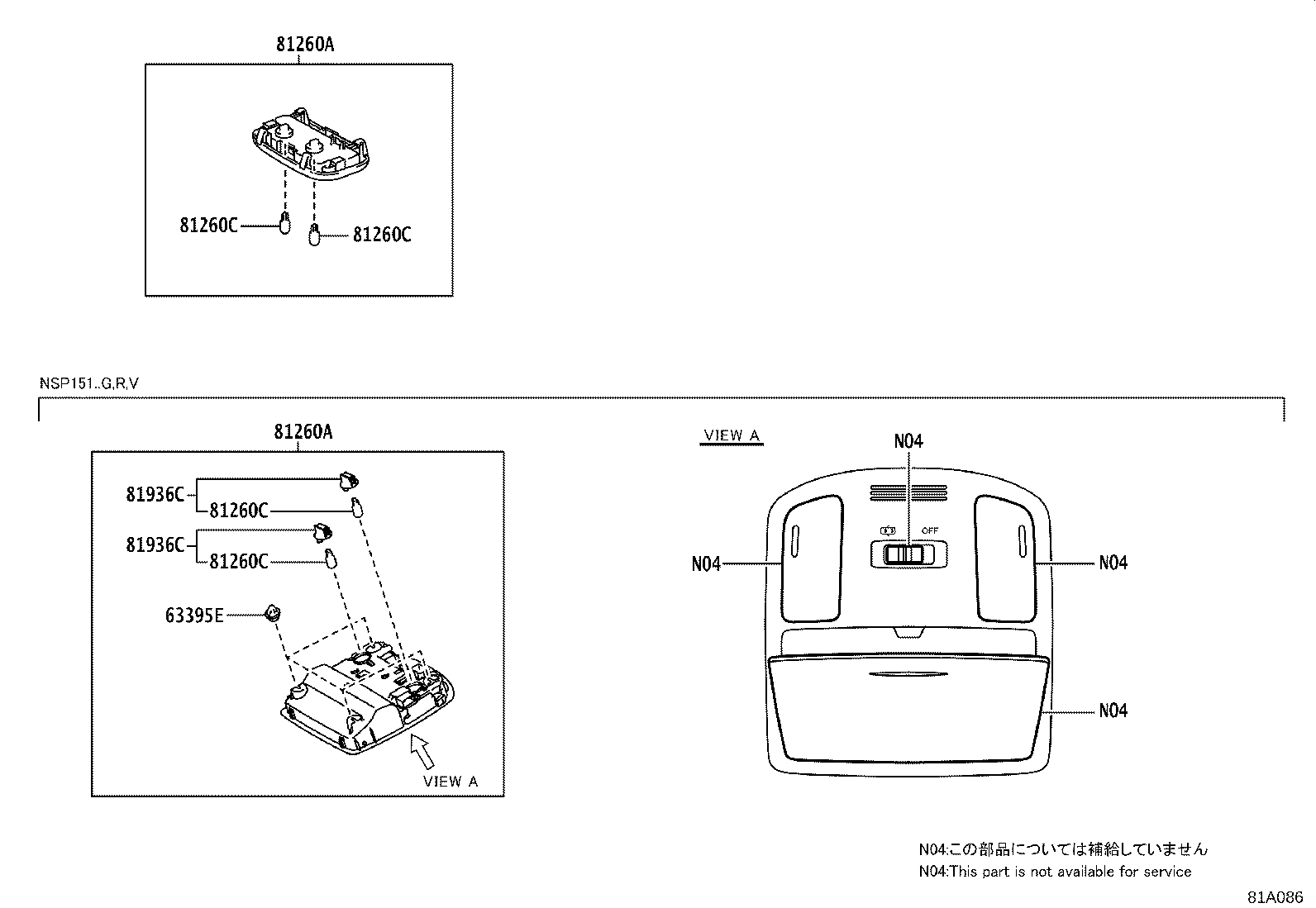

Interior Lamp
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240J | Lamp Assy, Room |
| 81240L | Bulb, Room Lamp |
| 81249 | Switch, Room Lamp |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81360T | Lamp Assy, Spot |
| 81936C | Bulb Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
