Toyota Yaris

2019-08 → 2021-03 · chassis NSP151 · catalogue 14A310 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

47 part groups · 9 illustrations

Illustrations

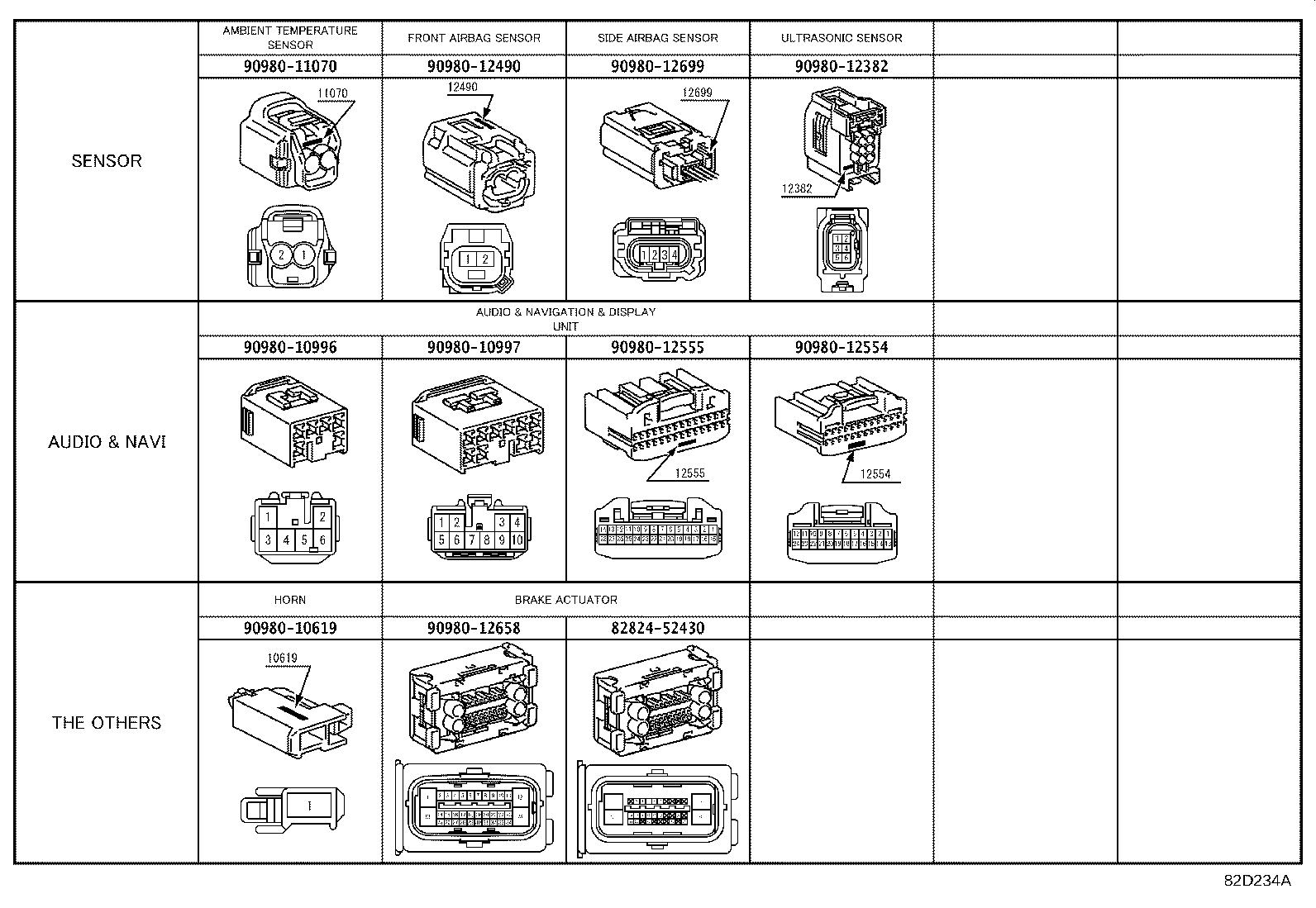

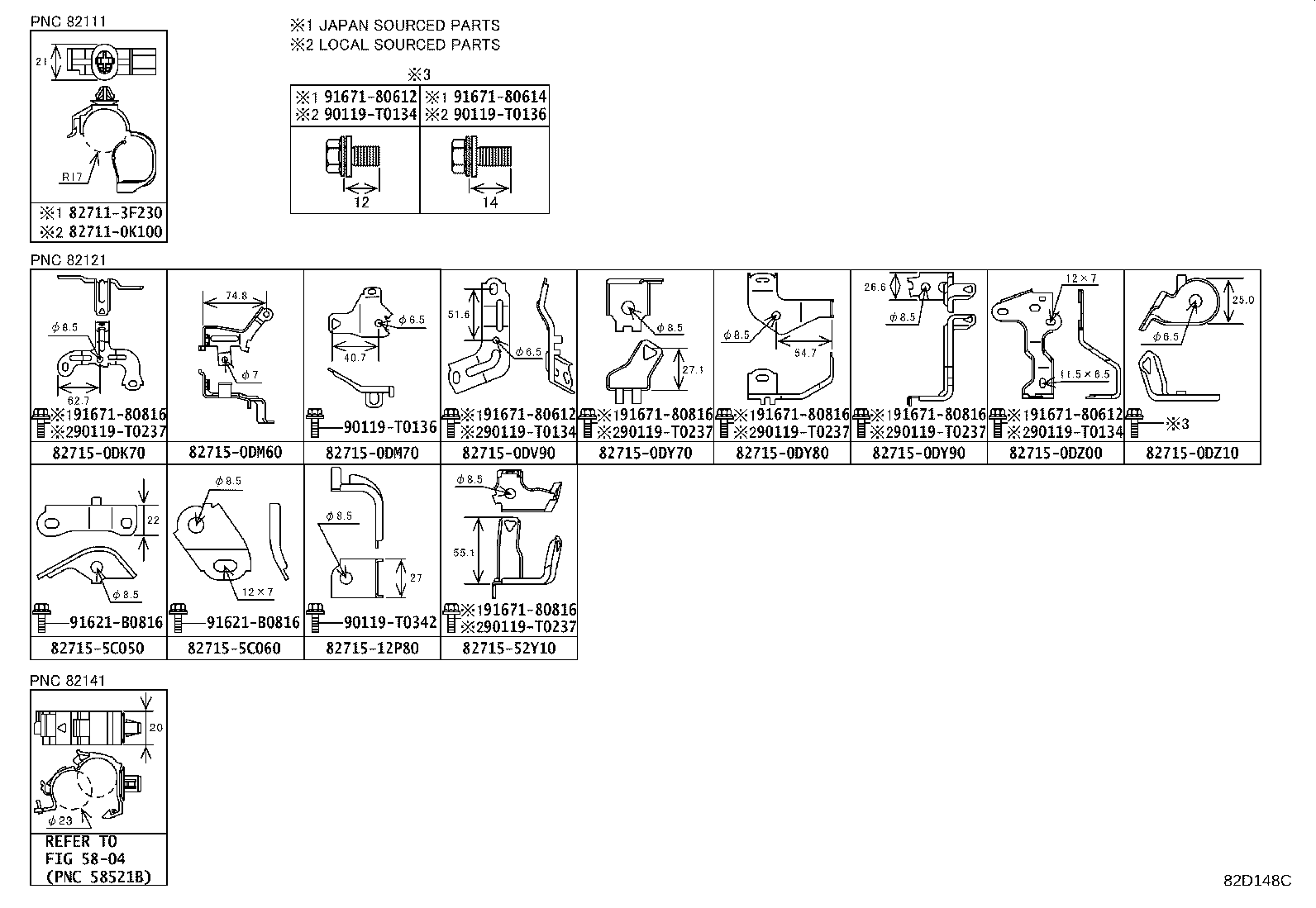

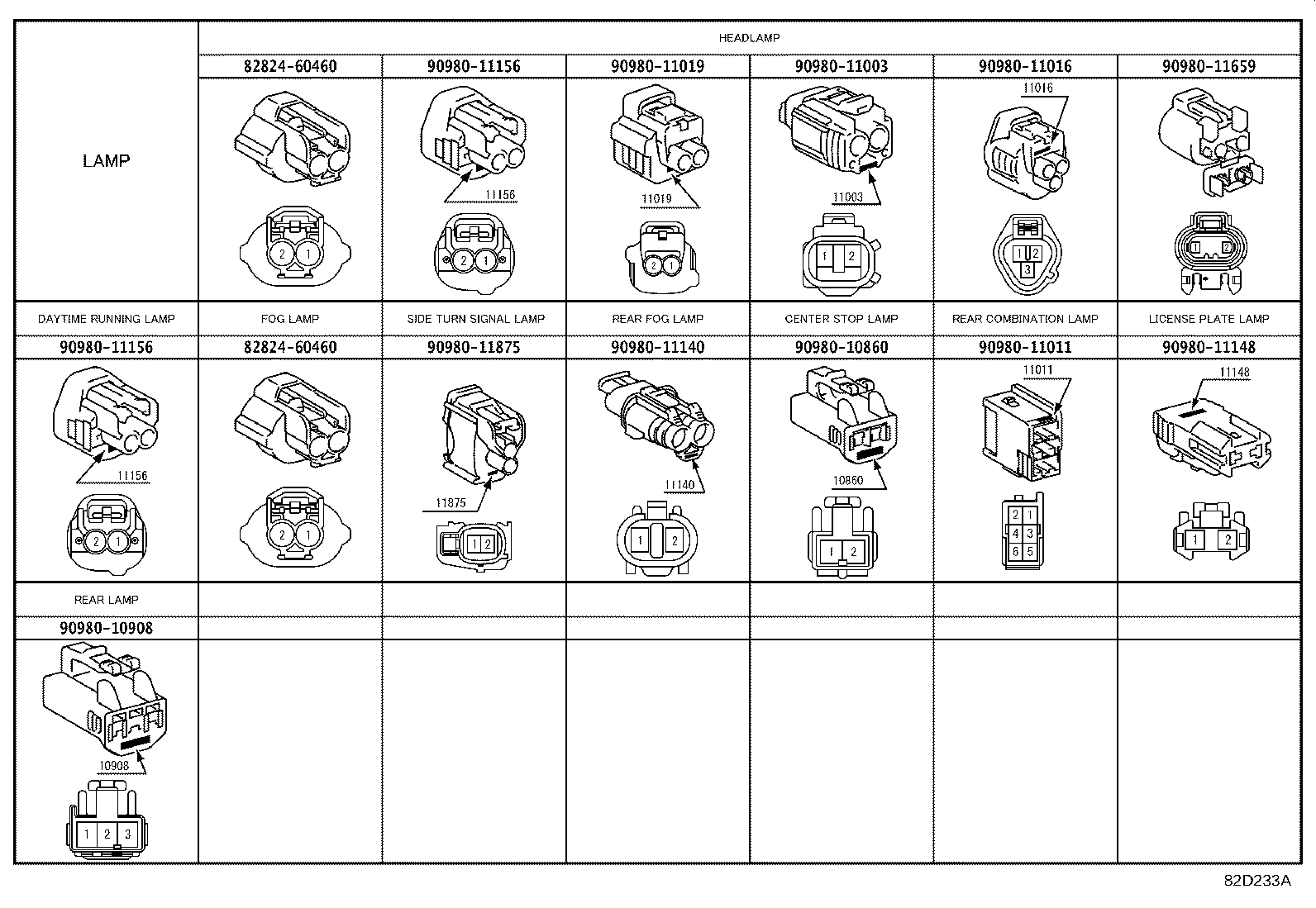

Figure 82D143B 82D143B 2019-08 → — Figure 82D144C 82D144C 2019-08 → — Figure 82D149B 82D149B 2019-08 → — Figure 82D145C 82D145C 2019-08 → — Figure 82D146A 82D146A 2019-08 → — Figure 82D147 82D147 2019-08 → — Figure 82D148C 82D148C 2019-08 → — Figure 82D233A 82D233A 2019-08 → — Figure 82D234A 82D234A 2019-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main

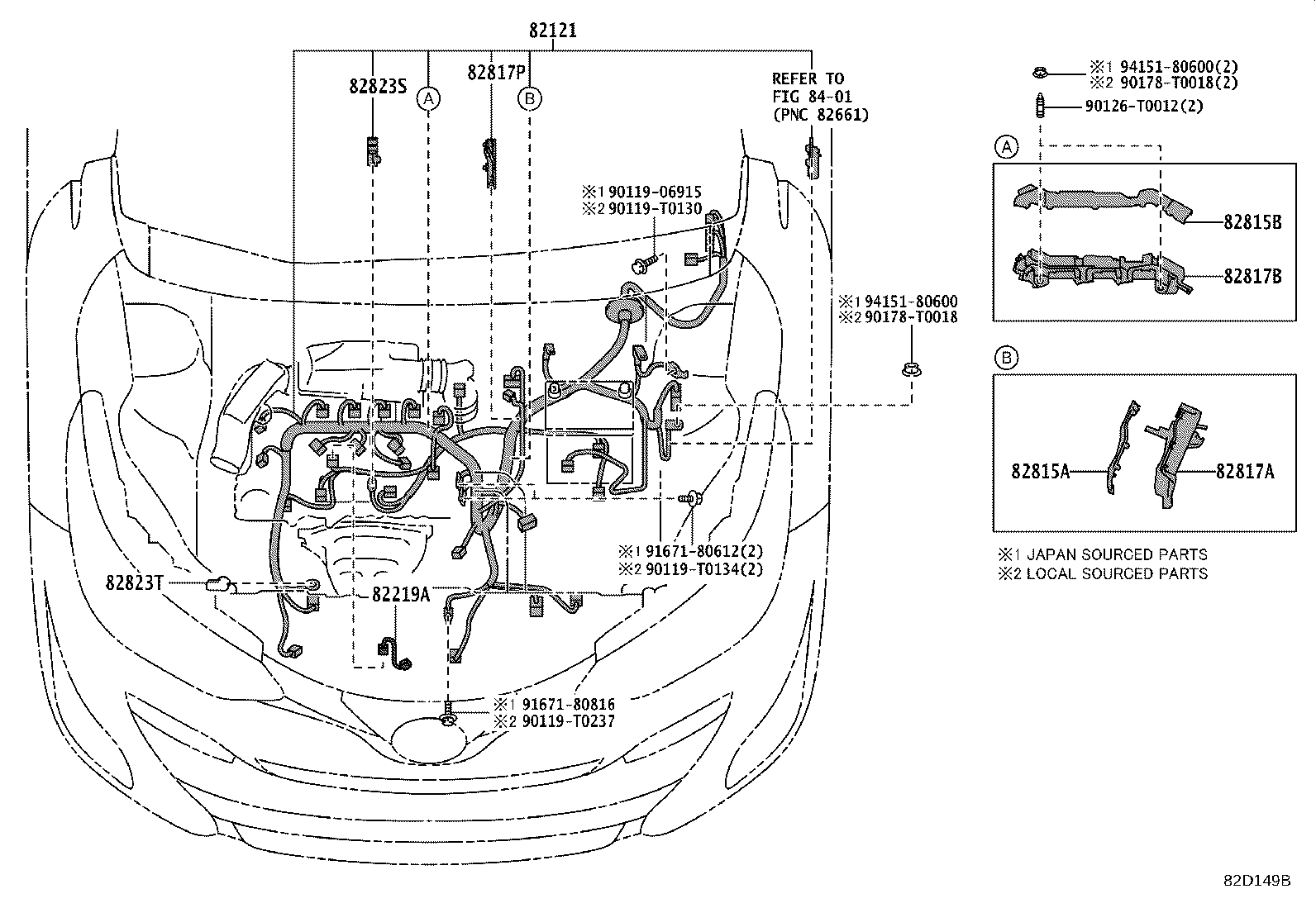

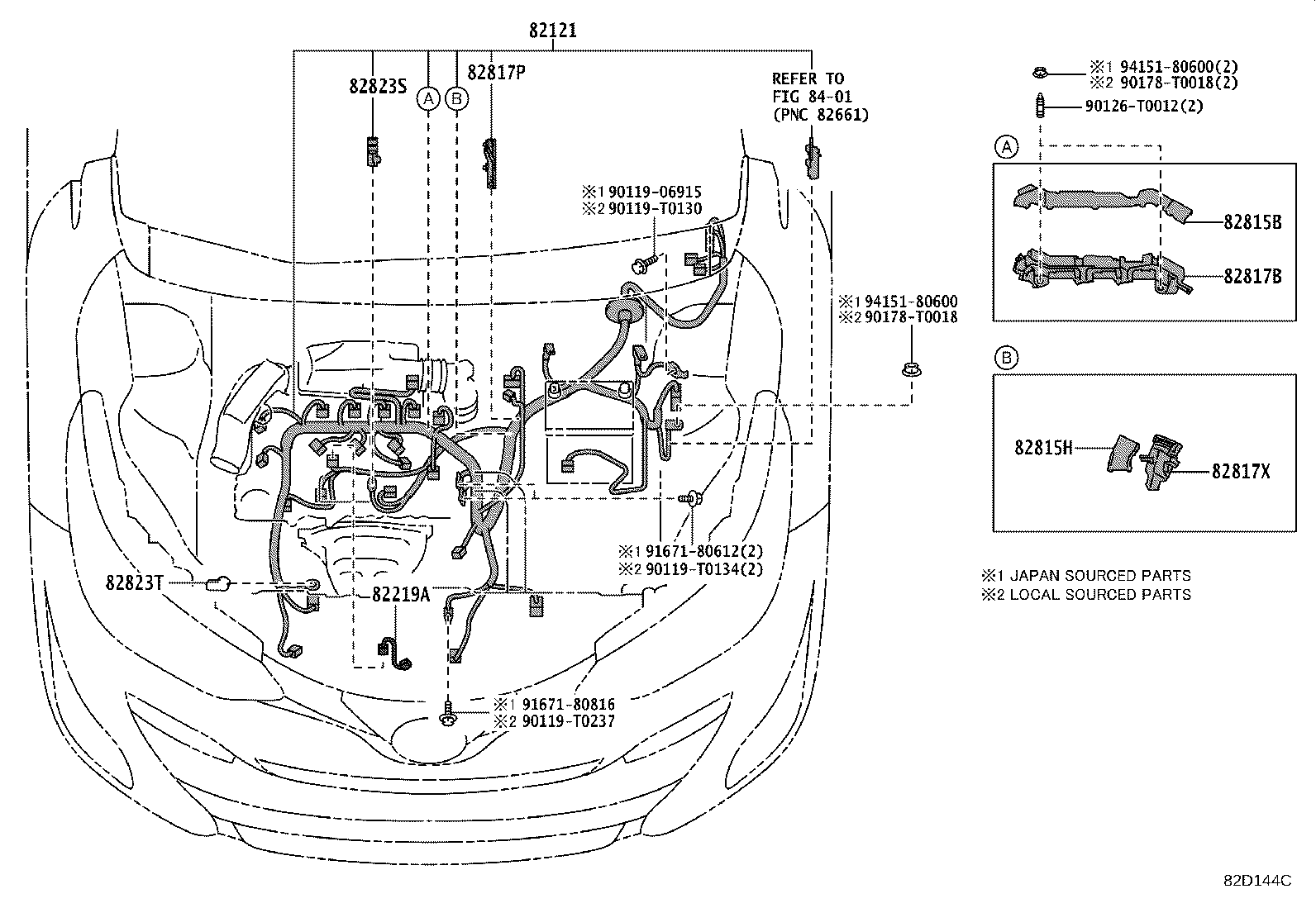

82121 Wire, Engine

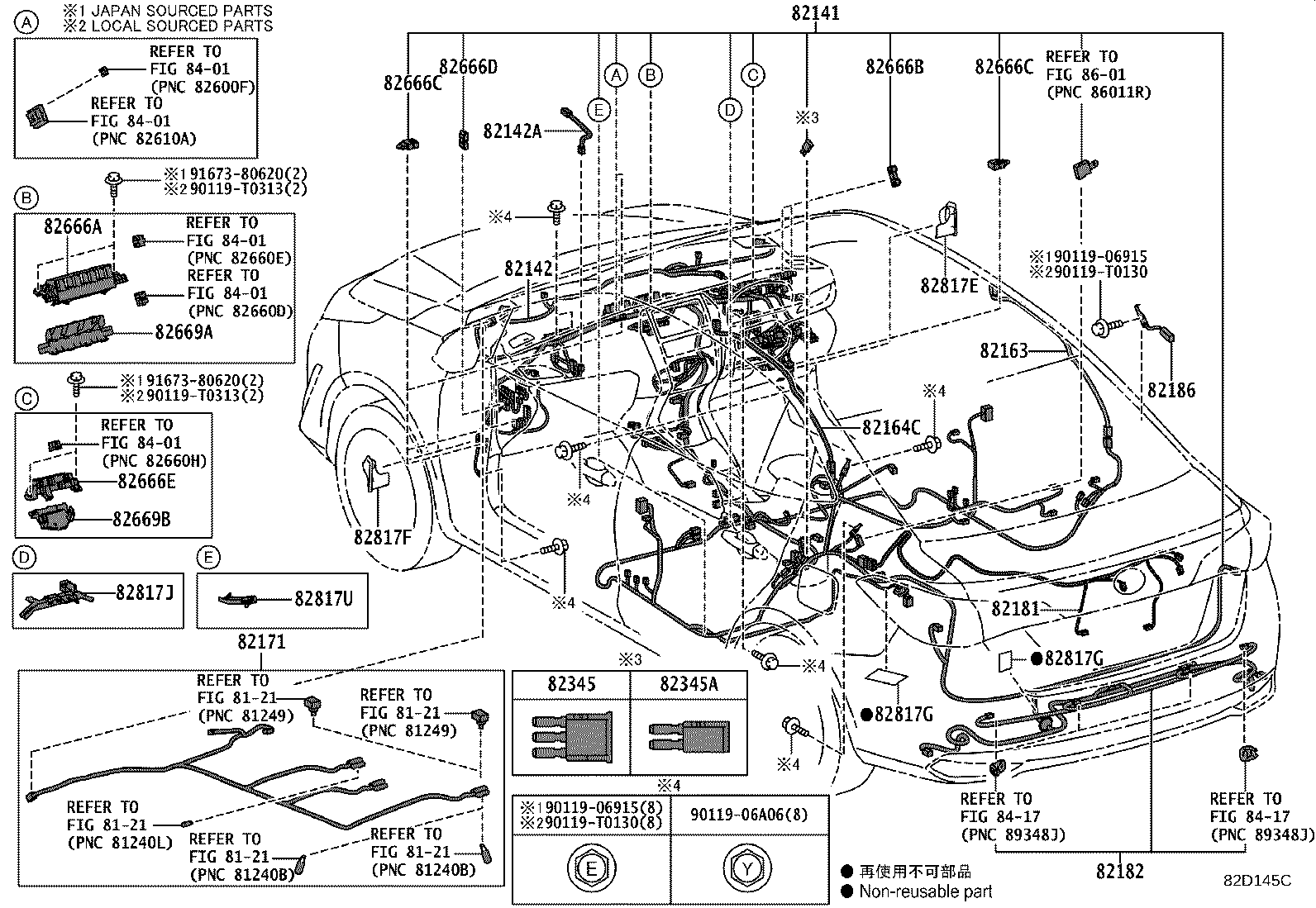

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2

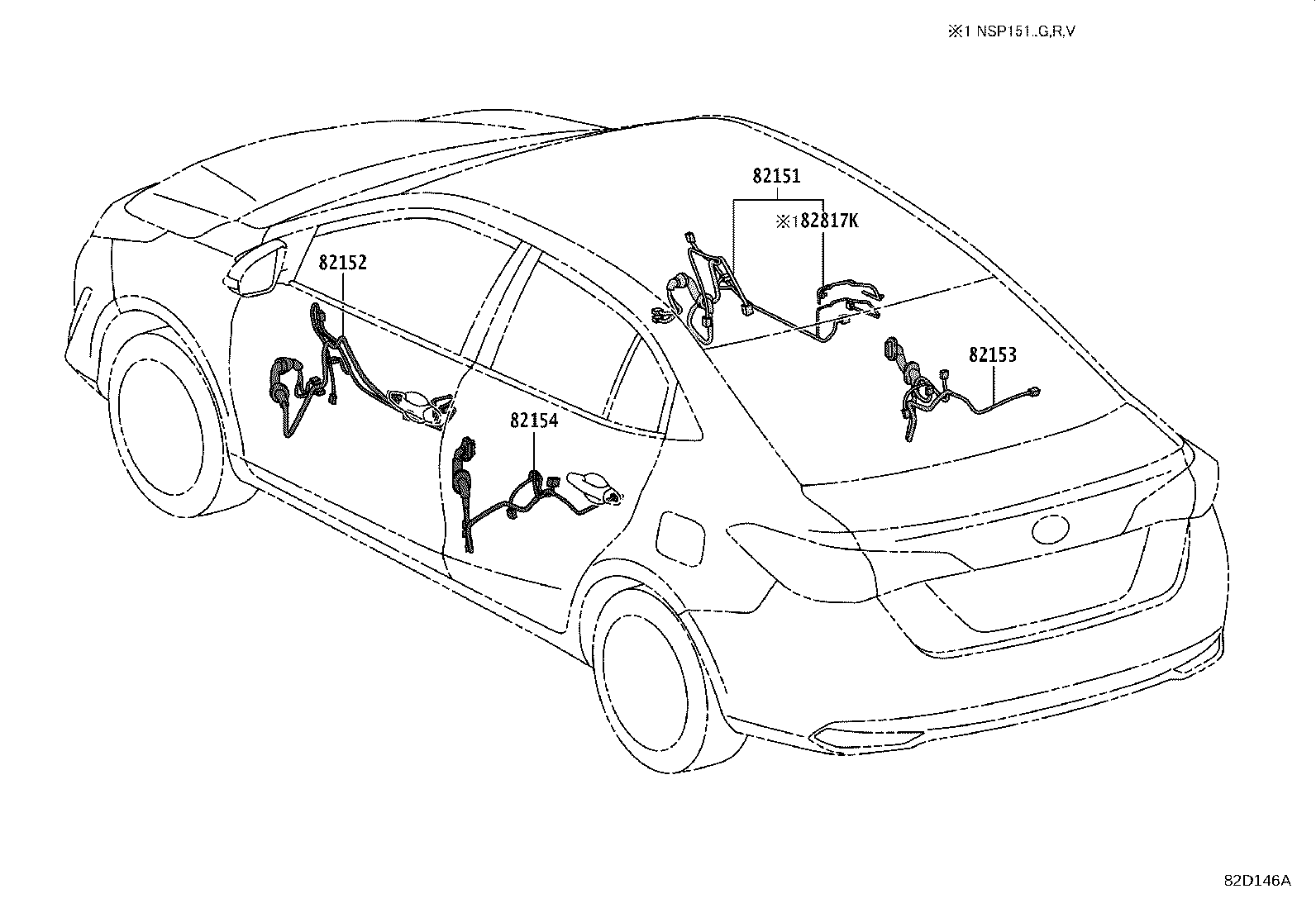

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82186 Wire, Rear Window, NO.1

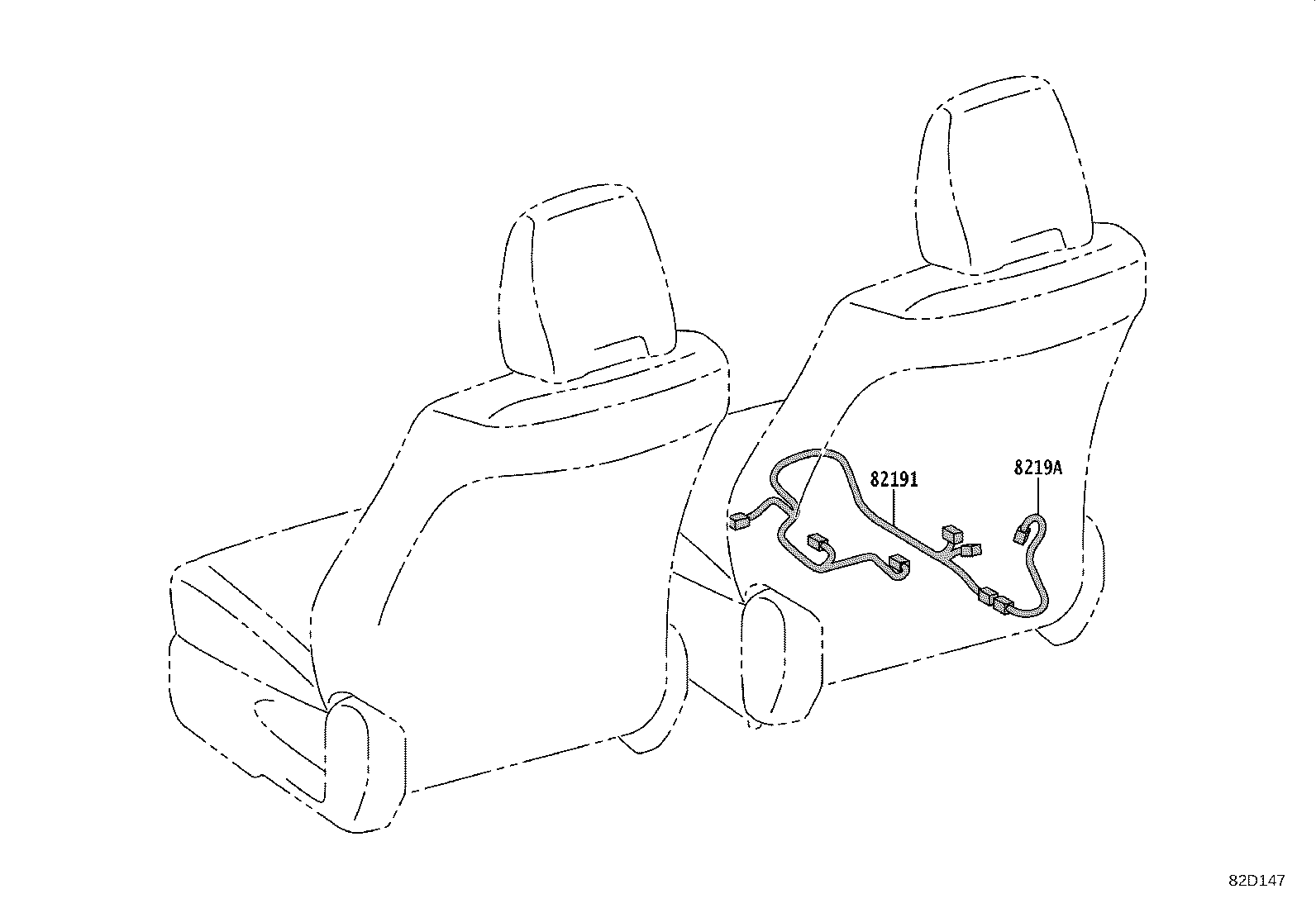

82191 Wire, Front Seat, RH
8219A Wire, Front Seat, RH NO.2
82219A Wire, Sensor
82345 Diode
82345A Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82669A Cover, Connector Holder Block, Lower
82669B Cover, Connector Holder Block, Lower
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82821P Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
