Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

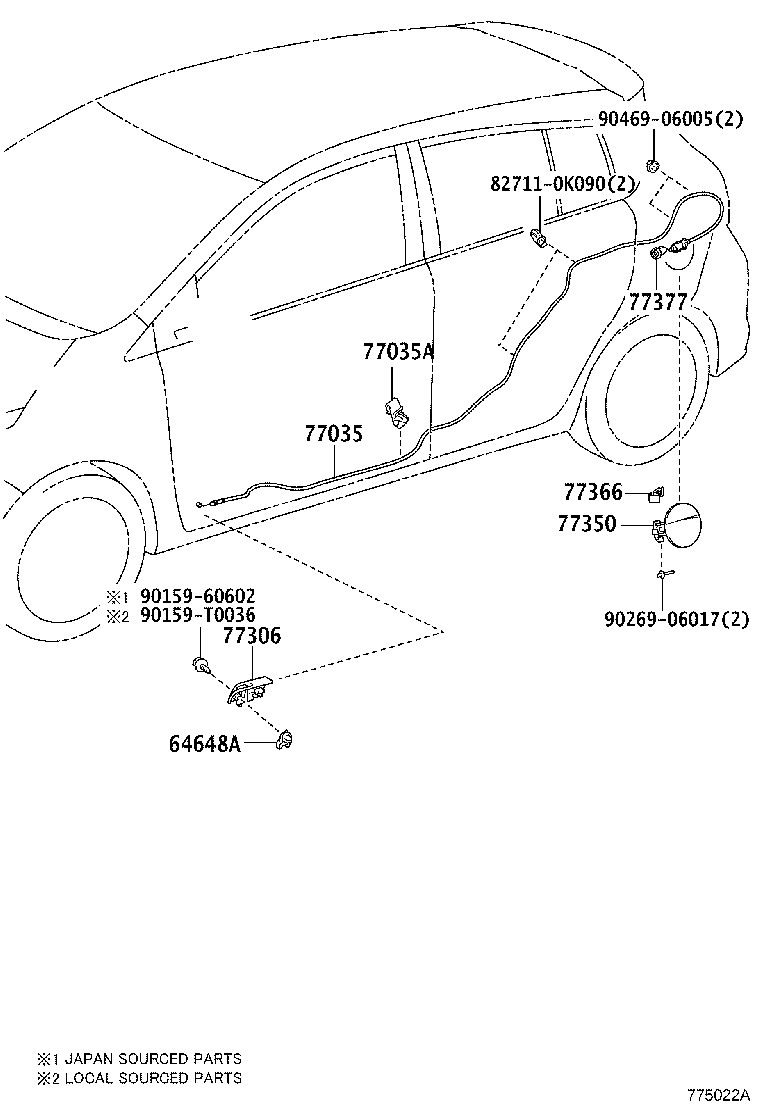

Exploded illustration 775022A 64648A — GROMMET, LUGGAGE DOOR LOCK OPENER (6 parts) 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (11 parts) 77035A — CLAMP (FOR FUEL LID LOCK CONTROL CABLE) (6 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (11 parts) 77350 — LID ASSY, FUEL FILLER OPENING (11 parts) 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (6 parts) 827110K090 — not listed in this catalogue 90159T0036 — not listed in this catalogue 9015960602 — not listed in this catalogue 9026906017 — not listed in this catalogue 77366 — SPRING, FUEL FILLER OPENING LID HINGE (6 parts) 9046906005 — not listed in this catalogue
775022A · 7 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
64648A — Grommet, Luggage Door Lock Opener
64648-0D020 Grommet, Luggage Door Lock Opener
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
64648-0D020 Grommet, Luggage Door Lock Opener
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
64648-0D020 Grommet, Luggage Door Lock Opener
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
64648-0D020 Grommet, Luggage Door Lock Opener
2022-01 → 2022-06 ended
NSP151 CVT BZ D —
64648-0D020 Grommet, Luggage Door Lock Opener
2022-01 → 2025-01 ended
NSP151 V);NSP151 6F 4D +14 —
64648-0D020 Grommet, Luggage Door Lock Opener
2022-01 → —
NSP151 5D CVT AGT +5 —
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-0D600 Cable Sub-assy, Fuel Lid Lock Control
2019-11 → 2021-04 ended
NSP15# 5D 6F BZ +1 —
77035-0D600 Cable Sub-assy, Fuel Lid Lock Control
2019-11 → 2022-01 ended
NSP151 5D CVT (AGT,BZ);NSP151 +4 —
77035-0D600 Cable Sub-assy, Fuel Lid Lock Control
2019-11 → —
NSP150 ) CVT;NSP151 5D +10 —
77035-0D620 Cable Sub-assy, Fuel Lid Lock Control
2019-11 → 2021-04 ended
NSP151 4D 6F BZ +1 —
77035-0D620 Cable Sub-assy, Fuel Lid Lock Control
2019-11 → 2022-01 ended
NSP151 4D 6F AGT;NSP151 +3 —
77035-0D620 Cable Sub-assy, Fuel Lid Lock Control
2019-11 → —
NSP151 4D CVT GEN +5 —
77035-0D600 Cable Sub-assy, Fuel Lid Lock Control
2022-01 → 2022-06 ended
NSP151 5D BZ D —
77035-0D600 Cable Sub-assy, Fuel Lid Lock Control
2022-01 → 2025-01 ended
NSP151 5D CVT BZ +5 —
77035-0D600 Cable Sub-assy, Fuel Lid Lock Control
2022-01 → —
NSP151 5D CVT AGT +5 —
77035-0D620 Cable Sub-assy, Fuel Lid Lock Control
2022-01 → 2022-06 ended
NSP151 4D CVT BZ +1 —
77035-0D620 Cable Sub-assy, Fuel Lid Lock Control
2022-01 → 2025-01 ended
NSP151 R,V) 4D 6F +9 —
77035A — Clamp (FOR FUEL LID LOCK CONTROL CABLE)
90469-T0001 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2019-11 → 2021-04 ended
NSP15# 5D 6F BZ +1 —
90469-T0001 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2019-11 → 2022-01 ended
NSP151 5D CVT (AGT,BZ);NSP151 +4 —
90469-T0001 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2019-11 → —
NSP150 ) CVT;NSP151 5D +10 —
90469-T0001 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2022-01 → 2022-06 ended
NSP151 5D BZ D —
90469-T0001 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2022-01 → 2025-01 ended
NSP151 5D CVT BZ +5 —
90469-T0001 Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2022-01 → —
NSP151 5D CVT AGT +5 —
77306 — Lever Sub-assy, Fuel Lid Lock Open
64606-0D130 Lever Sub-assy, Fuel Lid Lock Open
2019-11 → 2021-04 ended
NSP151 4D 6F BZ +1 —
64606-0D130 Lever Sub-assy, Fuel Lid Lock Open
2019-11 → 2022-01 ended
NSP151 4D 6F AGT;NSP151 +3 —
64606-0D130 Lever Sub-assy, Fuel Lid Lock Open
2019-11 → —
NSP151 4D CVT GEN +5 —
77306-0D070 Lever Sub-assy, Fuel Lid Lock Open
2019-11 → —
NSP150 ) CVT;NSP151 5D +10 —
77306-0D070 Lever Sub-assy, Fuel Lid Lock Open
2019-11 → 2021-04 ended
NSP15# 5D 6F BZ +1 —
77306-0D070 Lever Sub-assy, Fuel Lid Lock Open
2019-11 → 2022-01 ended
NSP151 5D CVT (AGT,BZ);NSP151 +4 —
64606-0D130 Lever Sub-assy, Fuel Lid Lock Open
2022-01 → 2022-06 ended
NSP151 4D CVT BZ +1 —
64606-0D130 Lever Sub-assy, Fuel Lid Lock Open
2022-01 → 2025-01 ended
NSP151 R,V) 4D 6F +9 —
77306-0D070 Lever Sub-assy, Fuel Lid Lock Open
2022-01 → 2022-06 ended
NSP151 5D BZ D —
77306-0D070 Lever Sub-assy, Fuel Lid Lock Open
2022-01 → 2025-01 ended
NSP151 5D CVT BZ +5 —
77306-0D070 Lever Sub-assy, Fuel Lid Lock Open
2022-01 → —
NSP151 5D CVT AGT +5 —
77350 — Lid Assy, Fuel Filler Opening
77350-0D190 Lid Assy, Fuel Filler Opening
2019-11 → 2021-04 ended
NSP15# 5D 6F BZ +1 —
77350-0D190 Lid Assy, Fuel Filler Opening
2019-11 → 2022-01 ended
NSP151 5D CVT (AGT,BZ);NSP151 +4 —
77350-0D190 Lid Assy, Fuel Filler Opening
2019-11 → —
NSP150 ) CVT;NSP151 5D +10 —
77350-0D240 Lid Assy, Fuel Filler Opening
2019-11 → 2021-04 ended
NSP151 4D 6F BZ +1 —
77350-0D240 Lid Assy, Fuel Filler Opening
2019-11 → 2022-01 ended
NSP151 4D 6F AGT;NSP151 +3 —
77350-0D240 Lid Assy, Fuel Filler Opening
2019-11 → —
NSP151 4D CVT GEN +5 —
77350-0D190 Lid Assy, Fuel Filler Opening
2022-01 → 2025-01 ended
NSP151 5D CVT BZ +5 —
77350-0D190 Lid Assy, Fuel Filler Opening
2022-01 → —
NSP151 5D CVT AGT +5 —
77350-0D190 Lid Assy, Fuel Filler Opening
2022-01 → 2022-06 ended
NSP151 5D BZ D —
77350-0D240 Lid Assy, Fuel Filler Opening
2022-01 → 2022-06 ended
NSP151 4D CVT BZ +1 —
77350-0D240 Lid Assy, Fuel Filler Opening
2022-01 → 2025-01 ended
NSP151 R,V) 4D 6F +9 —
77366 — Spring, Fuel Filler Opening Lid Hinge
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2022-01 → 2022-06 ended
NSP151 CVT BZ D —
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2022-01 → 2025-01 ended
NSP151 V);NSP151 6F 4D +14 —
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2022-01 → —
NSP151 5D CVT AGT +5 —
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2022-01 → 2022-06 ended
NSP151 CVT BZ D —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2022-01 → 2025-01 ended
NSP151 V);NSP151 6F 4D +14 —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2022-01 → —
NSP151 5D CVT AGT +5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
