Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

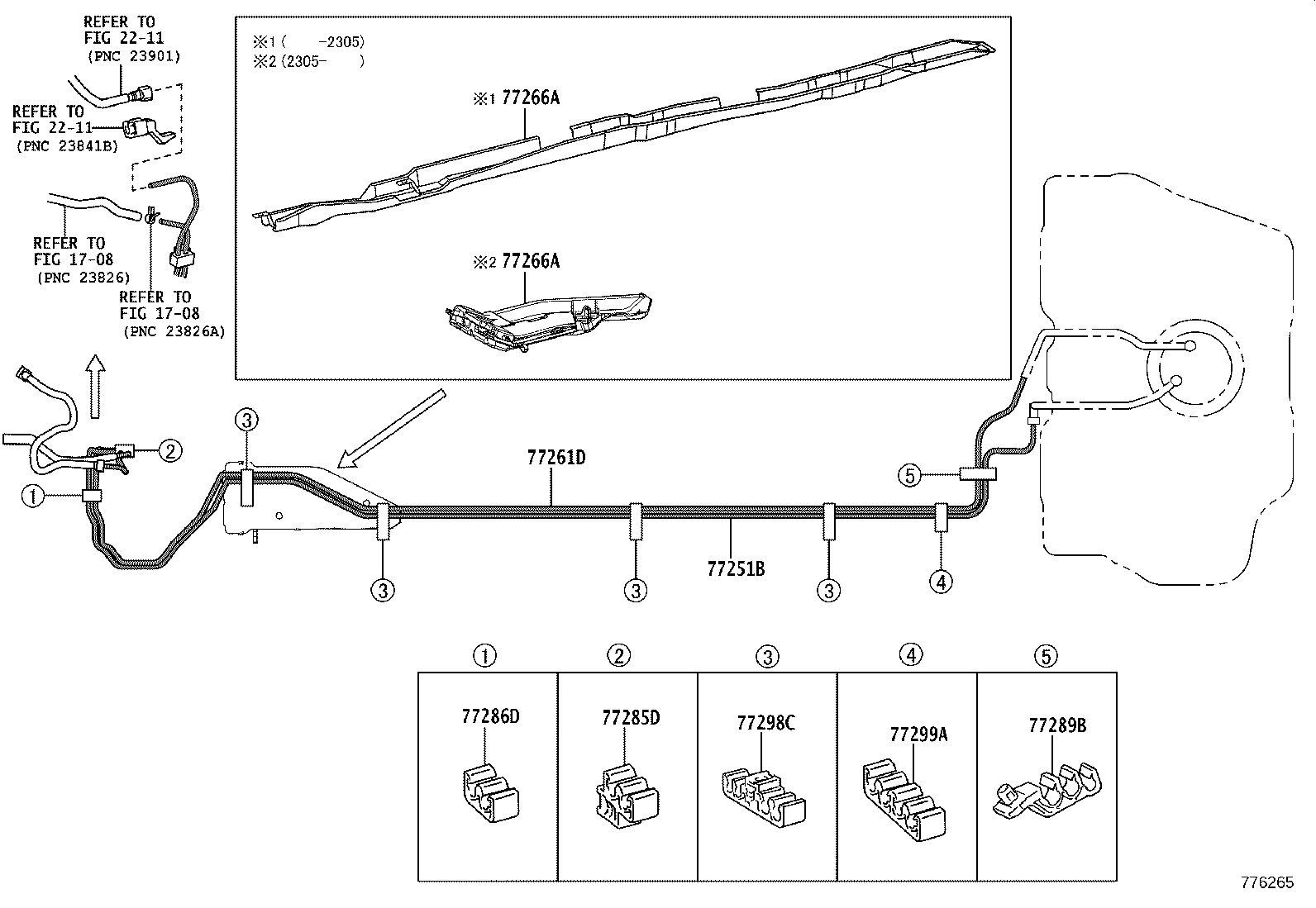

Exploded illustration 776265 1708 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 1708 — not listed in this catalogue 77251B — TUBE, FUEL MAIN (7 parts) 77261D — TUBE, FUEL TANK TO CANISTER (7 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (7 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (7 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (7 parts) 77298C — CLAMP, FUEL TUBE, NO.4 (7 parts) 77299A — CLAMP, FUEL TUBE, NO.5 (7 parts) 77266A — PROTECTOR, FUEL TUBE, NO.1 (8 parts) 77266A — PROTECTOR, FUEL TUBE, NO.1 (8 parts)
776265 · 9 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-0D590 Tube, Fuel Main
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77251-0D590 Tube, Fuel Main
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77251-0D590 Tube, Fuel Main
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77251-0D590 Tube, Fuel Main
2022-01 → 2025-01 ended
NSP151 (R,V) 6F (R,V);NSP151 +10 —
77251-0D590 Tube, Fuel Main
2022-01 → —
NSP151 5D CVT AGT +5 —
77251-0D690 Tube, Fuel Main
2022-01 → 2023-05 ended
NSP151 CVT BZ D —
77251-0D690 Tube, Fuel Main
2022-01 → 2025-01 ended
NSP151 CVT BZ (G,R,V) —
77261D — Tube, Fuel Tank TO Canister
77261-0D520 Tube, Fuel Tank TO Canister
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77261-0D520 Tube, Fuel Tank TO Canister
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77261-0D520 Tube, Fuel Tank TO Canister
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77261-0D520 Tube, Fuel Tank TO Canister
2022-01 → 2025-01 ended
NSP151 (R,V) 6F (R,V);NSP151 +10 —
77261-0D520 Tube, Fuel Tank TO Canister
2022-01 → —
NSP151 5D CVT AGT +5 —
77261-0D600 Tube, Fuel Tank TO Canister
2022-01 → 2023-05 ended
NSP151 CVT BZ —
77261-0D620 Tube, Fuel Tank TO Canister
2023-05 → 2025-01 ended
NSP151 CVT BZ (G,R,V) —
77266A — Protector, Fuel Tube, NO.1
77266-0D130 Protector, Fuel Tube, NO.1
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77266-0D130 Protector, Fuel Tube, NO.1
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77266-0D130 Protector, Fuel Tube, NO.1
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77266-0D130 Protector, Fuel Tube, NO.1
2022-01 → 2023-05 ended
NSP151 AGT G;NSP151 (AGT,GEN) +1 —
77267-0D040 Protector, Fuel Tube, NO.1
2022-01 → 2023-05 ended
NSP151 CVT BZ D —
77267-0D040 Protector, Fuel Tube, NO.1
2022-01 → 2025-01 ended
NSP151 CVT BZ (G,R,V) —
77267-0D100 Protector, Fuel Tube, NO.1
2023-05 → 2025-01 ended
NSP151 (R,V) 6F (R,V);NSP151 +10 —
77267-0D100 Protector, Fuel Tube, NO.1
2023-05 → —
NSP151 5D CVT AGT +5 —
77285D — Clamp, Fuel Tube, NO.1
77285-0D290 Clamp, Fuel Tube, NO.1
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77285-0D290 Clamp, Fuel Tube, NO.1
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77285-0D290 Clamp, Fuel Tube, NO.1
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77285-0D290 Clamp, Fuel Tube, NO.1
2022-01 → —
NSP151 5D CVT AGT +5 —
77285-0D290 Clamp, Fuel Tube, NO.1
2022-01 → 2025-01 ended
NSP151 (R,V) 6F (R,V);NSP151 +10 —
77285-0D300 Clamp, Fuel Tube, NO.1
2022-01 → 2025-01 ended
NSP151 CVT BZ (G,R,V) —
77285-0D300 Clamp, Fuel Tube, NO.1
2022-01 → 2023-05 ended
NSP151 CVT BZ D —
77286D — Clamp, Fuel Tube, NO.2
77286-0D230 Clamp, Fuel Tube, NO.2
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77286-0D230 Clamp, Fuel Tube, NO.2
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77286-0D230 Clamp, Fuel Tube, NO.2
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77286-0D230 Clamp, Fuel Tube, NO.2
2022-01 → 2025-01 ended
NSP151 (R,V) 6F (R,V);NSP151 +10 —
77286-0D230 Clamp, Fuel Tube, NO.2
2022-01 → —
NSP151 5D CVT AGT +5 —
77286-0D250 Clamp, Fuel Tube, NO.2
2022-01 → 2023-05 ended
NSP151 CVT BZ D —
77286-0D250 Clamp, Fuel Tube, NO.2
2022-01 → 2025-01 ended
NSP151 CVT BZ (G,R,V) —
77289B — Clamp, Fuel Tube, NO.3
77289-0D190 Clamp, Fuel Tube, NO.3
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77289-0D190 Clamp, Fuel Tube, NO.3
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77289-0D190 Clamp, Fuel Tube, NO.3
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77289-0D080 Clamp, Fuel Tube, NO.3
2022-01 → 2023-05 ended
NSP151 CVT BZ D —
77289-0D080 Clamp, Fuel Tube, NO.3
2022-01 → 2025-01 ended
NSP151 CVT BZ (G,R,V) —
77289-0D190 Clamp, Fuel Tube, NO.3
2022-01 → 2025-01 ended
NSP151 (R,V) 6F (R,V);NSP151 +10 —
77289-0D190 Clamp, Fuel Tube, NO.3
2022-01 → —
NSP151 5D CVT AGT +5 —
77298C — Clamp, Fuel Tube, NO.4
77298-0D200 Clamp, Fuel Tube, NO.4
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77298-0D200 Clamp, Fuel Tube, NO.4
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77298-0D200 Clamp, Fuel Tube, NO.4
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77298-0D200 Clamp, Fuel Tube, NO.4
2022-01 → 2025-01 ended
NSP151 (R,V) 6F (R,V);NSP151 +10 —
77298-0D200 Clamp, Fuel Tube, NO.4
2022-01 → —
NSP151 5D CVT AGT +5 —
77298-0D220 Clamp, Fuel Tube, NO.4
2022-01 → 2023-05 ended
NSP151 CVT BZ D —
77298-0D220 Clamp, Fuel Tube, NO.4
2022-01 → 2025-01 ended
NSP151 CVT BZ (G,R,V) —
77299A — Clamp, Fuel Tube, NO.5
77299-0D180 Clamp, Fuel Tube, NO.5
2019-11 → 2021-04 ended
NSP15# 6F BZ R —
77299-0D180 Clamp, Fuel Tube, NO.5
2019-11 → 2022-01 ended
NSP151 6F AGT;NSP151 CVT +5 —
77299-0D180 Clamp, Fuel Tube, NO.5
2019-11 → —
NSP150 4D CVT;NSP151 6F +11 —
77299-0D180 Clamp, Fuel Tube, NO.5
2022-01 → 2025-01 ended
NSP151 (R,V) 6F (R,V);NSP151 +10 —
77299-0D180 Clamp, Fuel Tube, NO.5
2022-01 → —
NSP151 5D CVT AGT +5 —
77299-0D190 Clamp, Fuel Tube, NO.5
2022-01 → 2023-05 ended
NSP151 CVT BZ D —
77299-0D190 Clamp, Fuel Tube, NO.5
2022-01 → 2025-01 ended
NSP151 CVT BZ (G,R,V) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
