Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12
Standard Tool
9 part groups · 2 illustrations

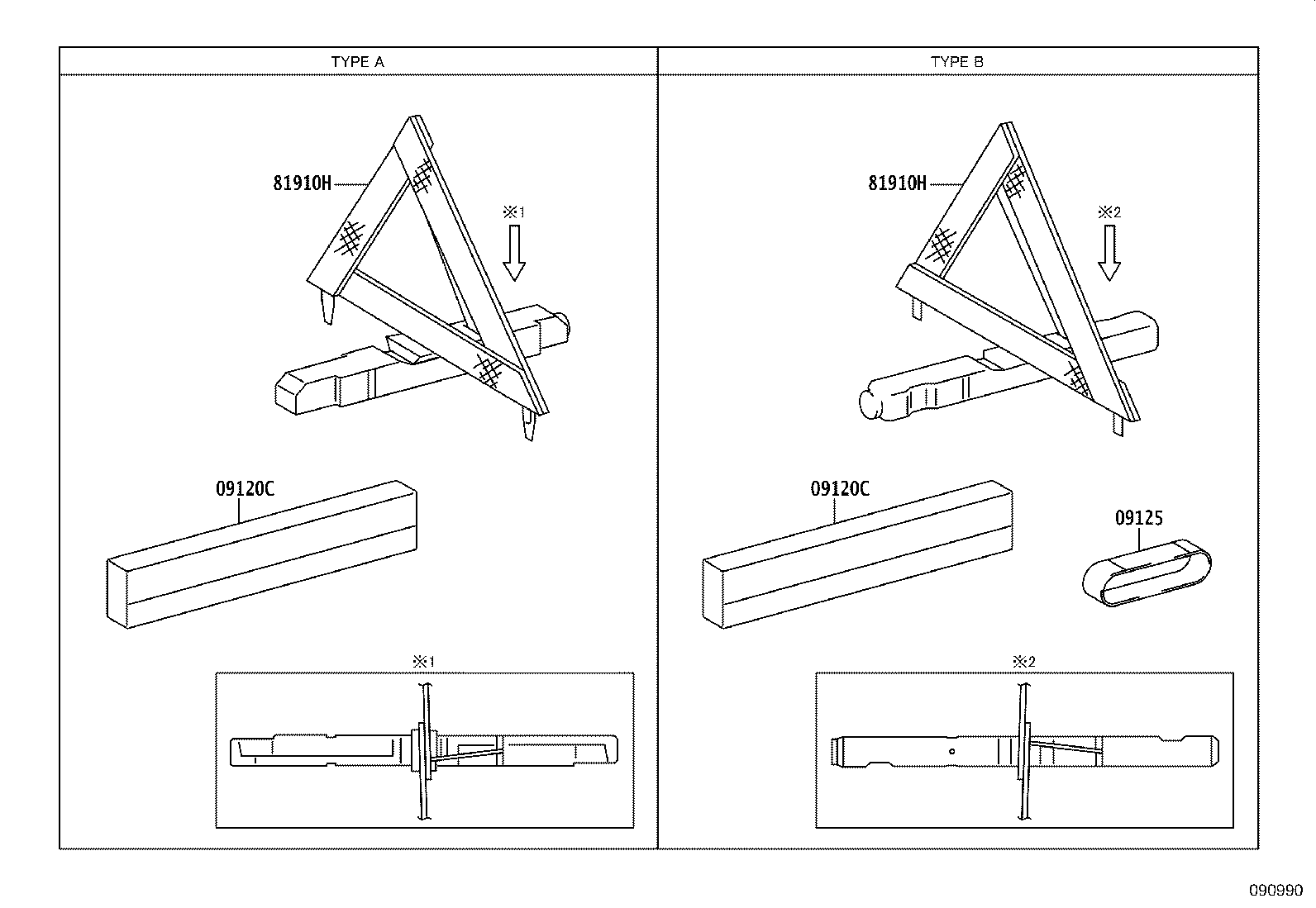

Part groups
| PNC | Description |
|---|---|
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09120 | Bag, Tool |
| 09120C | Bag,Tool, NO.2 |
| 09125 | Band, Tool Bag |
| 09150 | Wrench, Hub Nut Box |
| 51960 | Hook Assy, Front |
| 58379K | Protector, Body Lower Back |
| 81910H | Reflector Assy, Reflex |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
