Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12
Mounting

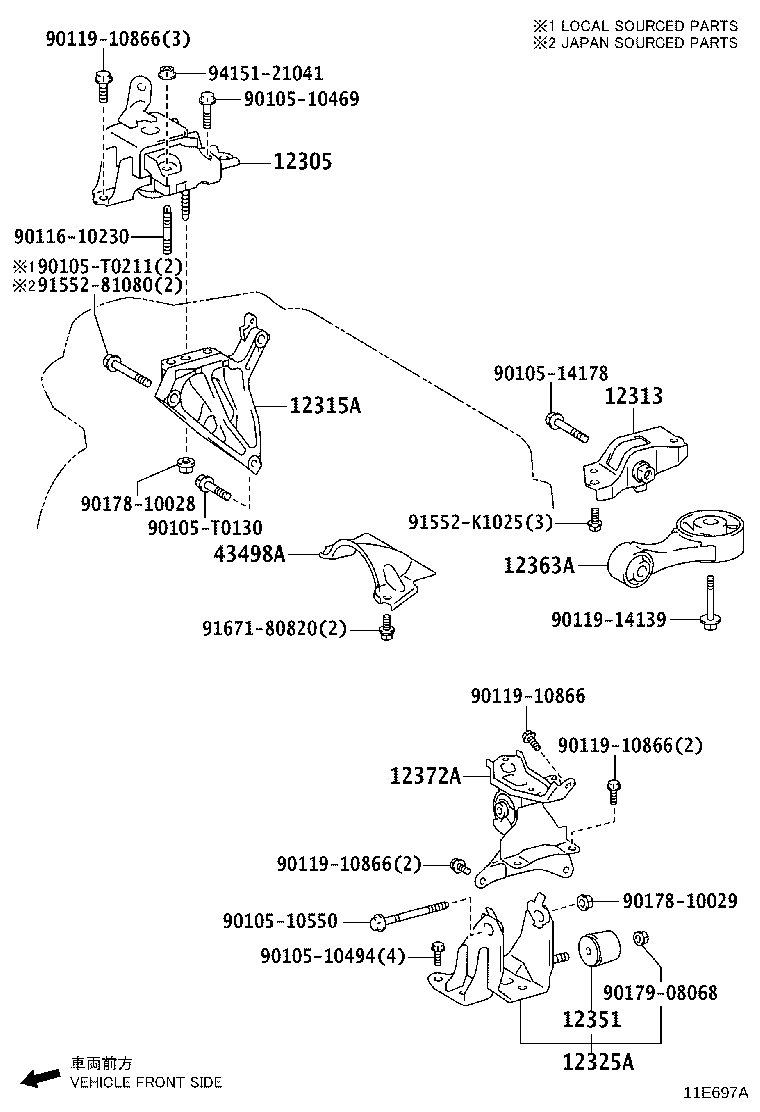

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12313 | Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE) |
| 12315A | Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12325A | Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12351 | Damper, Engine Mounting |
| 12363A | Rod, Engine Moving Control |
| 12364B | Rod, Engine Moving Control, NO.2 |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 43498A | Insulator, Drive Shaft Heat, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
