Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

5 part groups · 2 illustrations

Illustrations

Figure 17A973C

17A973C 2019-11 → —

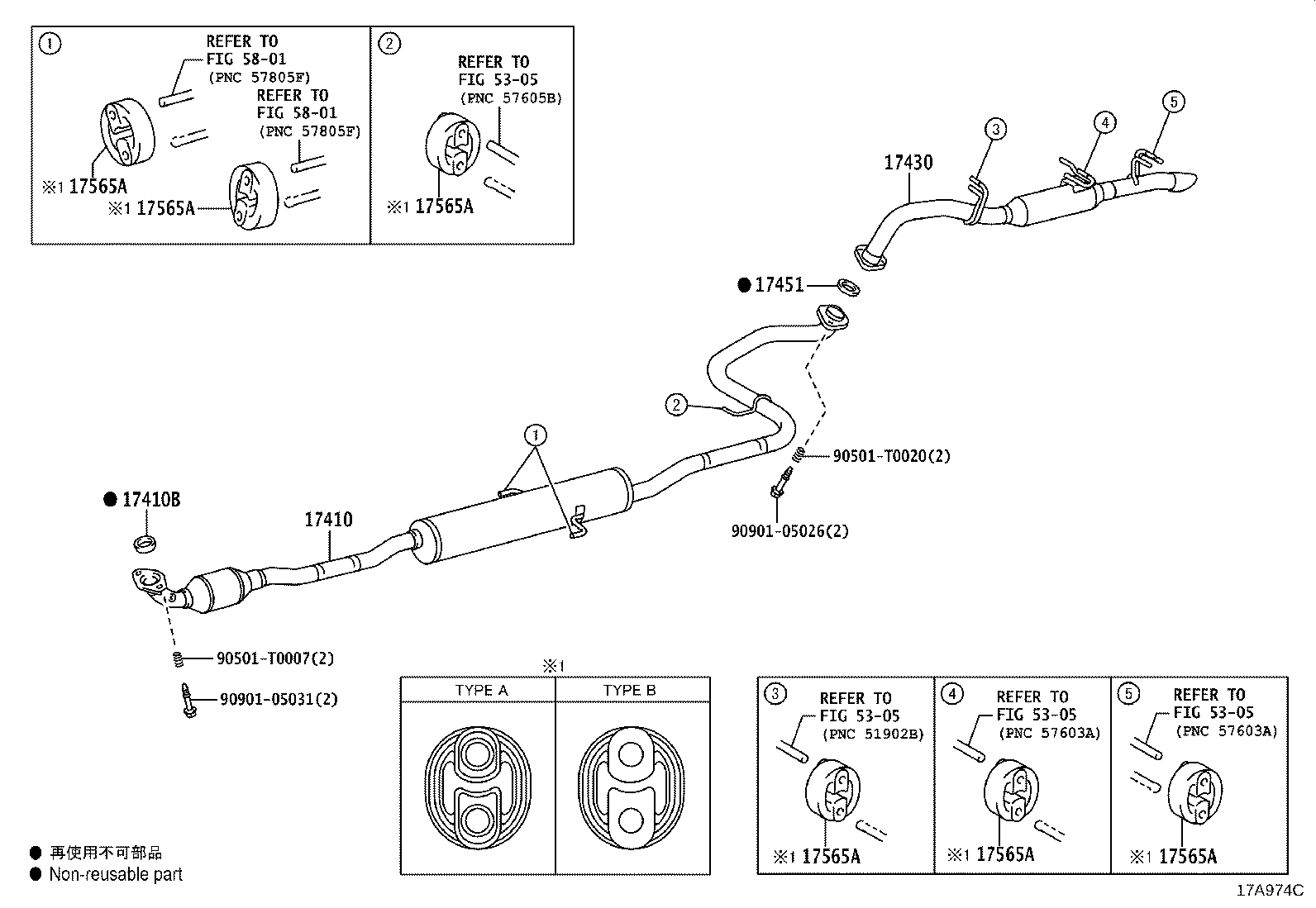

Figure 17A974C

17A974C 2019-11 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
