Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12

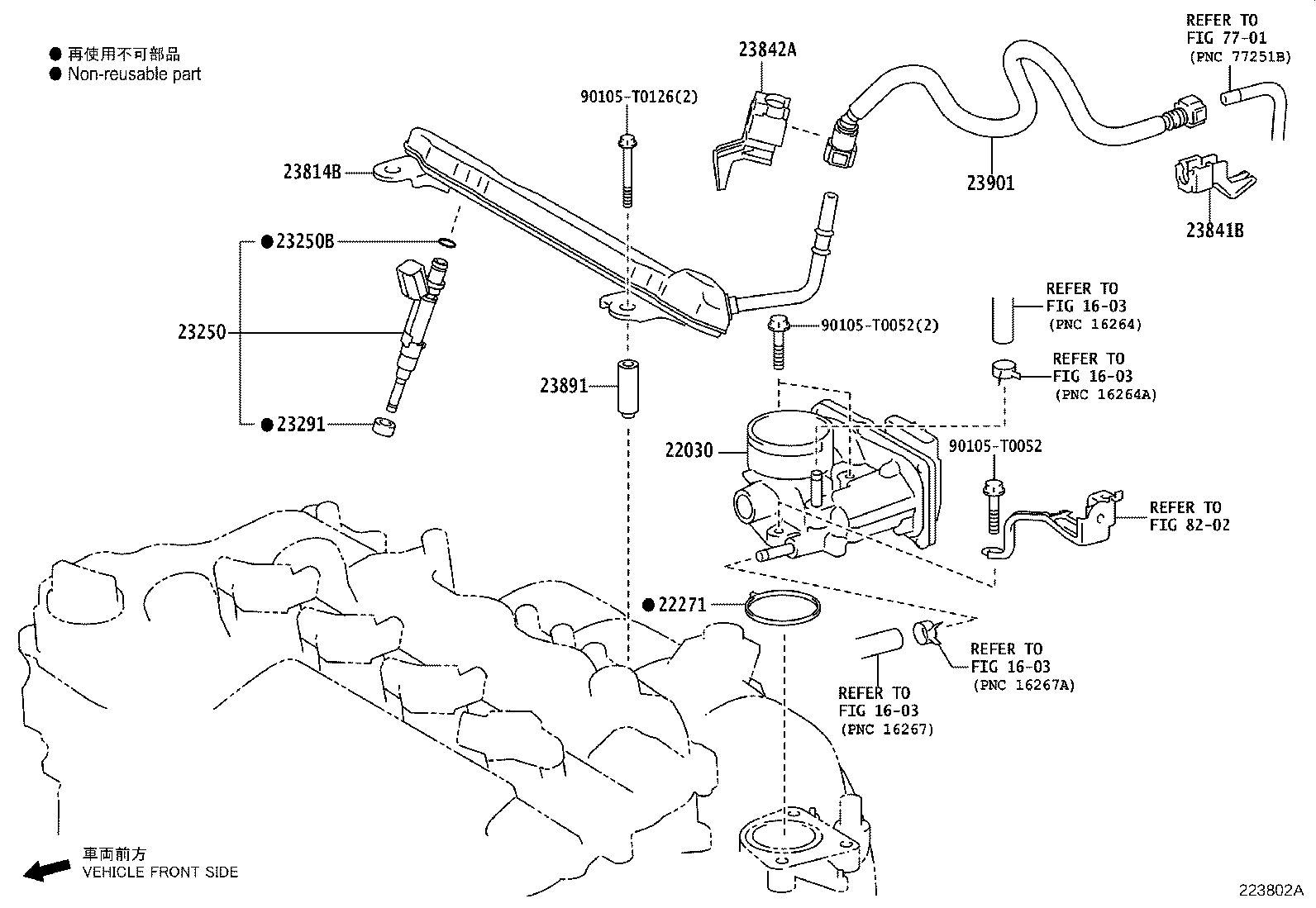

Fuel Injection System
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22271 | Gasket, Throttle Body |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23291 | Insulator, Injector Vibration |
| 23814B | Pipe, Fuel Delivery |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23891 | Spacer, Fuel Delivery |
| 23901 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
