Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12

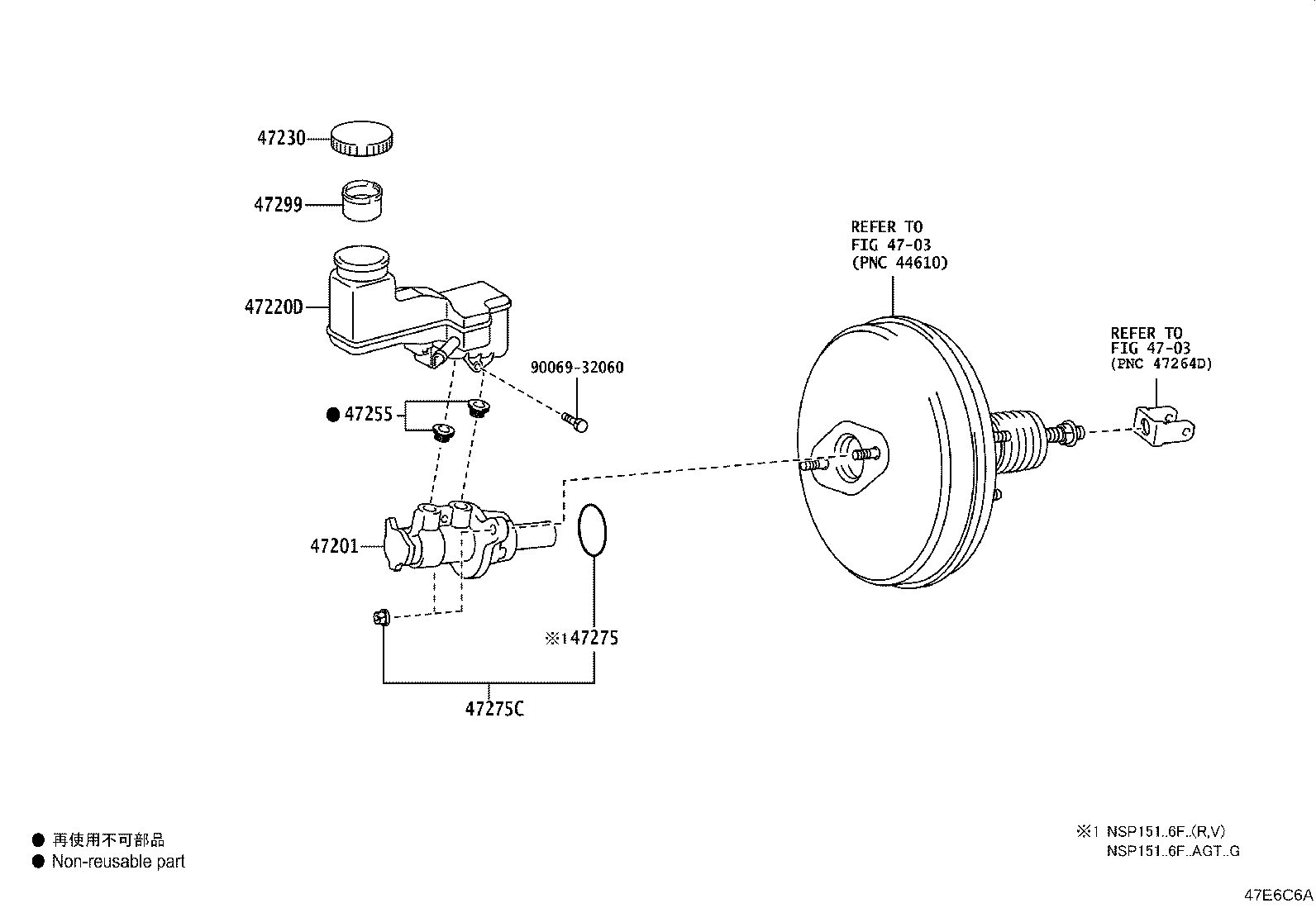

Brake Master Cylinder
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47201 | Cylinder Sub-assy, Brake Master |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47275 | Gasket, Brake Master Cylinder |
| 47275C | Overhaul Set, Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
