Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

10 part groups · 2 illustrations

Illustrations

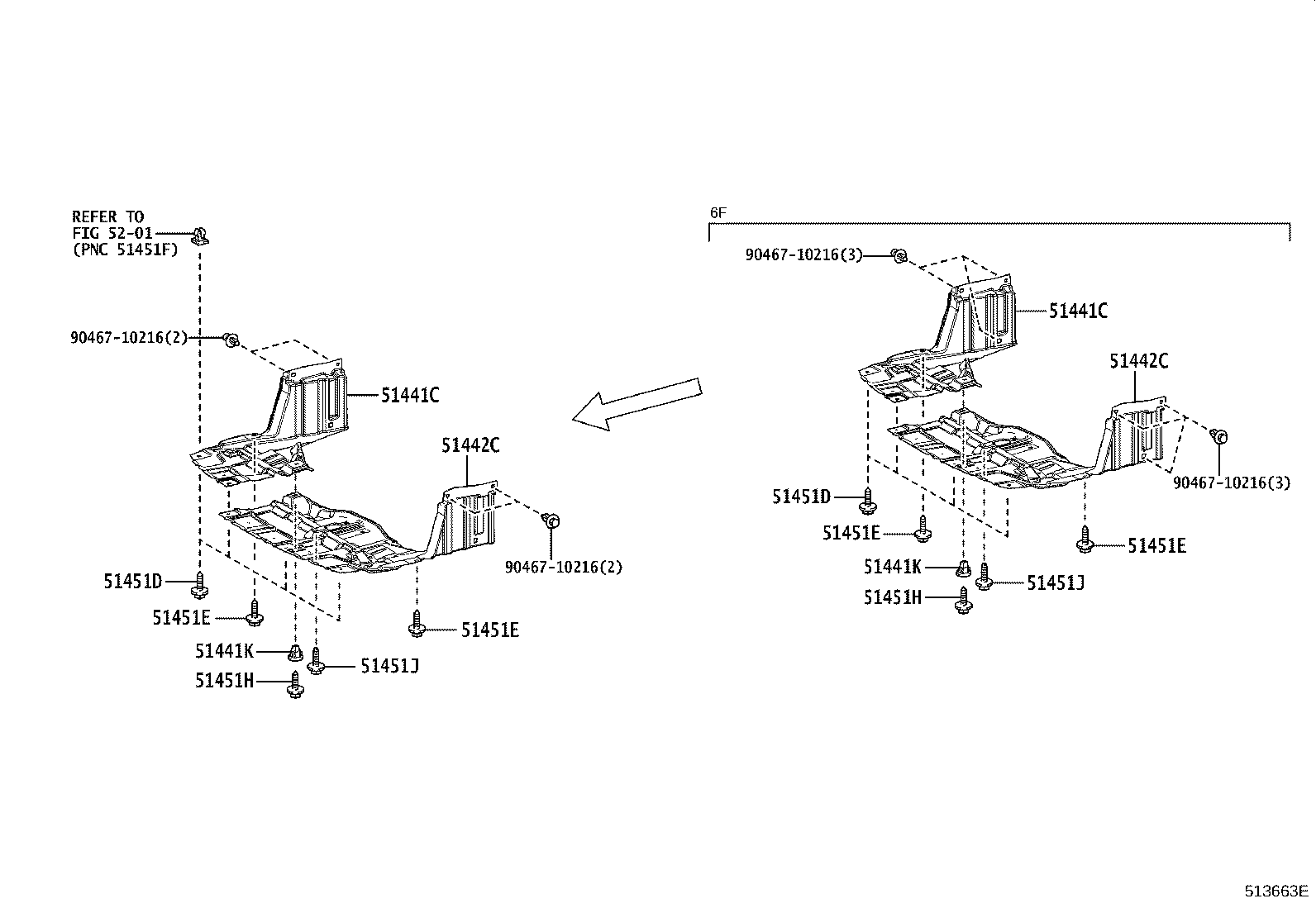

Figure 513662A 513662A 2019-11 → — Figure 513663E 513663E 2019-11 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51441C Cover, Engine Under, RH
51441K Grommet(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51451E Screw, NO.2
51451H Screw, NO.3
51451J Bolt, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
