Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12

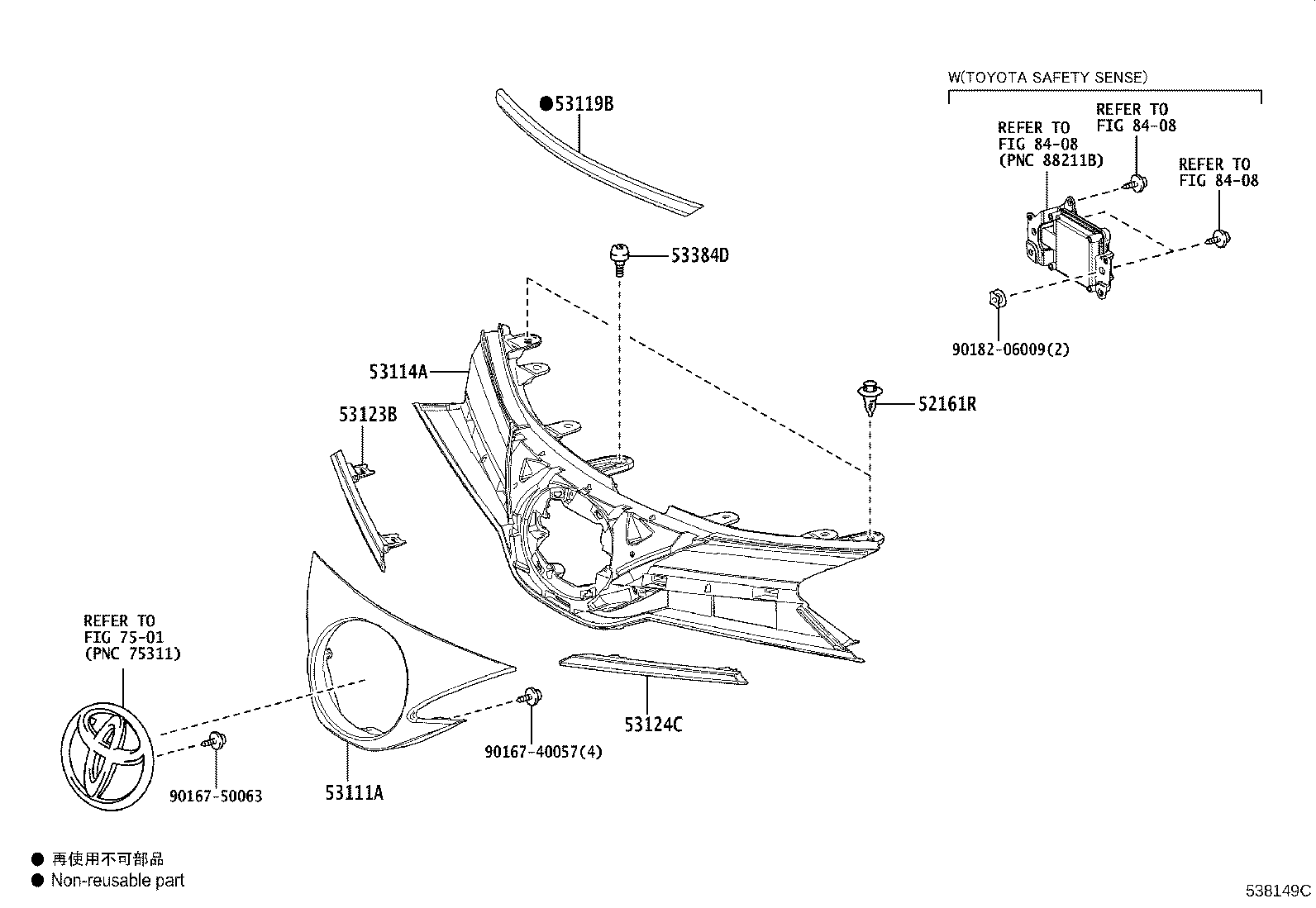

Radiator Grille
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161R | Piece, Front Bumper |
| 53111A | Grille, Radiator, Outside |
| 53114A | Grille, Radiator, Inner |
| 53119B | Protector, Radiator Grille |
| 53123B | Moulding, Radiator Grille Side, RH |
| 53124C | Moulding, Radiator Grille, Upper LH |
| 53384D | Cushion, Hood, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
