Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12

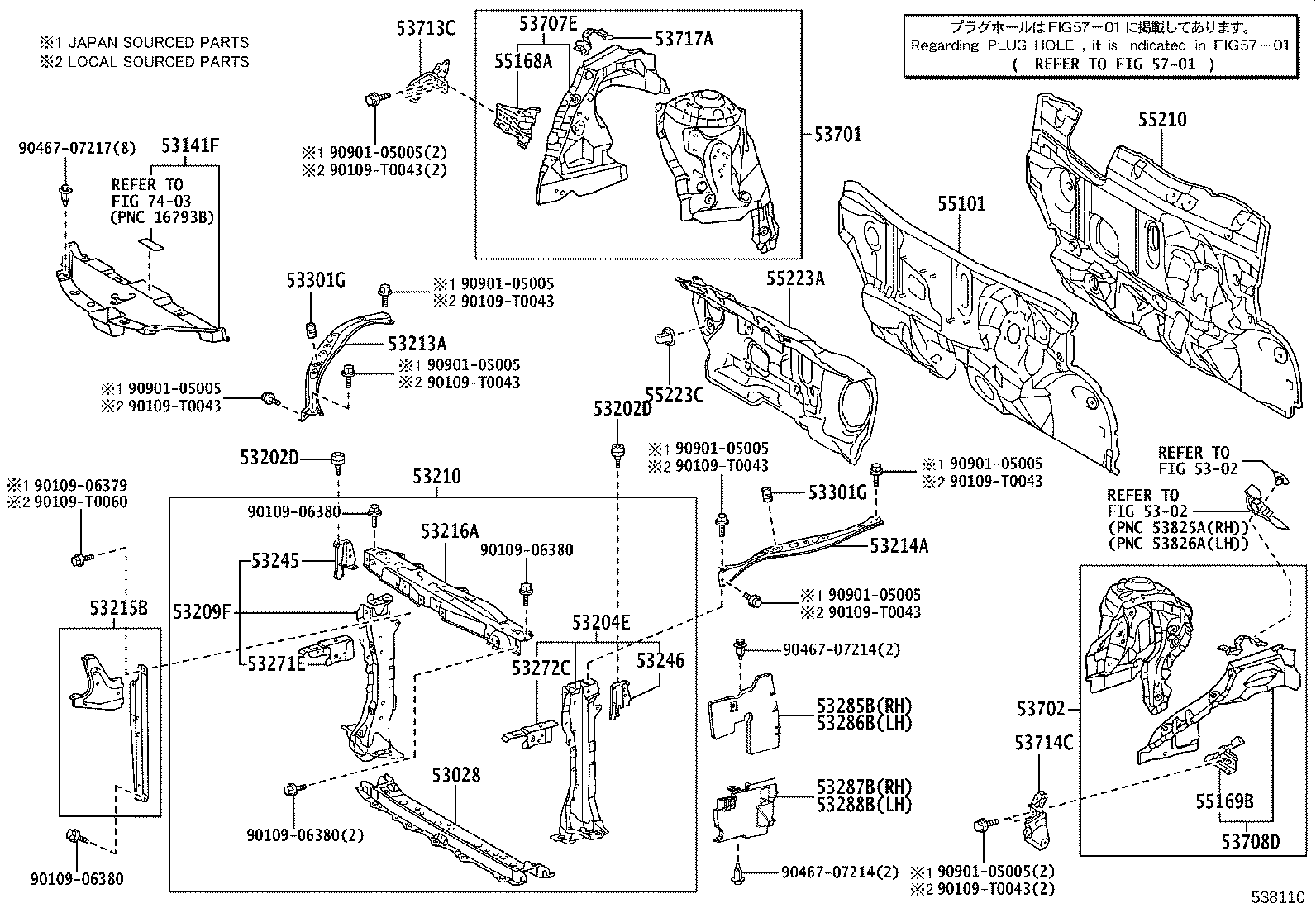

Front Fender Apron & Dash Panel
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53028 | Support Sub-assy, Radiator, Lower |
| 53141F | Cover, Radiator |
| 53202D | Cushion, Radiator Support |
| 53204E | Brace Sub-assy, Radiator Support TO Crossmember, LH |
| 53209F | Brace Sub-assy, Radiator Support TO Crossmember, RH |
| 53210 | Support Assy, Radiator |
| 53213A | Support, Radiator, Upper RH |
| 53214A | Support, Radiator, Upper LH |
| 53215B | Support, Hood Lock |
| 53216A | Support, Radiator, Upper |
| 53245 | Bracket, Headlamp, RH |
| 53246 | Bracket, Headlamp, LH |
| 53271E | Bracket, Headlamp Mounting, RH |
| 53272C | Bracket, Headlamp Mounting, LH |
| 53285B | Seal, Radiator Side Air, NO.1 |
| 53286B | Seal, Radiator Side Air, NO.2 |
| 53287B | Extension, Radiator Support, RH |
| 53288B | Extension, Radiator Support, LH |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53707E | Apron Sub-assy, Fender Side, RH |
| 53708D | Apron Sub-assy, Fender Side, LH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53714C | Extension, Front Fender Apron, Front LH |
| 53717A | Plate, Fender Apron |
| 53718D | Gusset, Fender Apron, LH |
| 55101 | Panel Sub-assy, Dash |
| 55168A | Bracket, Front Fender Mounting, RH |
| 55169B | Bracket, Front Fender Mounting, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
