Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12

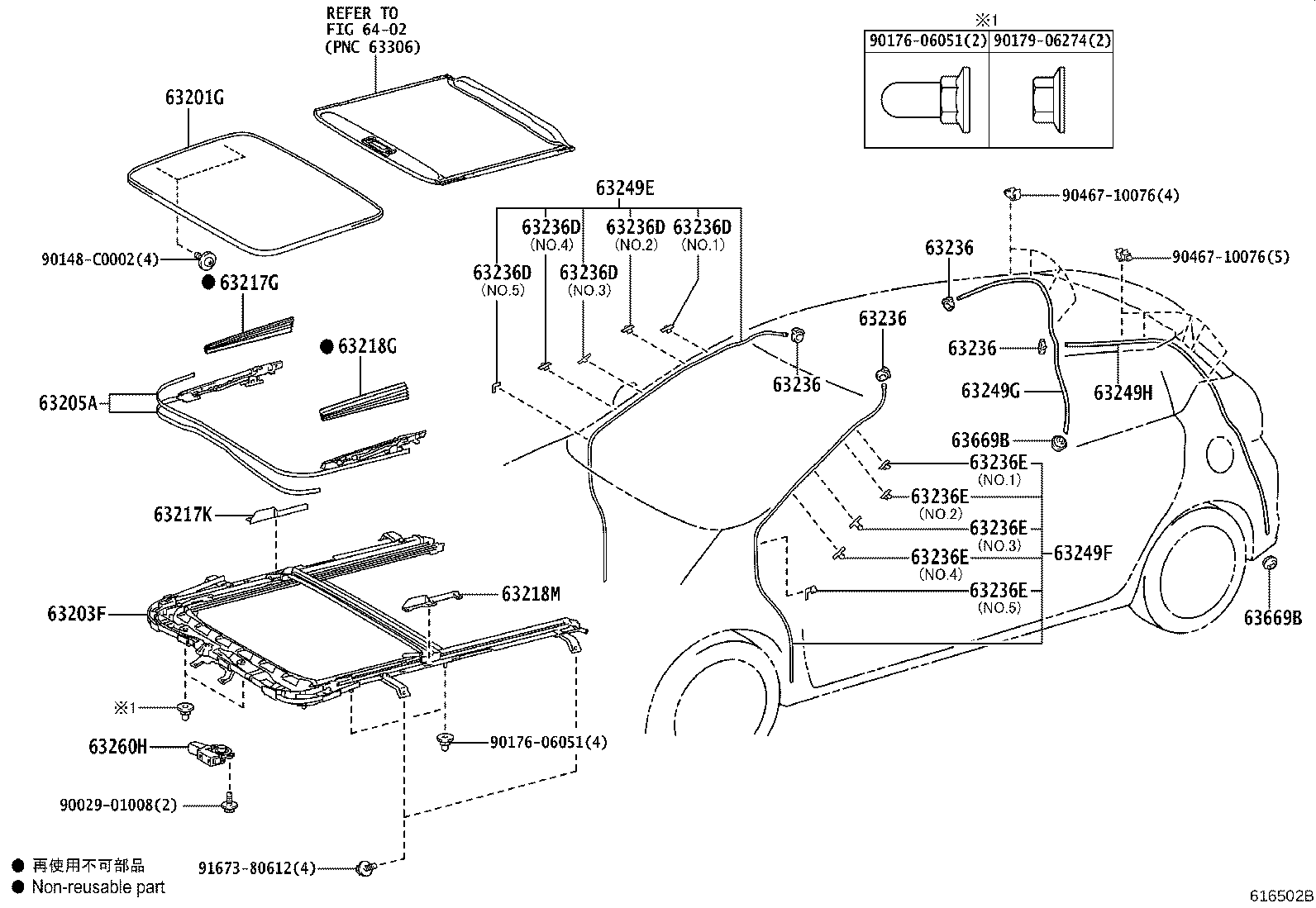

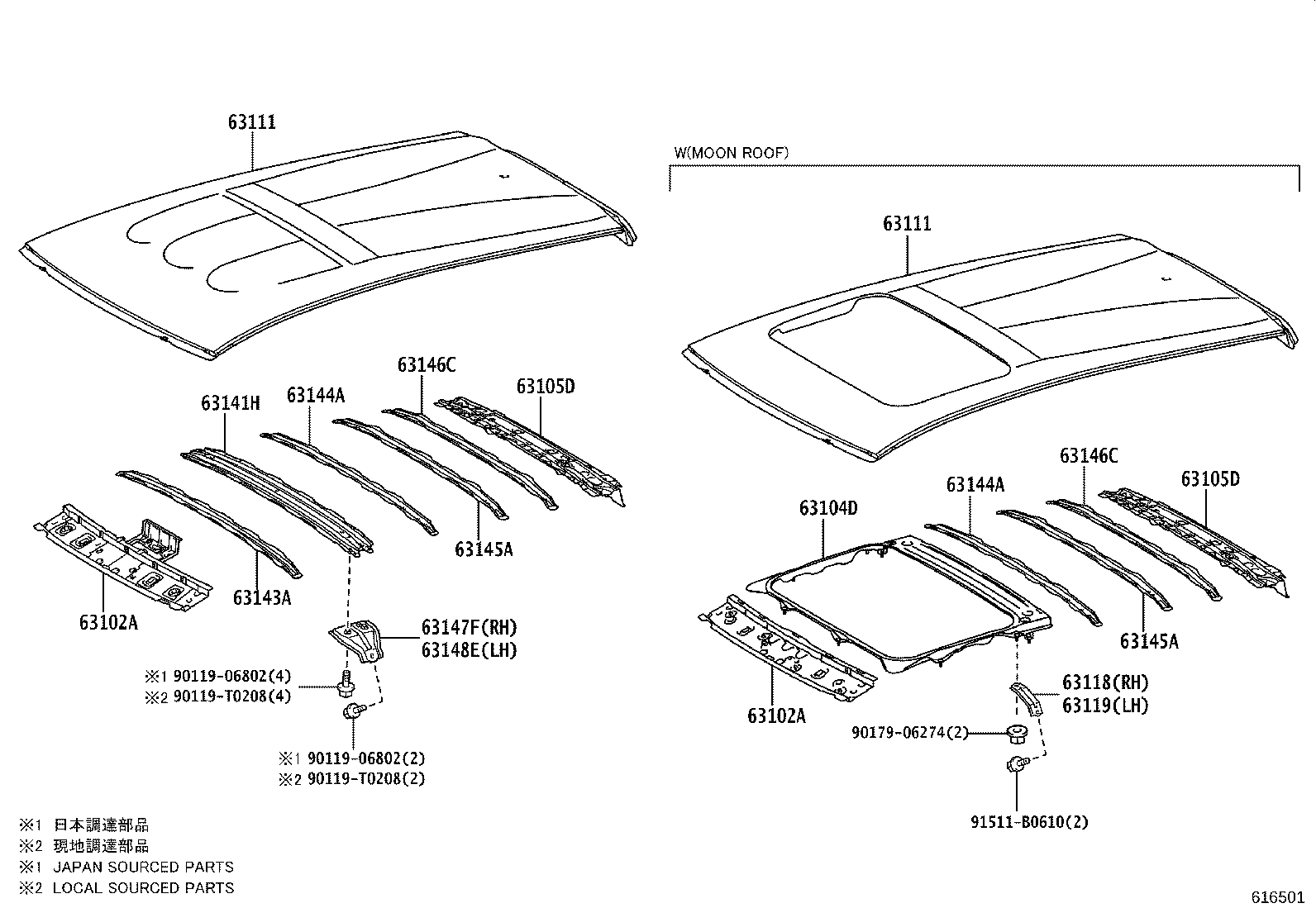

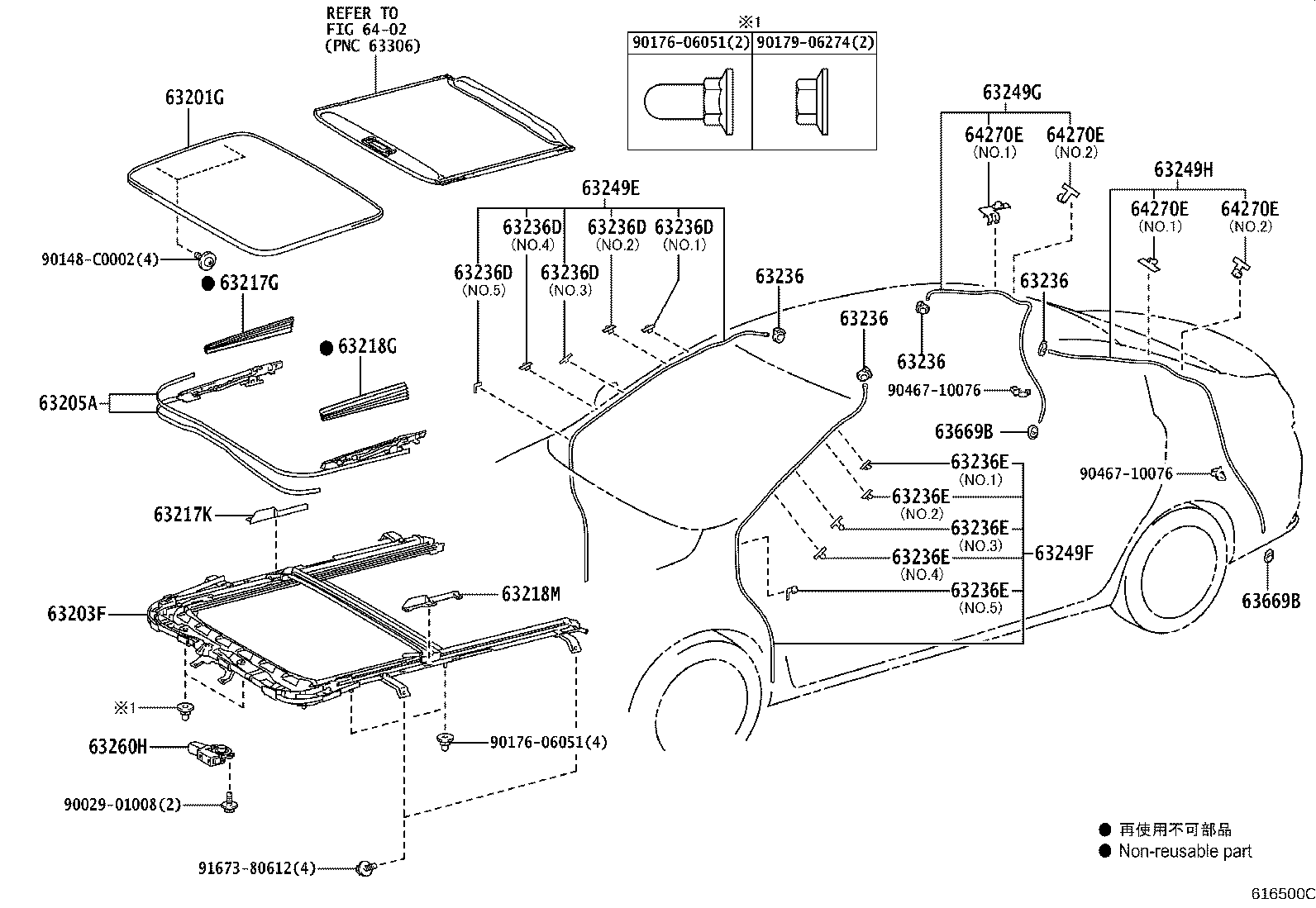

Roof Panel & Back Window Glass
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63133A | Frame, Back Window, Upper |
| 63141H | Reinforcement, Roof Panel, Center |
| 63143A | Reinforcement, Roof Panel |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63145A | Reinforcement, Roof Panel, NO.5 |
| 63146C | Reinforcement Sub-assy, Roof Panel, NO.6 |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63236E | Clamp, Sliding Roof Drain Hose |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63249G | Hose, Sliding Roof Drain |
| 63249H | Hose, Sliding Roof Drain |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63669B | Grommet, Sliding Roof Drain |
| 64101 | Panel Sub-assy, Upper Back |
| 64243 | Panel, Room Partition, NO.2 RH |
| 64244 | Panel, Room Partition, NO.2 LH |
| 64270E | Clip |
| 64811 | Glass, Back Window |
| 64813D | Dam, Back Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
