Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12

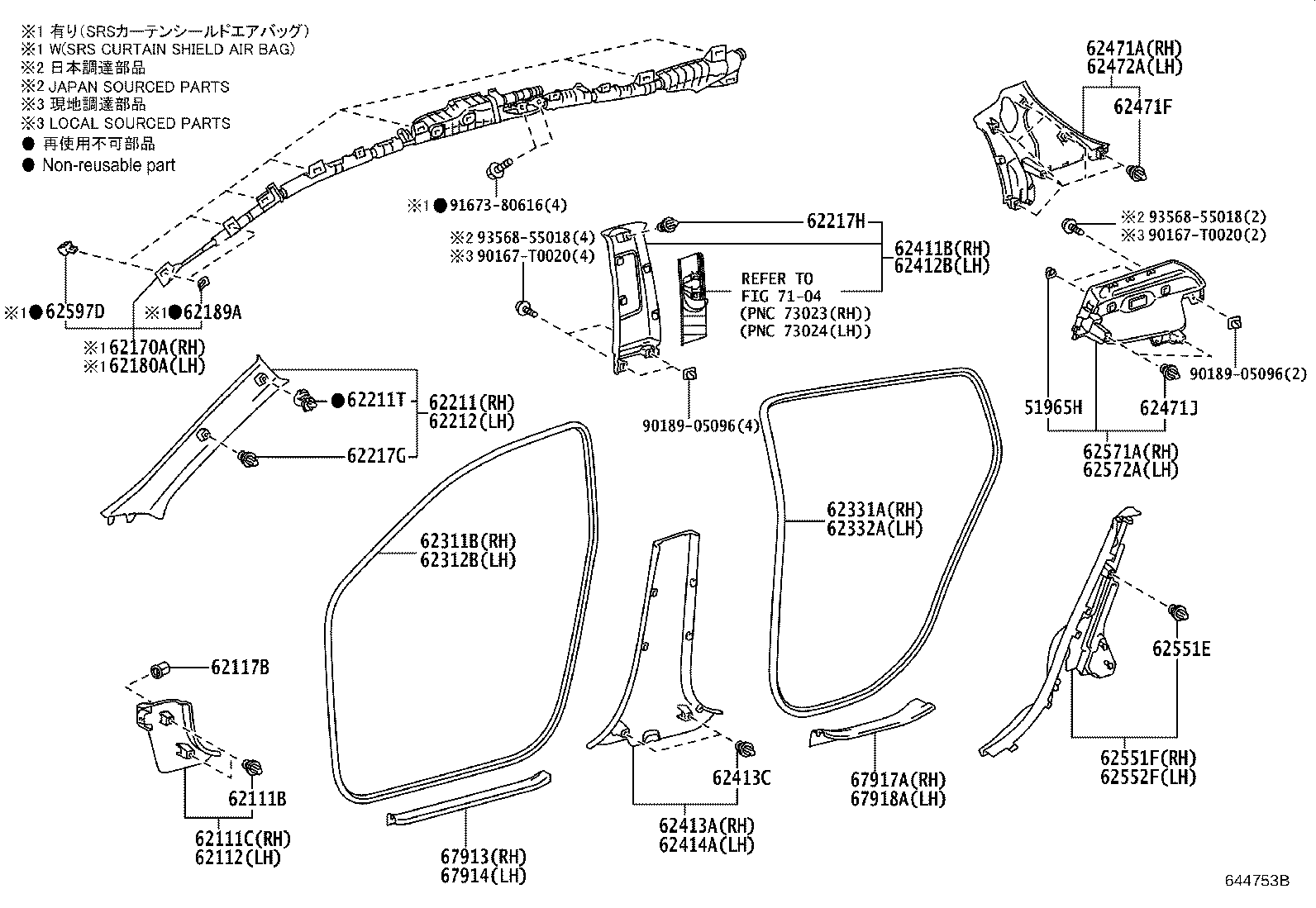

Inside Trim Board & Door Opening Trim Moulding
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51965H | Hook, Rear |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211 | Garnish, Front Pillar, RH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471F | Clip (FOR ROOF SIDE, INNER UPPER GARNISH) |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62545 | Silencer, Side Trim NO.1 |
| 62551E | Clip(FOR REAR SEAT SIDE GARNISH) |
| 62551F | Garnish, Rear Seat Side, RH |
| 62551G | Clip |
| 62552F | Garnish, Rear Seat Side, LH |
| 62571A | Garnish, Roof Side, Inner Lower RH |
| 62572A | Garnish, Roof Side Inner Lower LH |
| 62597D | Clip |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
