Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

11 part groups · 3 illustrations

Illustrations

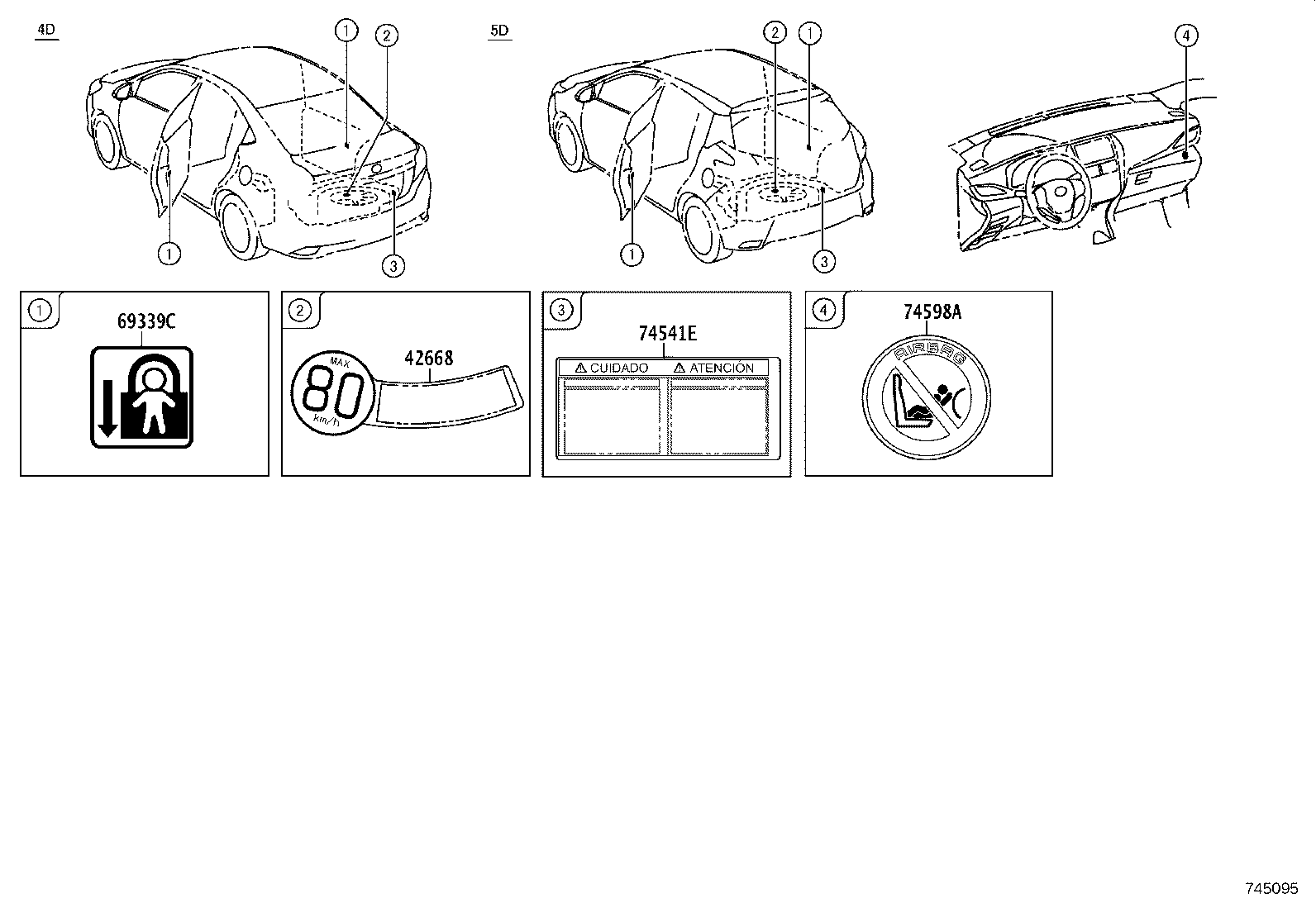

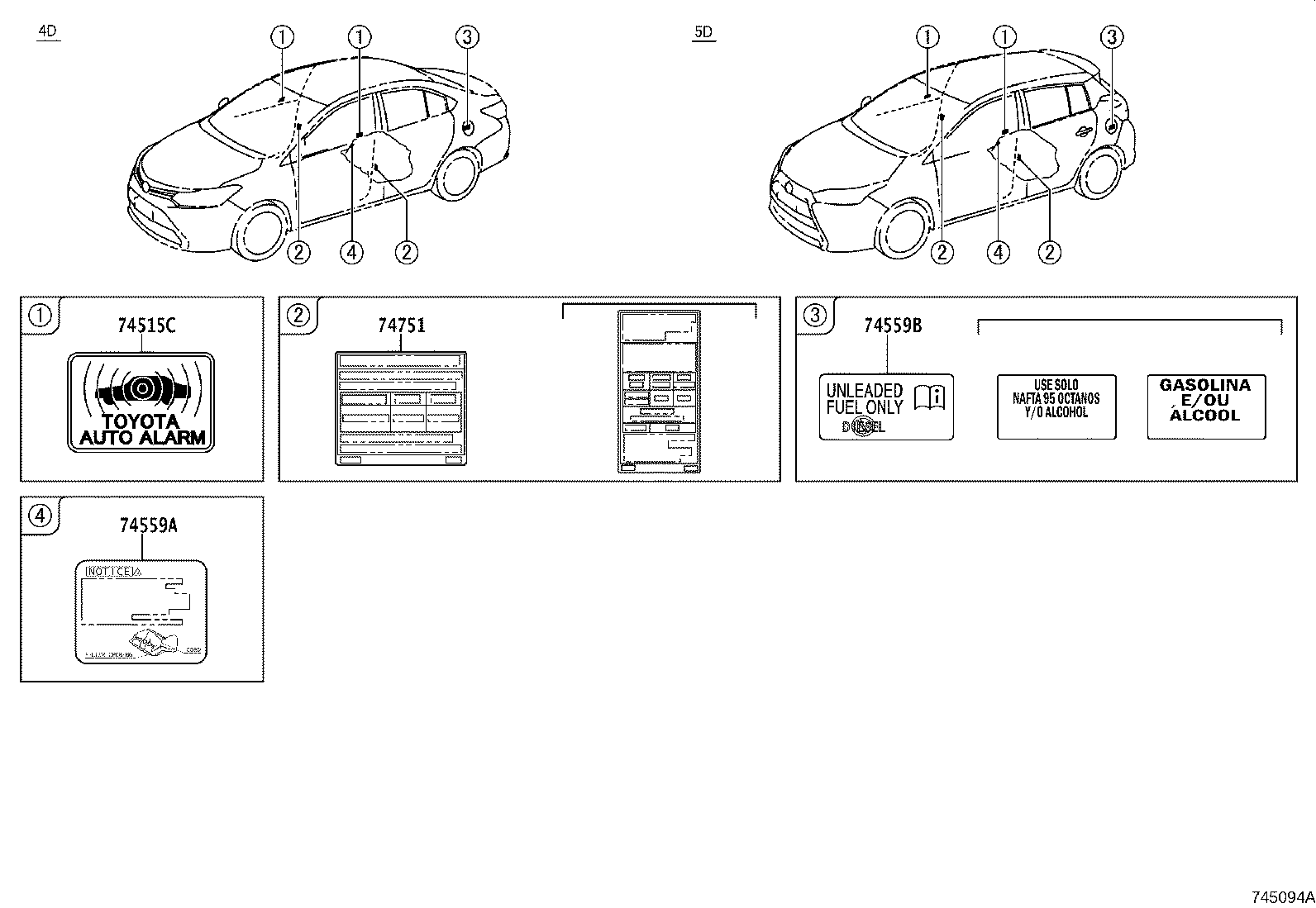

Figure 745093 745093 2019-11 → — Figure 745094A 745094A 2019-11 → — Figure 745095 745095 2019-11 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
16793B Label, Cooling Fan Information
42668 Label, Compact Spare Tire Caution
69339C Label, Child Protector Information
74515C Label, Theft Warning Information
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
