Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

7 part groups · 2 illustrations

Illustrations

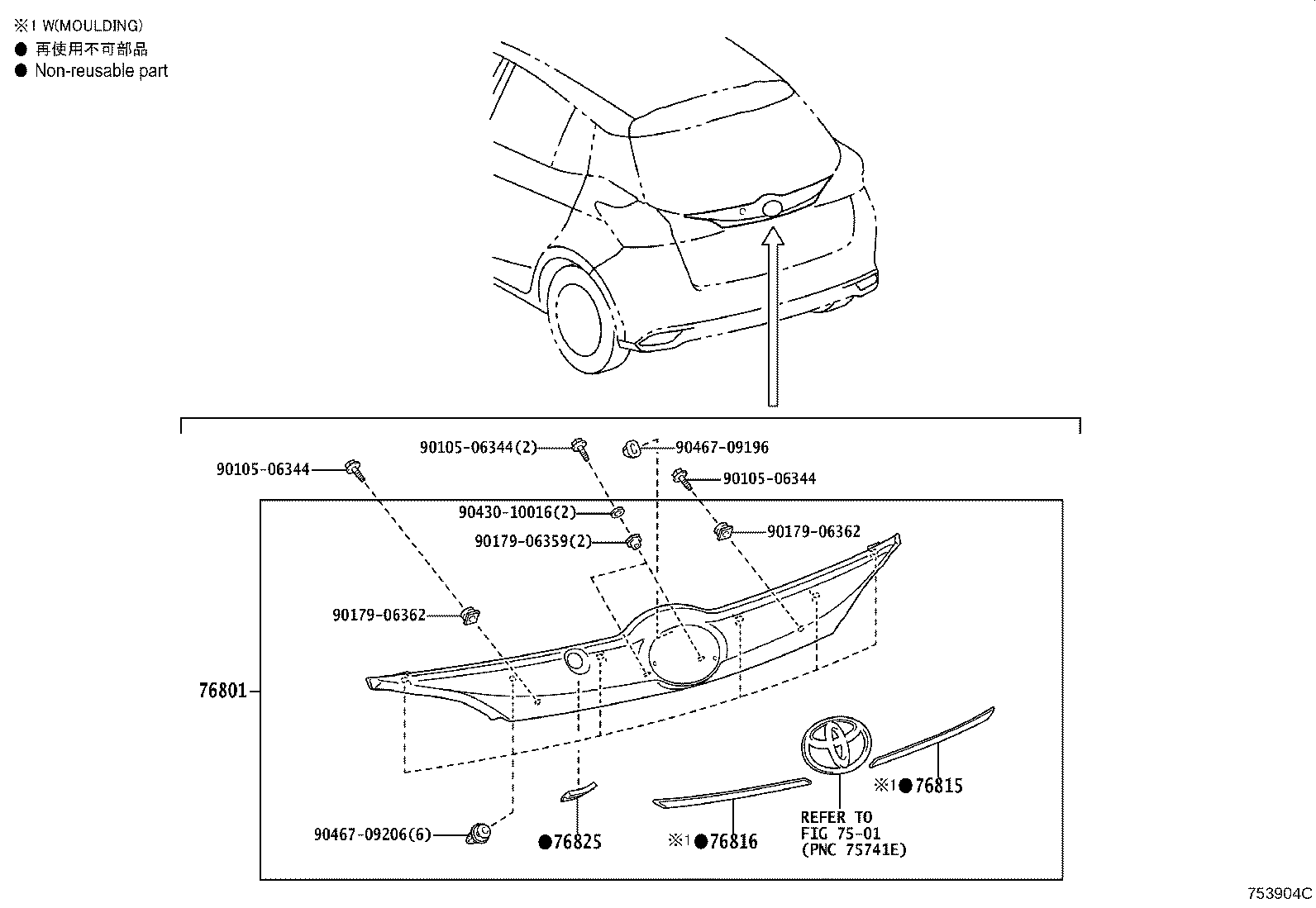

Figure 753903A 753903A 2019-11 → — Figure 753904C 753904C 2019-11 → —

Part groups

PNCDescription
75825 Pad, Luggage Compartment Door Moulding
75895H Tape, Moulding, NO.1
76801 Garnish Sub-assy, Back Door, Outside
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76815 Moulding, Back Door Outside Garnish, Lower RH
76816 Moulding, Back Door Outside Garnish, Lower LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
