Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12
Mudguard & Spoiler

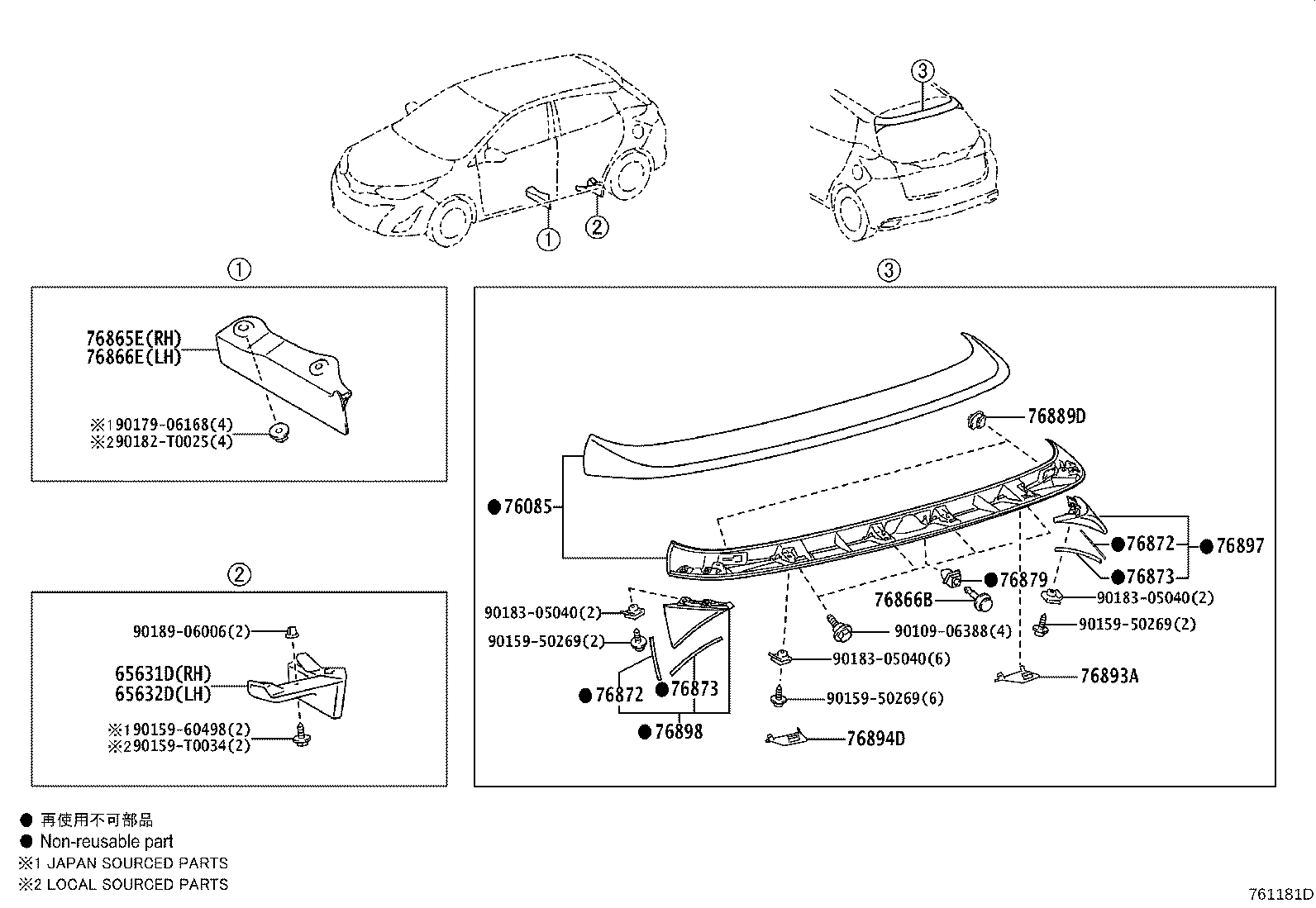

14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 76085 | Spoiler Sub-assy, Rear |
| 76865E | Protector, Rocker Panel Moulding, NO.5 |
| 76866B | Retainer, Rear Spoiler, NO.2 |
| 76866E | Protector, Rocker Panel Moulding, NO.6 |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76889D | Clip, Rear Spoiler, NO.2 |
| 76893A | Cover, Rear Spoiler, RH |
| 76894D | Cover, Rear Spoiler, LH |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
