Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12

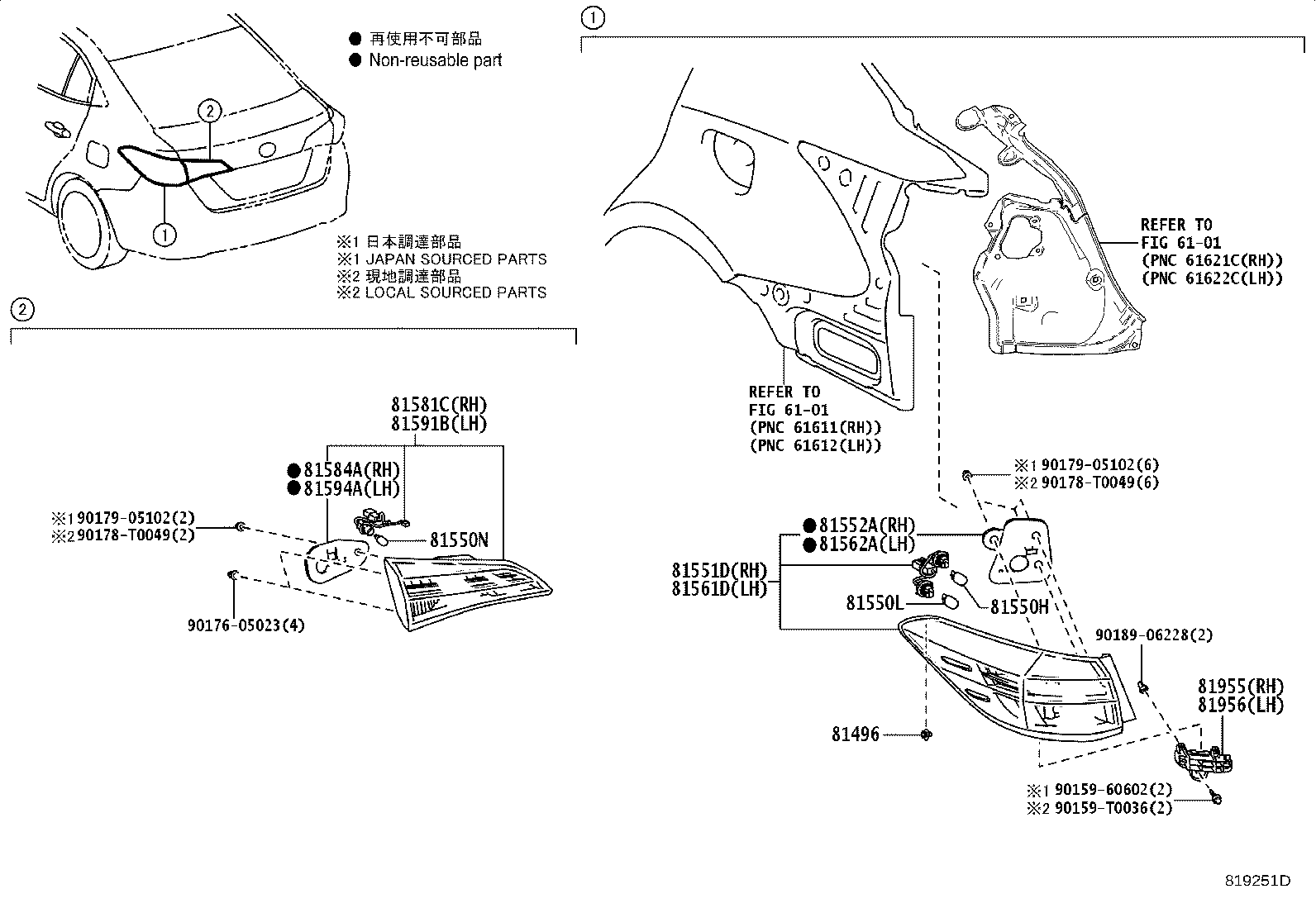

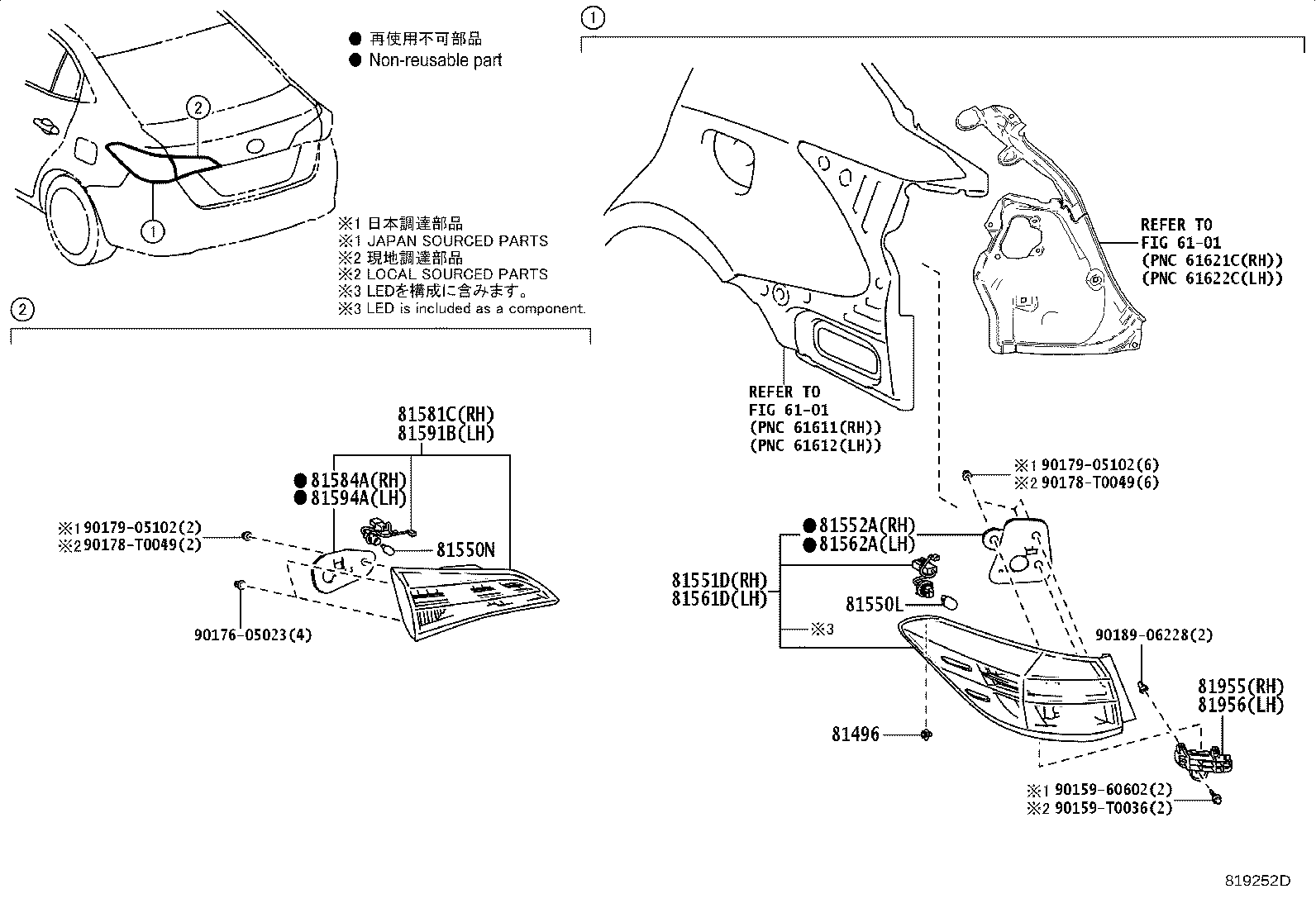

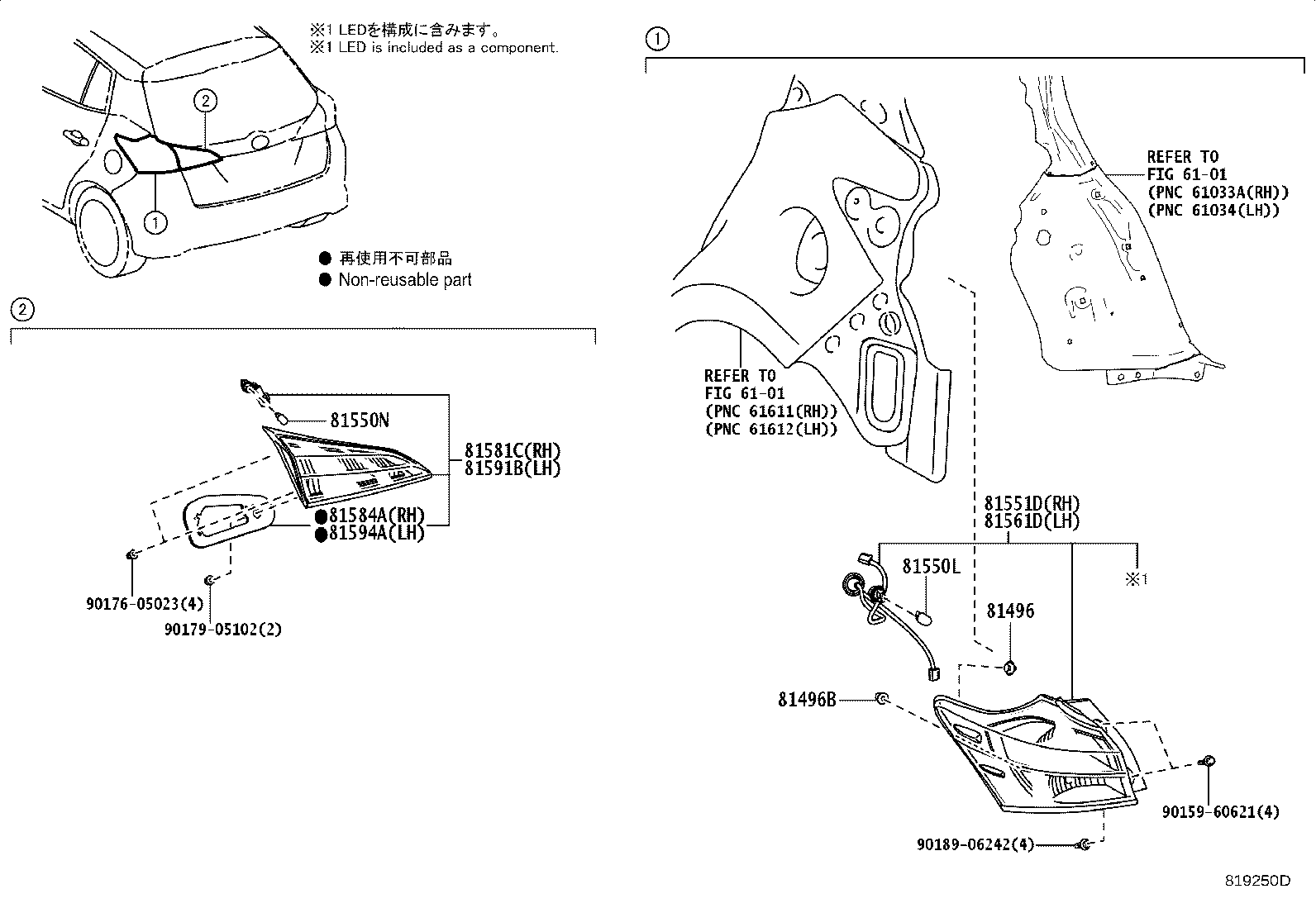

Rear Combination Lamp
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496B | Guide, Rear Lamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
| 81955 | Retainer, Rear Combination Lamp, RH |
| 81956 | Retainer, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
