Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 2 illustrations

Illustrations

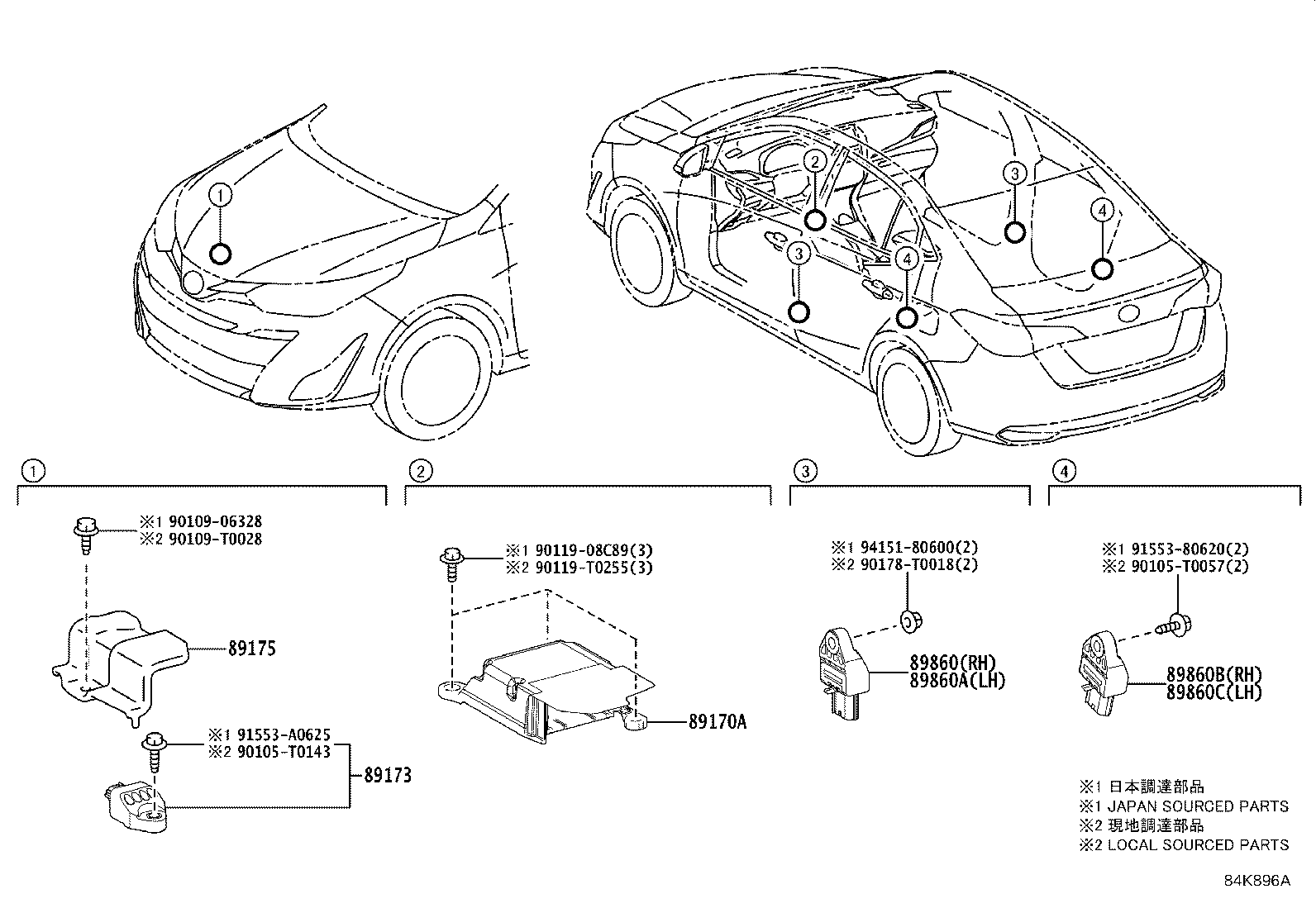

Figure 84K894A 84K894A 2019-11 → — Figure 84K896A 84K896A 2019-11 → —

Part groups

PNCDescription
89170A Computer Assy, Airbag
89173 Sensor, Airbag, Front
89175 Bracket, Airbag Sensor
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
89860B Sensor Assy, Side Airbag, RH, NO.2
89860C Sensor Assy, Side Airbag, LH, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
