Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 2 illustrations

Illustrations

Figure 867907B

867907B 2019-11 → —

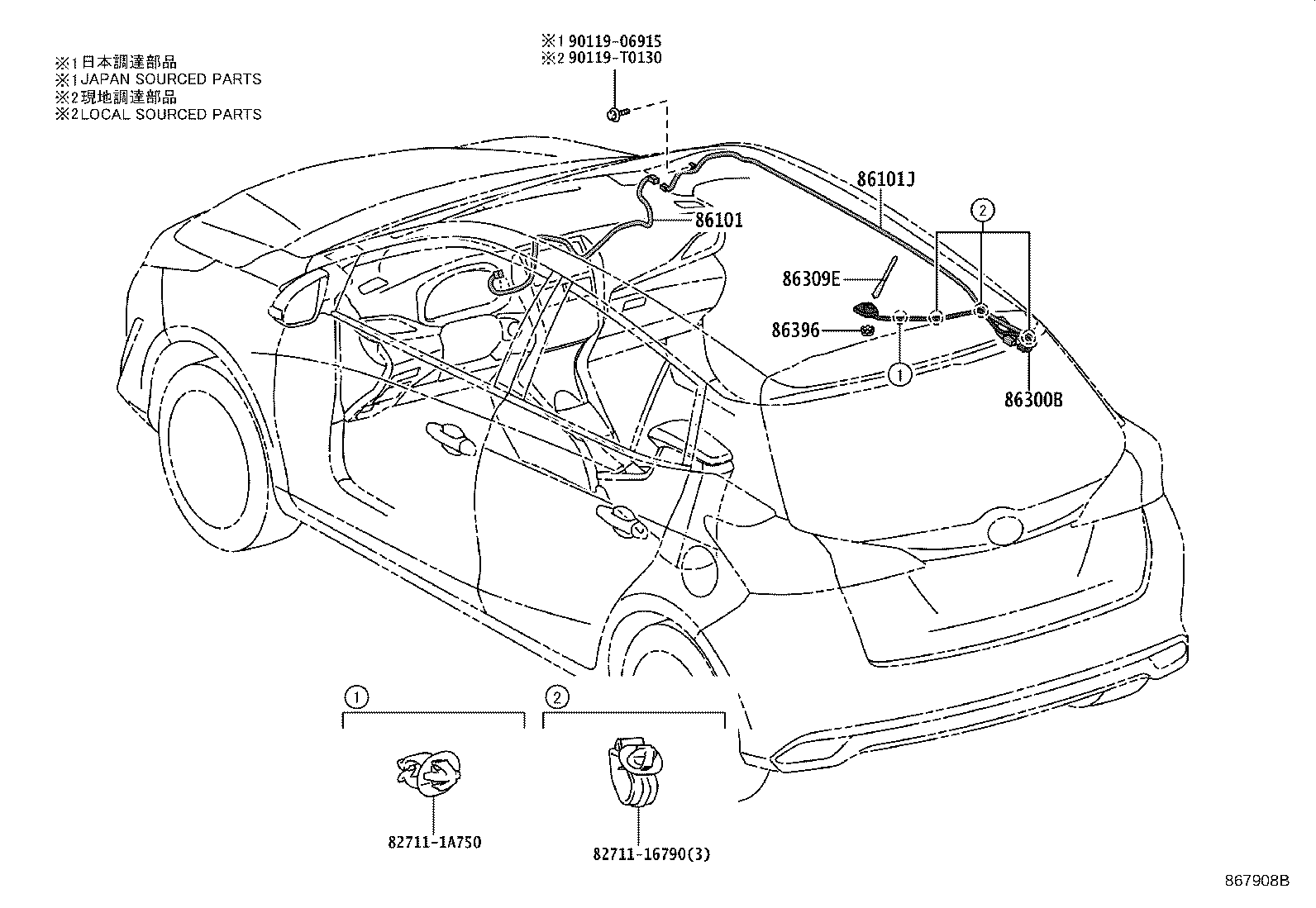

Figure 867908B

867908B 2019-11 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86300B	Antenna Assy, Amplifier, NO.1
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
