Toyota Yaris
2019-11 → present · chassis NSP15# · catalogue 14B310 · General
Supported model
Data version 2021-12

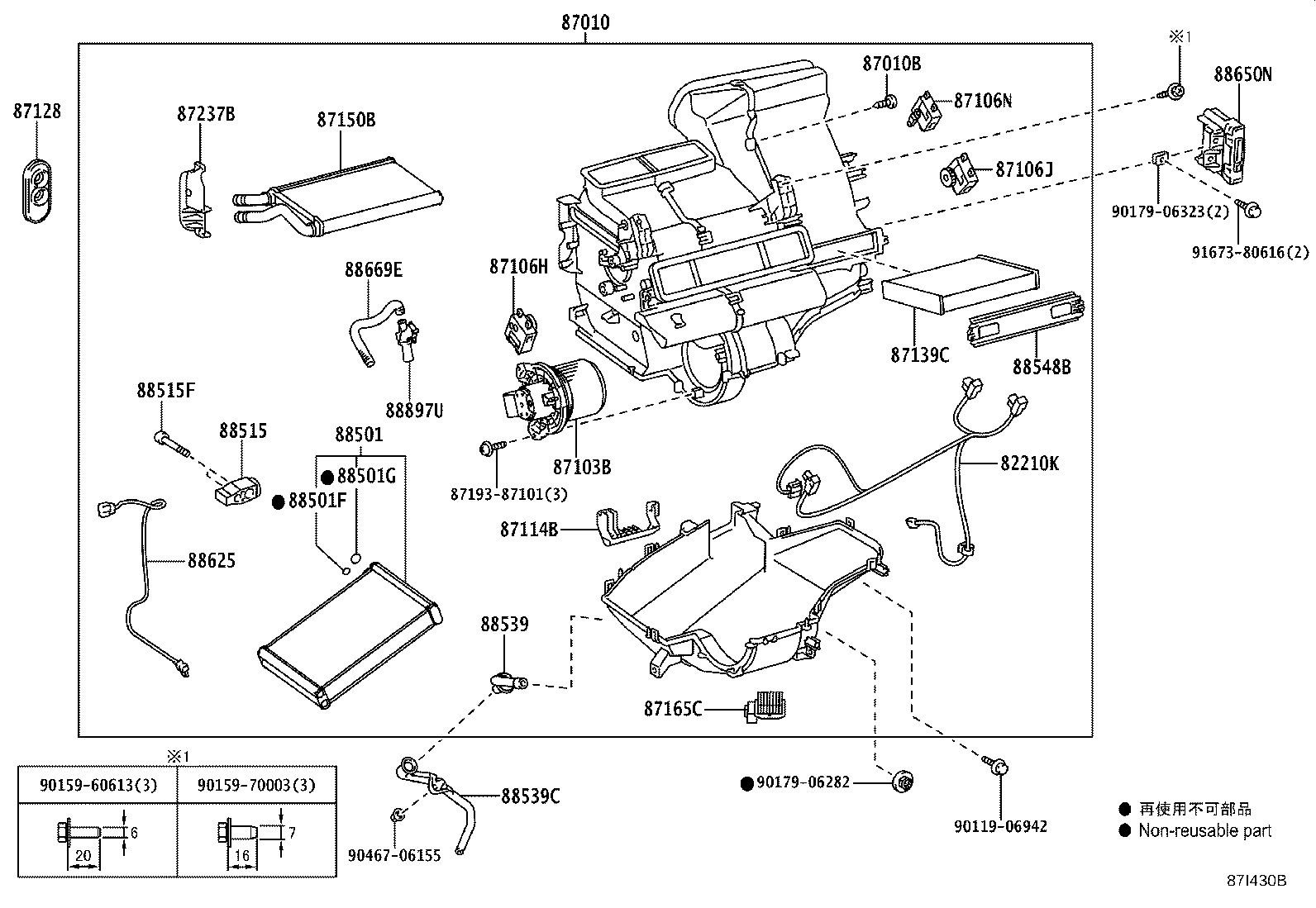

Heating & Air Conditioning - Cooler Unit
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87010 | Unit Assy, Air Conditioner |
| 87010B | Screw(FOR AIR CONDITIONER UNIT) |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106N | Servo Sub-assy, Damper(FOR RECIRCULATION) |
| 87114B | Cover, Heater |
| 87124B | Clamp, Heater |
| 87128 | Grommet, Heater |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87150B | Radiator Assy, Heater |
| 87165C | Control, Blower Motor |
| 87237B | Cover, Heater Piping |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501F | O-ring, Cooler Evaporator NO.1(DISCHARGE) |
| 88501G | O-ring, Cooler Evaporator NO.1(SUCTION) |
| 88515 | Valve, Cooler Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88548B | Case, Air Filter |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88669E | Hose, Air |
| 88897U | Pipe, Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
