Toyota Vios

2019-11 → present · chassis NSP15# · catalogue 14C310 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

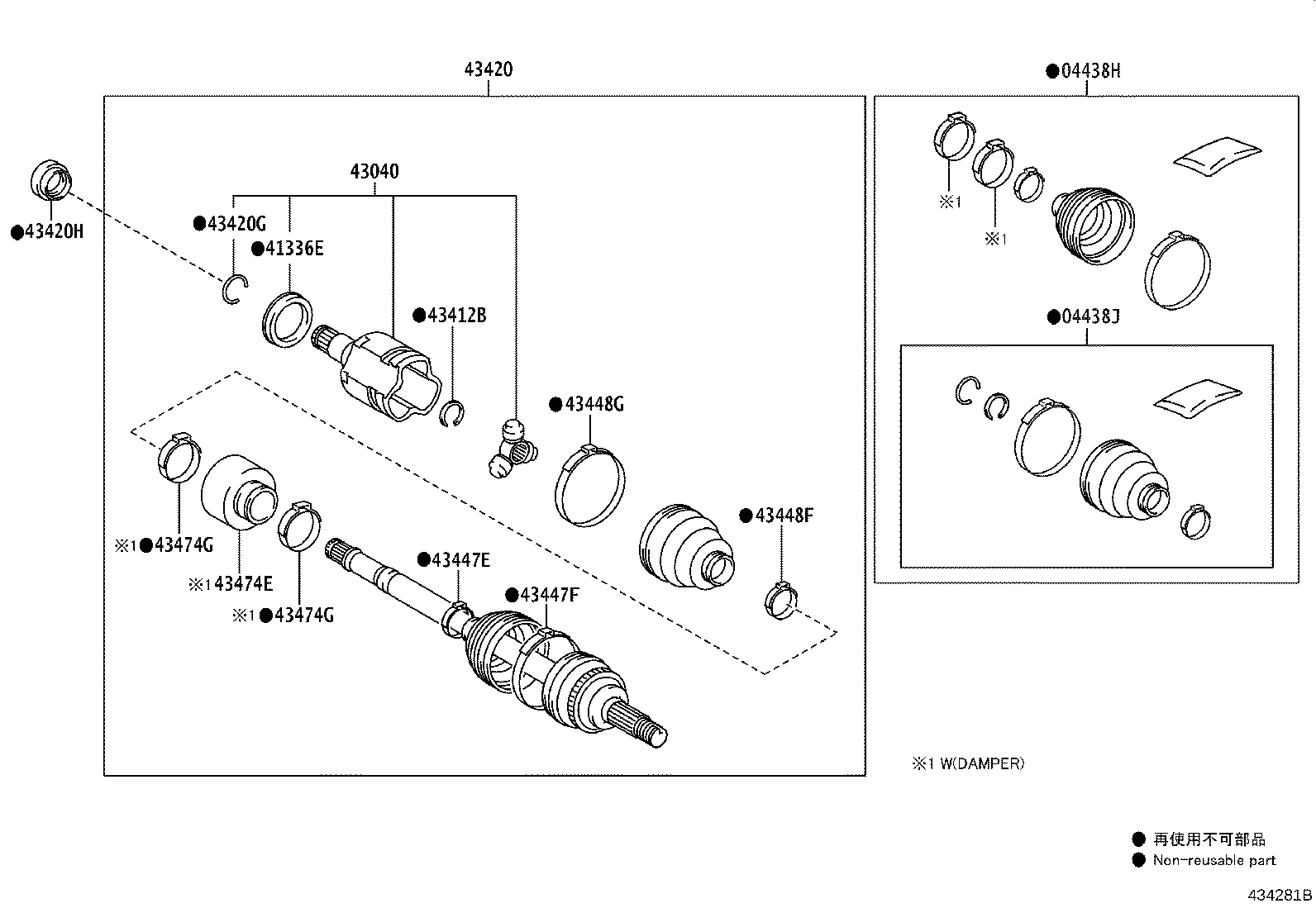

Exploded illustration 434281B 43420 — SHAFT ASSY, FRONT DRIVE, LH (3 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (2 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (2 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (2 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (2 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (3 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (2 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (1 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (1 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (1 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (6 parts)
434281B · 15 callouts Full size ↗
32 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-0D331 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-11 → —
NSP150 —
04428-0D331 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-11 → 2024-05 ended
NSP151 5F —
04428-0D371 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-11 → 2024-05 ended
NSP151 CVT —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-0D250 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-11 → 2024-05 ended
NSP151 —
04437-0D250 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-11 → —
NSP150 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-0D120 Cover, Front Drive Shaft Dust, LH
2019-11 → 2024-05 ended
NSP151 —
41336-0D120 Cover, Front Drive Shaft Dust, LH
2019-11 → —
NSP150 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-0D030 Joint Assy, Front Drive Inboard, LH
2019-11 → 2024-05 ended
NSP151 —
43040-0D030 Joint Assy, Front Drive Inboard, LH
2019-11 → —
NSP150 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-0D380 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-11 → —
NSP150 —
43425-0D380 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-11 → 2024-05 ended
NSP151 —
43420 — Shaft Assy, Front Drive, LH
43420-0D280 Shaft Assy, Front Drive, LH
2019-11 → 2024-05 ended
NSP151 5F —
43420-0D280 Shaft Assy, Front Drive, LH
2019-11 → —
NSP150 —
43420-0D560 Shaft Assy, Front Drive, LH
2019-11 → 2024-05 ended
NSP151 CVT —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43425-0D390 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2019-11 → 2024-05 ended
NSP151 —
43425-0D390 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2019-11 → —
NSP150 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-34044 Oil Seal, Front Drive Shaft, LH
2019-11 → —
NSP150 CVT —
90311-34051 Oil Seal, Front Drive Shaft, LH
2019-11 → 2021-10 ended
NSP151 CVT —
90311-34057 Oil Seal, Front Drive Shaft, LH
2021-10 → 2024-05 ended
NSP151 CVT —
90311-T0077 Oil Seal, Front Drive Shaft, LH
2019-11 → 2020-04 ended
NSP15# 5F —
90311-T0103 Oil Seal, Front Drive Shaft, LH
2020-04 → 2024-05 ended
NSP151 5F —
90311-T0103 Oil Seal, Front Drive Shaft, LH
2020-04 → —
NSP150 5F —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0DA70 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-11 → 2024-05 ended
NSP151 —
42345-0DA70 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-11 → —
NSP150 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-0DA80 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-11 → 2024-05 ended
NSP151 —
42345-0DA80 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2019-11 → —
NSP150 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0DA70 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-11 → 2024-05 ended
NSP151 —
42345-0DA70 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-11 → —
NSP150 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-0DA60 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-11 → 2024-05 ended
NSP151 —
42345-0DA60 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2019-11 → —
NSP150 —
43474E — Damper, Front Drive Shaft, LH
43474-0D300 Damper, Front Drive Shaft, LH
2019-11 → 2024-05 ended
NSP151 CVT —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-0DB40 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2019-11 → 2024-05 ended
NSP151 CVT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
