Toyota Vios
2019-11 → present · chassis NSP15# · catalogue 14C310 · General
Supported model
Data version 2019-11

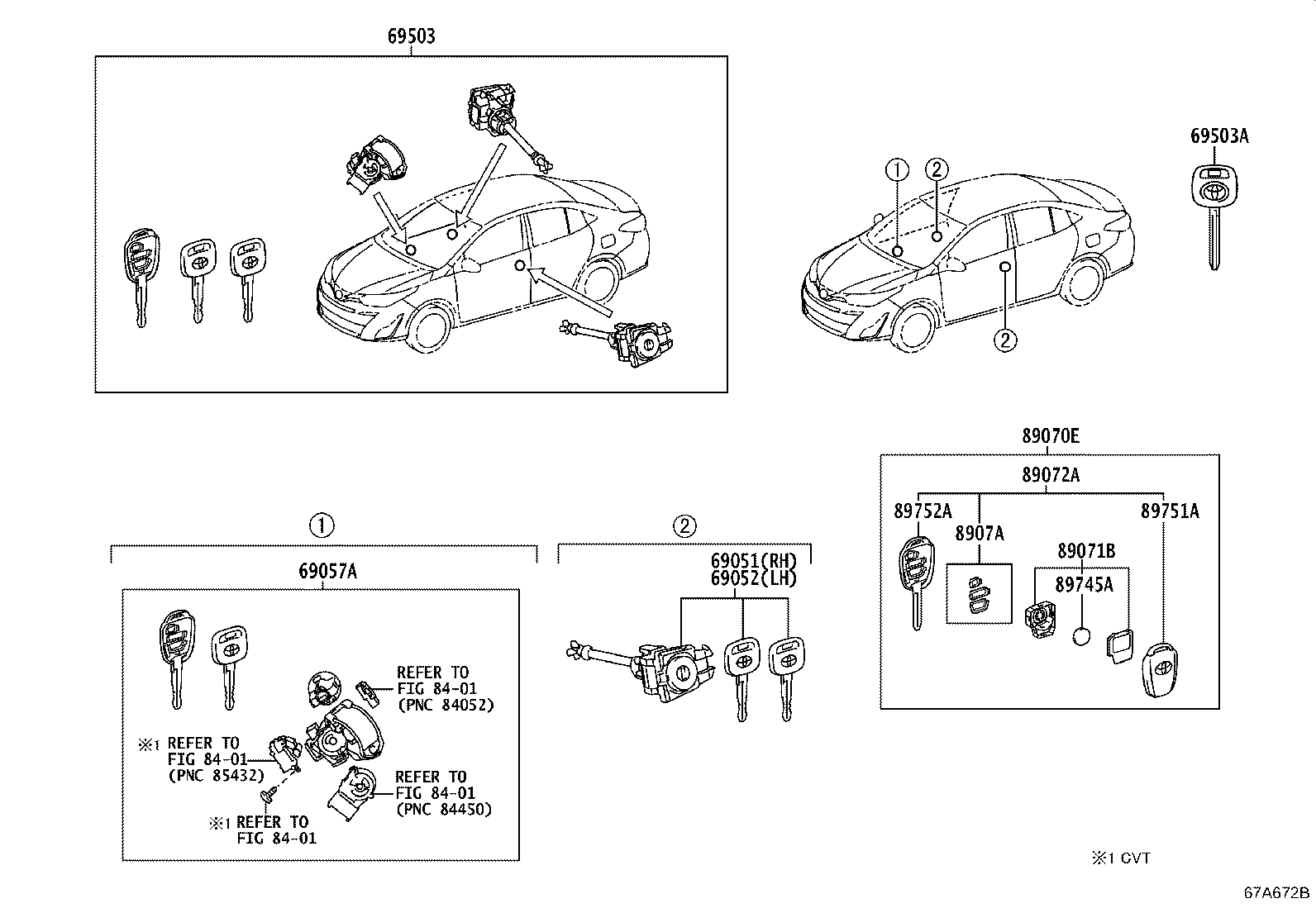

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-0D360 |
Cylinder & Key Set, Door Lock, RH
2019-11 → —
|
NSP150 | — | |
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-0D340 |
Cylinder & Key Set, Door Lock, LH
2019-11 → —
|
NSP150 | — | |
| 69057A — Cylinder & Key Set, Ignition Switch Lock | ||||
| 69057-0D360 |
Cylinder & Key Set, Ignition Switch Lock
2019-11 → —
|
NSP150 CVT D | — | |
| 69057-0D370 |
Cylinder & Key Set, Ignition Switch Lock
2019-11 → —
|
NSP150 5F D | — | |
| 69057-0D840 |
Cylinder & Key Set, Ignition Switch Lock
2019-11 → —
|
NSP150 5F R | — | |
| 69057-0D850 |
Cylinder & Key Set, Ignition Switch Lock
2019-11 → —
|
NSP150 CVT R | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-0DG50 |
Cylinder Set, Lock
2019-11 → —
|
NSP150 CVT R | — | |
| 69005-0DG80 |
Cylinder Set, Lock
2019-11 → —
|
NSP150 5F D | — | |
| 69005-0DG90 |
Cylinder Set, Lock
2019-11 → —
|
NSP150 5F R | — | |
| 69005-0DJ20 |
Cylinder Set, Lock
2019-11 → 2024-05
ended
|
NSP151 | — | |
| 69005-0DM50 |
Cylinder Set, Lock
2019-11 → —
|
NSP150 CVT D | — | |
| 69503A — Key, Blank | ||||
| 69515-0K140 note |
Key, Blank
2019-11 → —
|
NSP150 | — | |
| 69515-52180 note |
Key, Blank
2019-11 → 2024-05
ended
|
NSP151 | — | |
| 90999-00199 note |
Key, Blank
2019-11 → —
|
NSP150 | — | |
| 89070E — Transmitter Assy, Door Control | ||||
| 89070-0DA41 |
Transmitter Assy, Door Control
2019-11 → —
|
NSP150 R | — | |
| 89071B — Module Set, Transmitter Sub-assy, Door Control | ||||
| 89071-0D171 |
Module Set, Transmitter Sub-assy, Door Control
2019-11 → —
|
NSP150 R | — | |
| 89072A — Housing Set, Door Control Transmitter | ||||
| 89072-0D600 |
Housing Set, Door Control Transmitter
2019-11 → —
|
NSP150 R | — | |
| 8907A — Switch Set, Transmitter | ||||
| 8907A-22010 |
Switch Set, Transmitter
2019-11 → —
|
NSP150 R | — | |
| 89745A — Battery, Transmitter | ||||
| 89745-0D040 note |
Battery, Transmitter
2019-11 → —
|
NSP150 R | — | |
| 89751A — Cover, Transmitter Housing | ||||
| 89751-42090 |
Cover, Transmitter Housing
2019-11 → —
|
NSP150 R | — | |
| 89752A — Case, Transmitter Housing | ||||
| 89752-0D300 |
Case, Transmitter Housing
2019-11 → —
|
NSP150 R | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
