Toyota Vios
2019-11 → present · chassis NSP15# · catalogue 14C310 · General
Supported model
Data version 2019-11

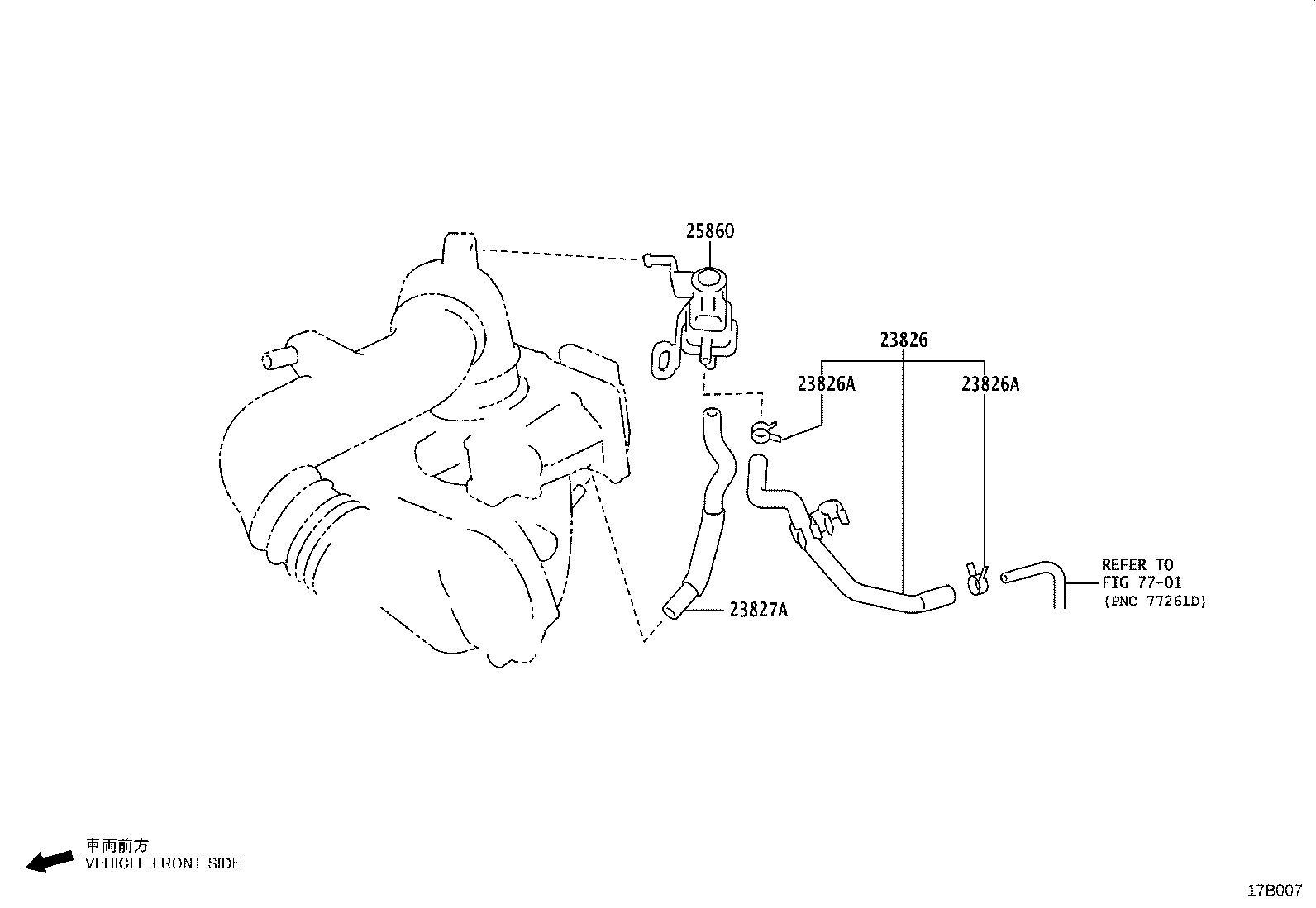

Vacuum Piping
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341T | Hose, Air, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
