Toyota Vios
2019-11 → present · chassis NSP15# · catalogue 14C310 · General
Supported model
Data version 2019-11

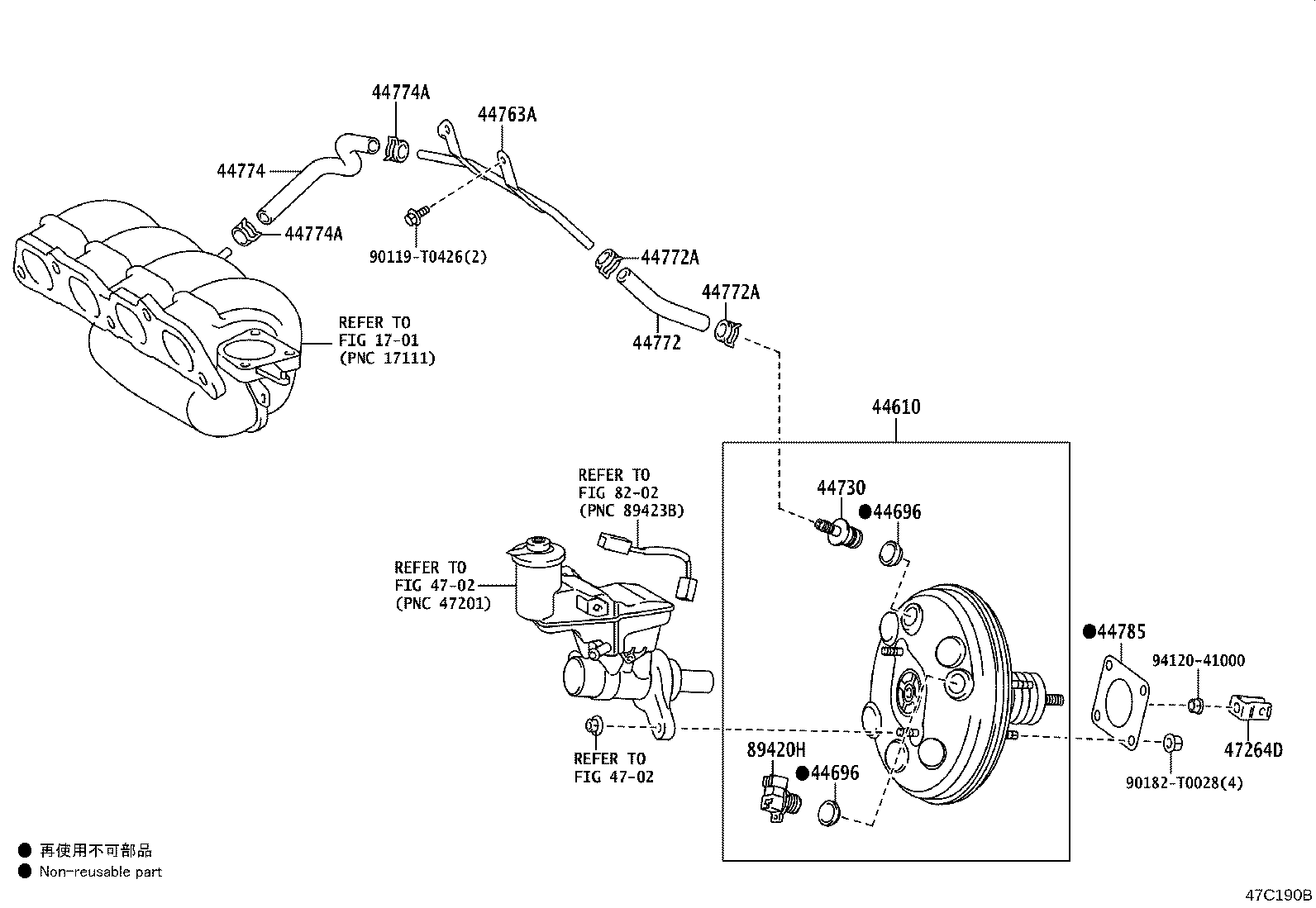

Brake Booster & Vacuum Tube
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44727A | Hose, Air, NO.2 |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 4476B | Ejector, Brake Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44771A | Clip(FOR VACUUM TUBE CONNECTOR HOSE) |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772A | Clip(FOR CHECK VALVE TO CONNECTOR TUBE) |
| 44774 | Hose, Union TO Connector Tube |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44774B | Hose, Union TO Connector Tube |
| 44774C | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44781 | Bracket, Hose |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 89420H | Sensor Assy, Vacuum |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
