Toyota Vios
2019-11 → present · chassis NSP15# · catalogue 14C310 · General
Supported model
Data version 2019-11

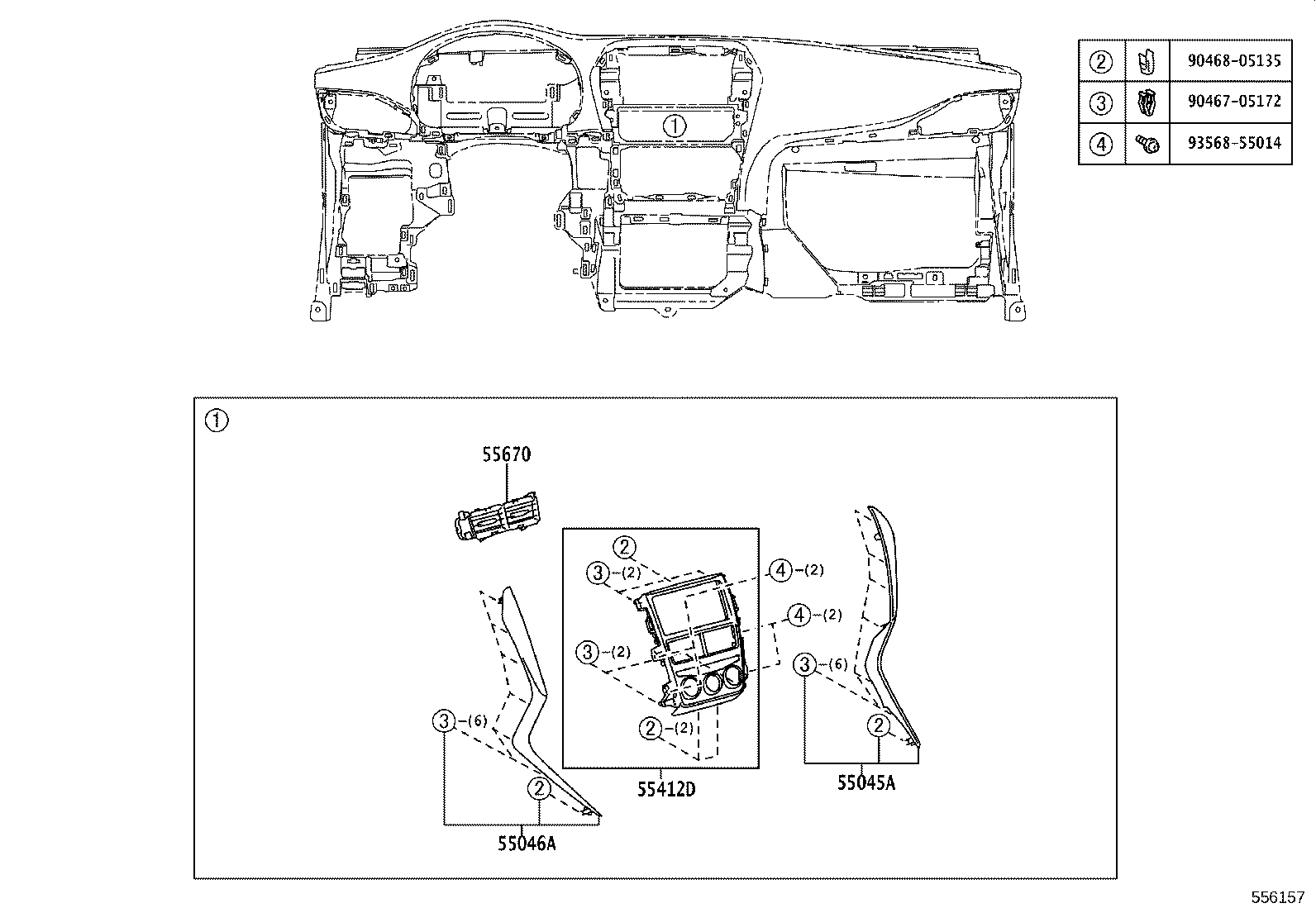

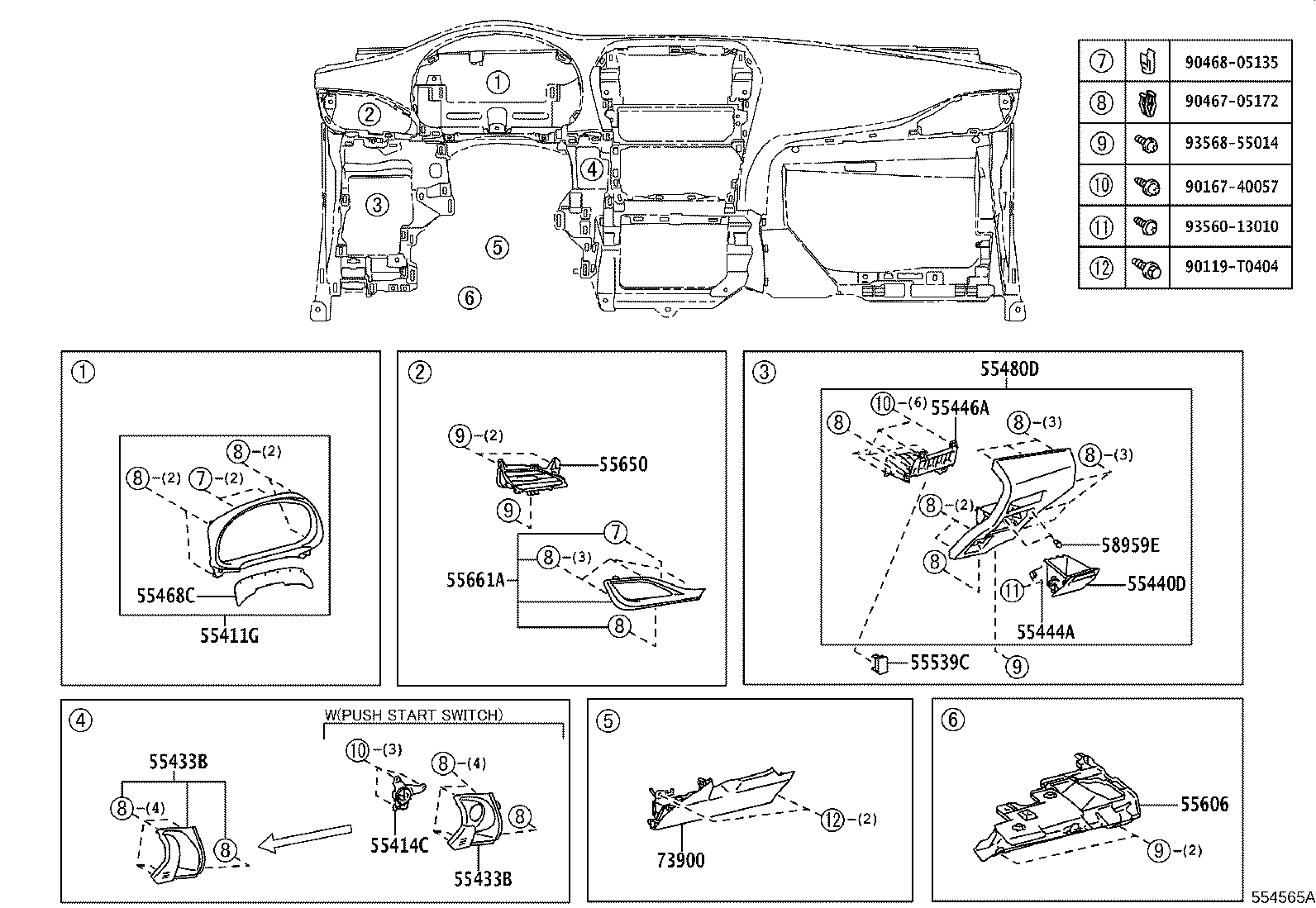

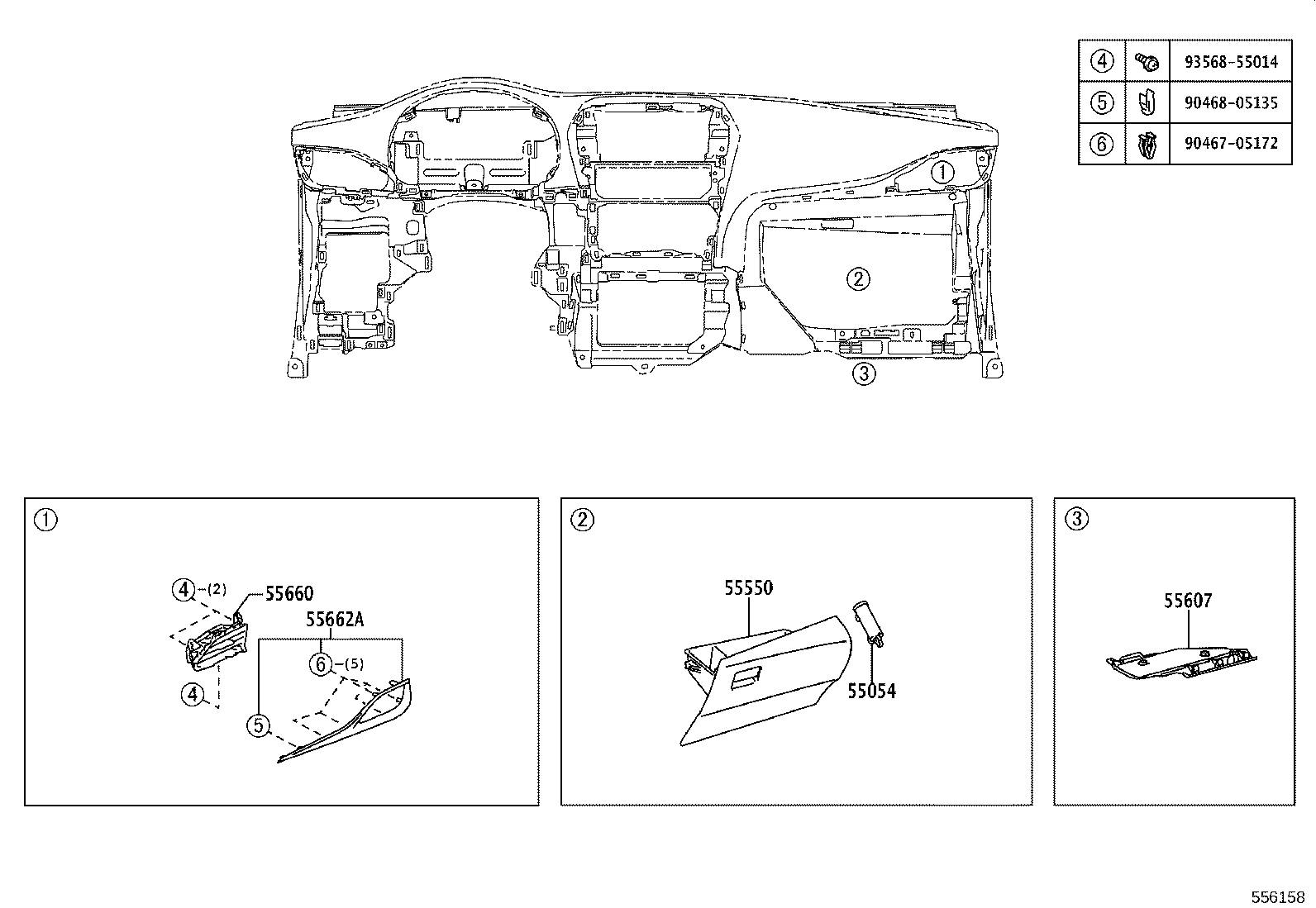

Instrument Panel & Glove Compartment
41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161V | Piece, Instrument Panel |
| 55045A | Panel Sub-assy, Instrument Panel Finish, Lower RH |
| 55046A | Panel Sub-assy, Instrument Panel Finish, Lower LH |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55322A | Bracket, Instrument Panel, NO.2 |
| 55324B | Bracket, Instrument Panel, NO.4 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55349C | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55394C | Bolt, Instrument Panel |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55414C | Bezel, Starter Switch |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55440D | Box Assy, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55468C | Seal, Instrument Cluster Finish Panel, NO.1 |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55539C | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55661A | Bezel, Instrument Panel Register |
| 55662A | Bezel, Instrument Panel Resister, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 58959E | Cushion, Console Compartment Door |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
