Toyota Vios
2019-11 → present · chassis NSP15# · catalogue 14C310 · General
Supported model
Data version 2019-11
Luggage Compartment Door & Lock
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64127B | Support, Luggage Compartment Door Torsion Bar |
| 64401 | Panel Sub-assy, Luggage Compartment Door |
| 64426 | Plug, Luggage Compartment Door, LH |
| 64459 | Cushion, Luggage Compartment Door |
| 64461 | Weatherstrip, Luggage Compartment Door |
| 64503 | Arm Sub-assy, Luggage Compartment Door Hinge, RH |
| 64504 | Arm Sub-assy, Luggage Compartment Door Hinge, LH |
| 64531 | Bar, Luggage Door Hinge Torsion, RH |
| 64532 | Bar, Luggage Door Hinge Torsion, LH |
| 64559 | Pin, Luggage Door Hinge |

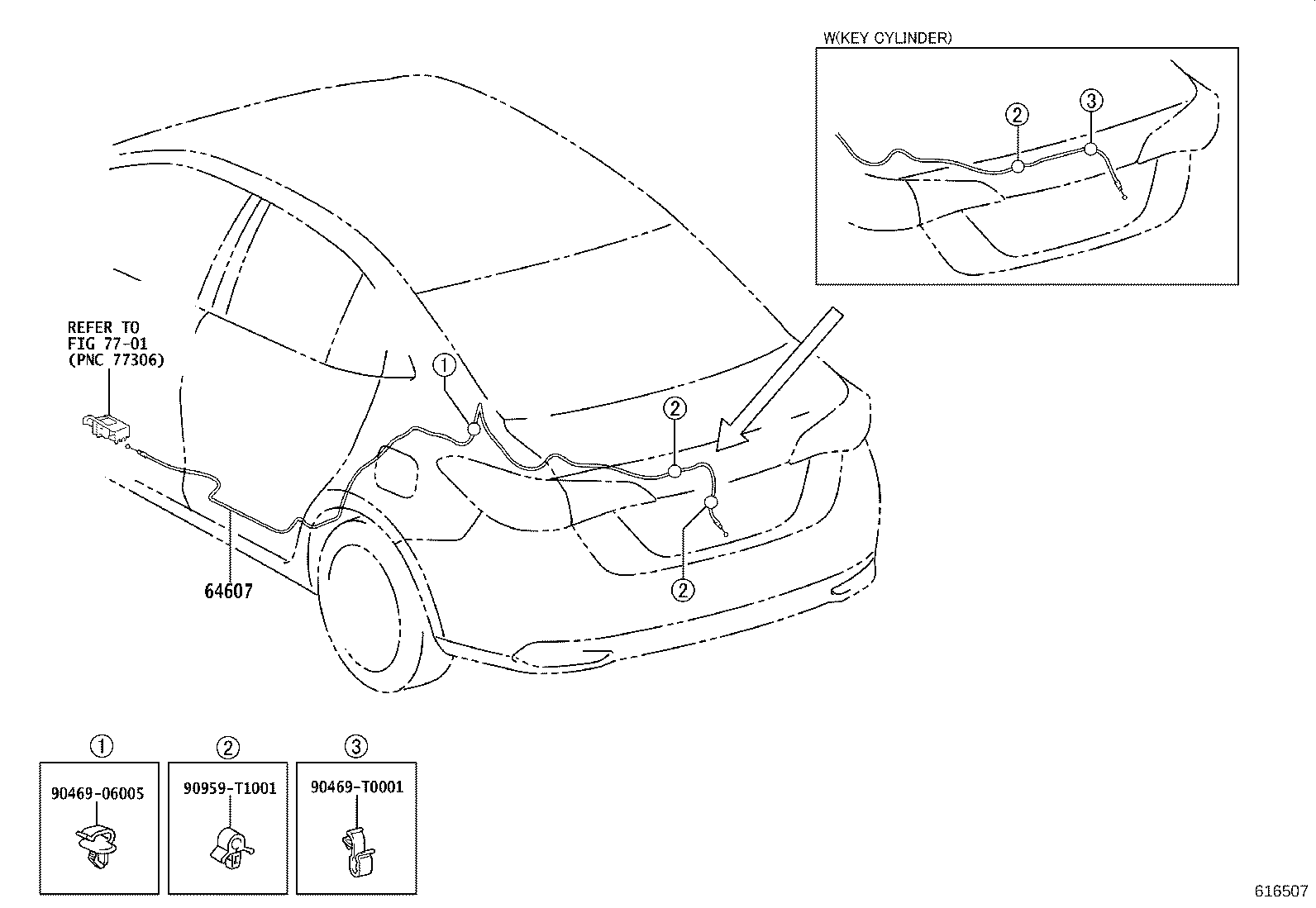

| 64607 | Cable Sub-assy, Luggage Door Lock Control |
| 64610 | Lock Assy, Luggage Compartment Door |
| 64621B | Striker, Luggage Compartment Door Lock |
| 75129B | Cushion, Rear Licence Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
