Toyota Vios
2019-11 → present · chassis NSP15# · catalogue 14C310 · General
Supported model
Data version 2019-11

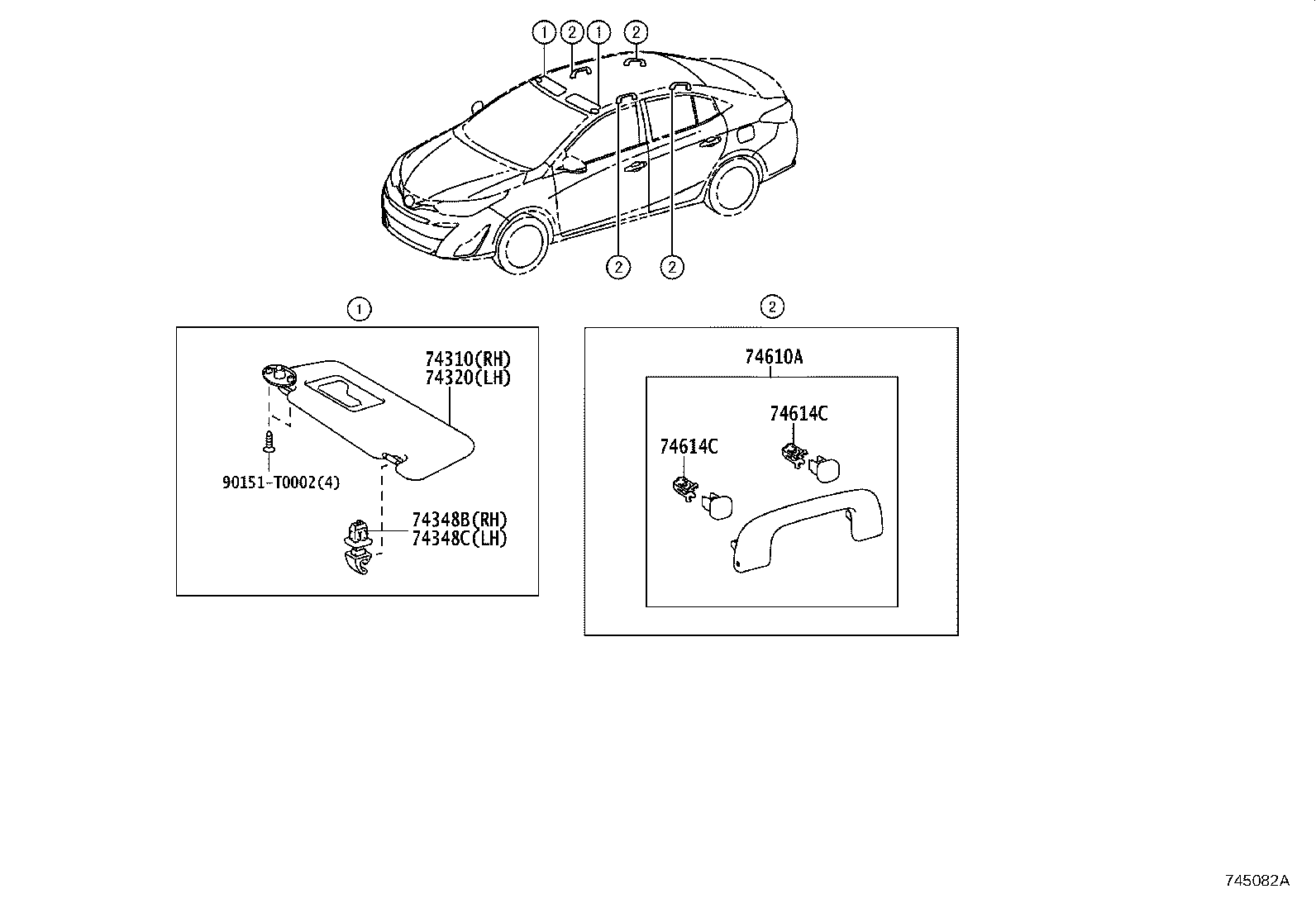

Armrest & Visor
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74250 | Armrest Assy, Rear RH |
| 74260 | Armrest Assy, Rear LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348B | Holder, Visor, RH |
| 74348C | Holder, Visor, LH |
| 74610A | Grip Sub-assy, Assist |
| 74614C | Plate, Assist Grip Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
