Toyota Vios
2019-11 → present · chassis NSP15# · catalogue 14C310 · General
Supported model
Data version 2019-11
Caution Plate (EXTERIOR & INTERIOR)
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11298B | Label, Emission Control Information |
| 16793B | Label, Cooling Fan Information |

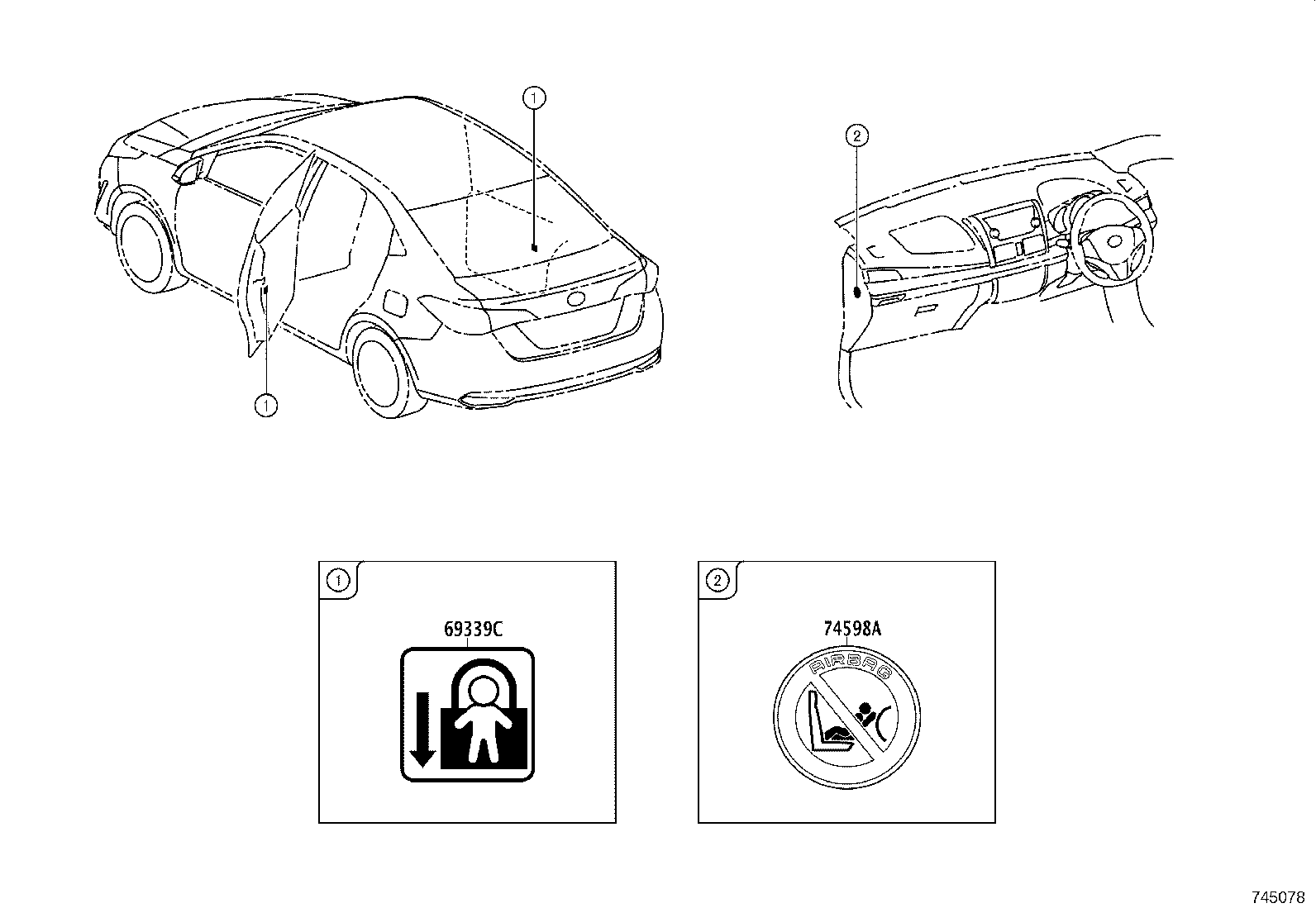

| 69339C | Label, Child Protector Information |

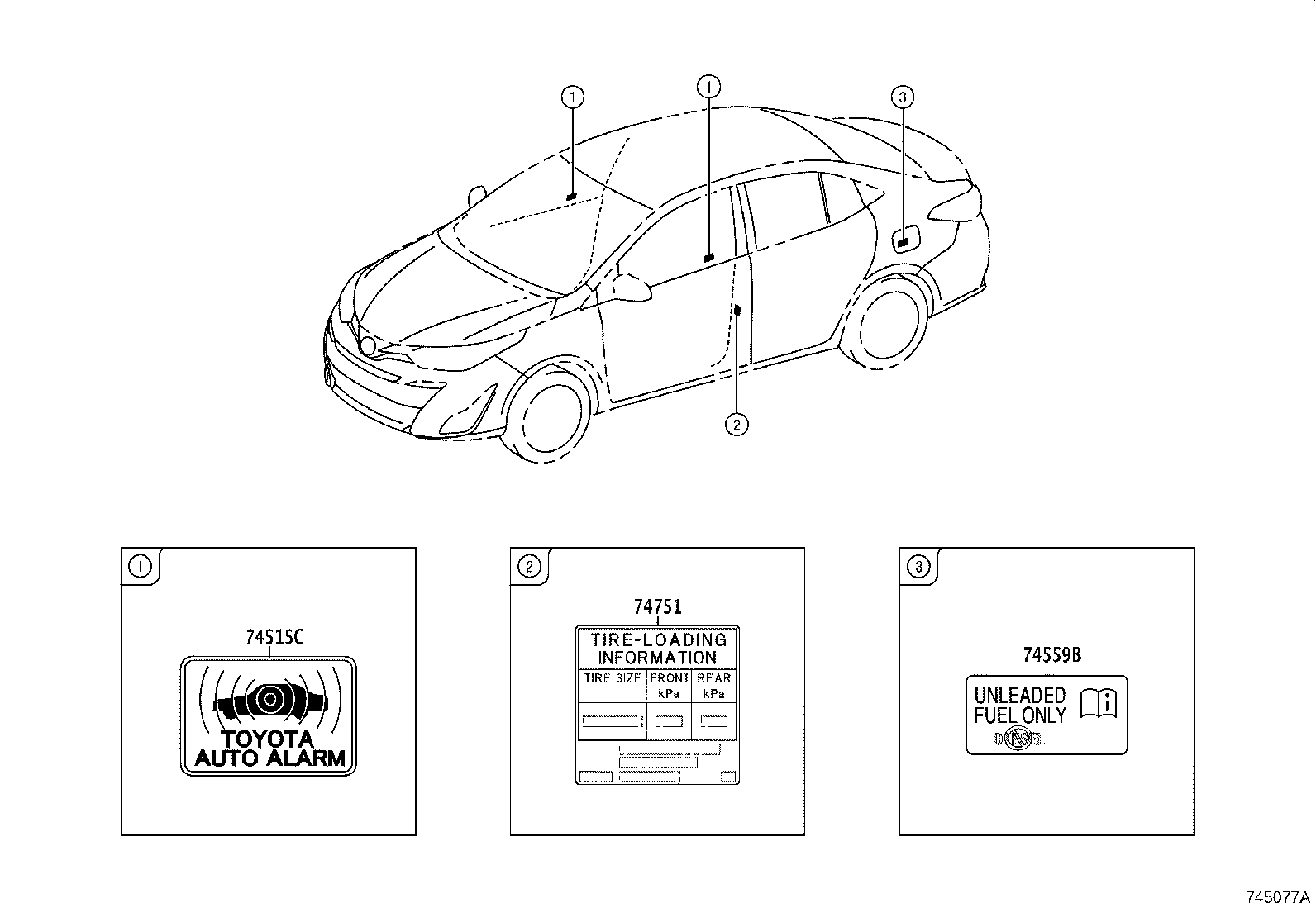

| 74515C | Label, Theft Warning Information |
| 74559B | Label, Fuel Information |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
