Toyota Vios

2019-11 → present · chassis NSP15# · catalogue 14C310 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

13 part groups · 3 illustrations

Illustrations

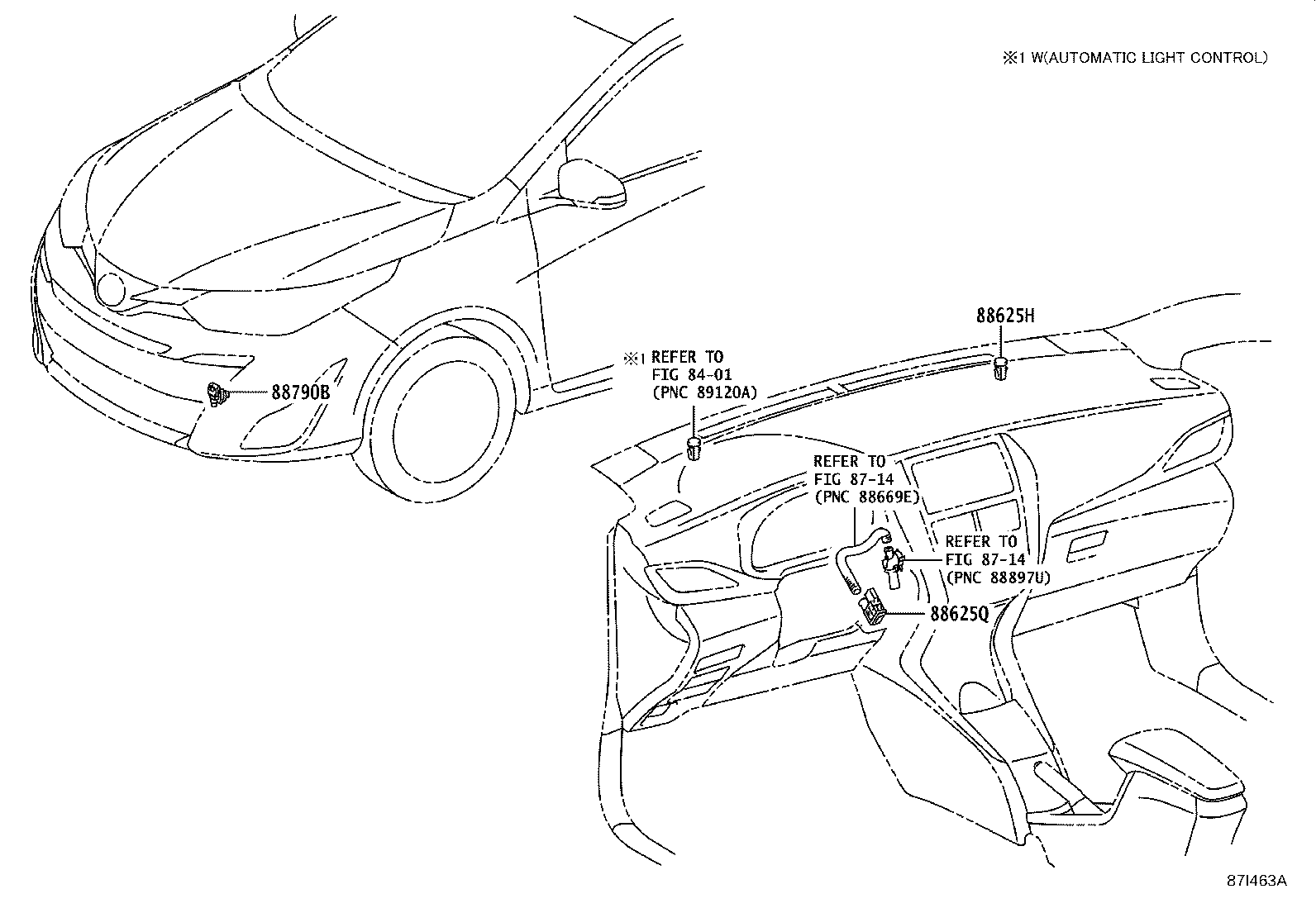

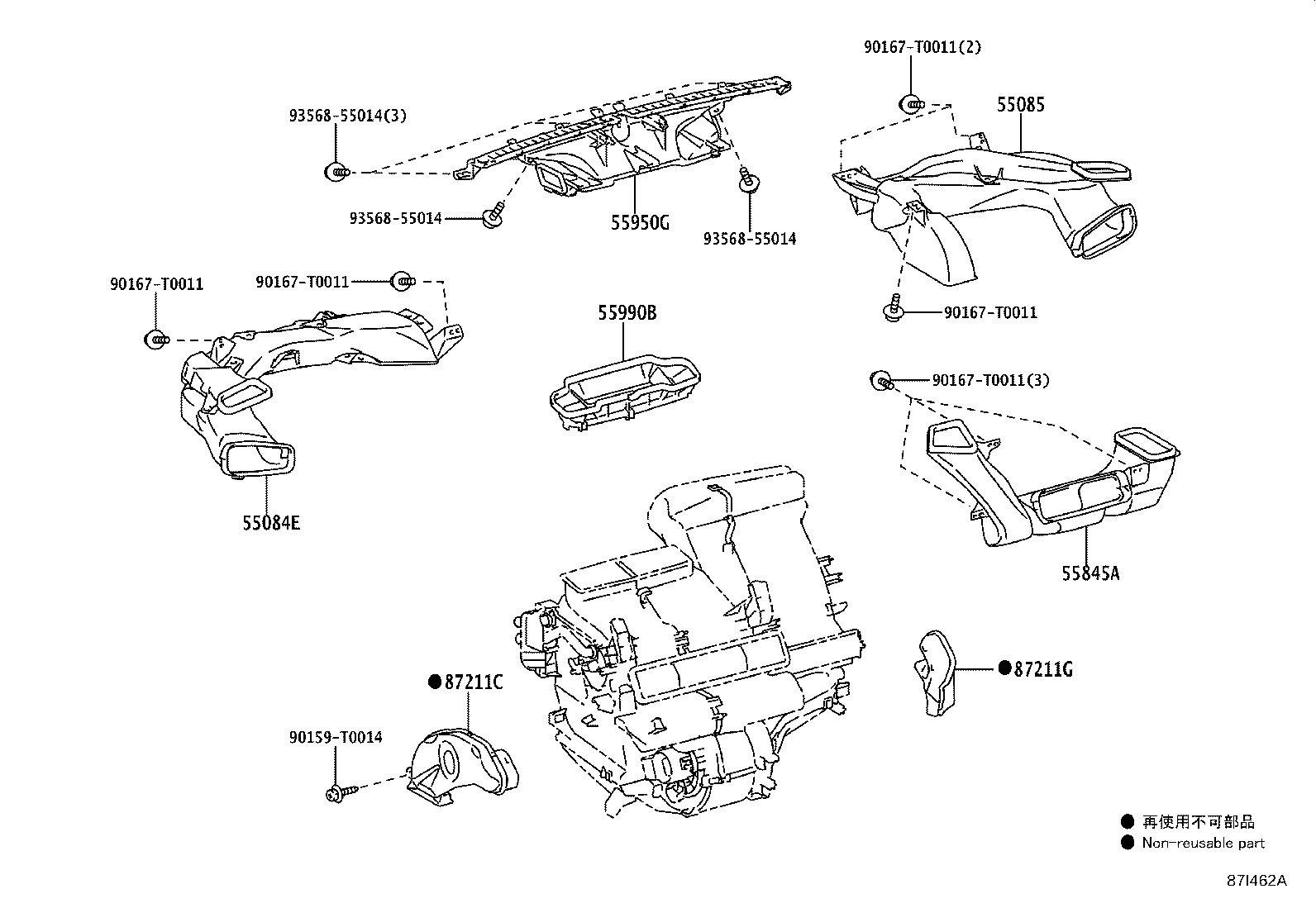

Figure 87I460A 87I460A 2019-11 → — Figure 87I462A 87I462A 2019-11 → — Figure 87I463A 87I463A 2019-11 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55900A Control & Accessory Assy, Heater
55906A Cable Sub-assy, Defroster Damper Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87211C Duct, Air, NO.4
87211G Duct, Air, NO.5
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
