Factory parts data · Europe

Toyota Limo/Vios

2019-12 → present · chassis NSP15# · catalogue 14E310 · General

Supported model Data version 2019-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 2 illustrations

Illustrations

Figure 867938A

867938A 2019-12 → —

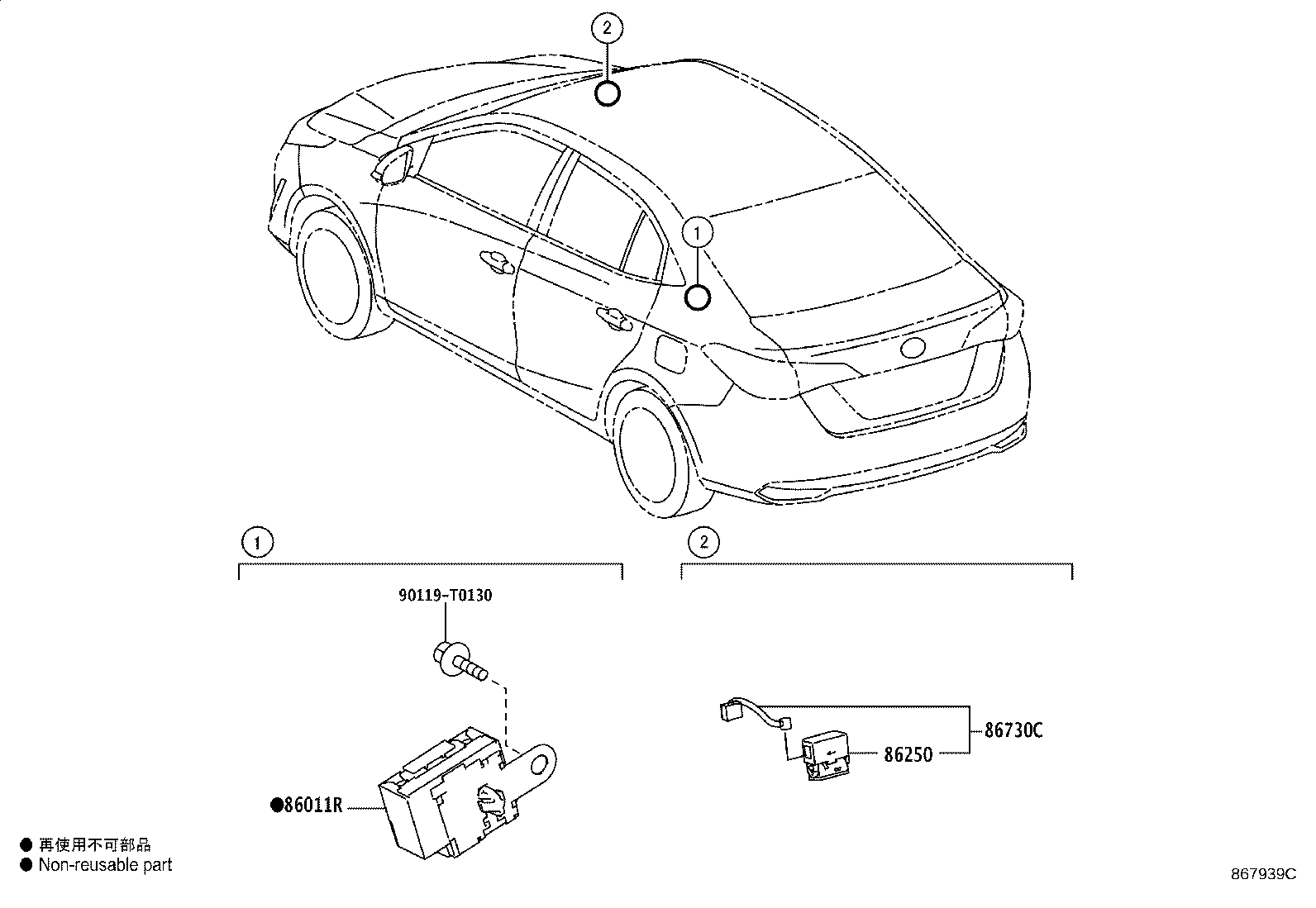

Figure 867939C

867939C 2019-12 → —

Part groups

PNC	Description
86011R	Condenser, Radio Setting
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86250	Microphone Assy, Amplifier
86730C	Microphone Assy, Telephone

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
