Toyota Vios/Yaris

2020-12 → present · chassis NSP151 · catalogue 14G310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

6 part groups · 2 illustrations

Illustrations

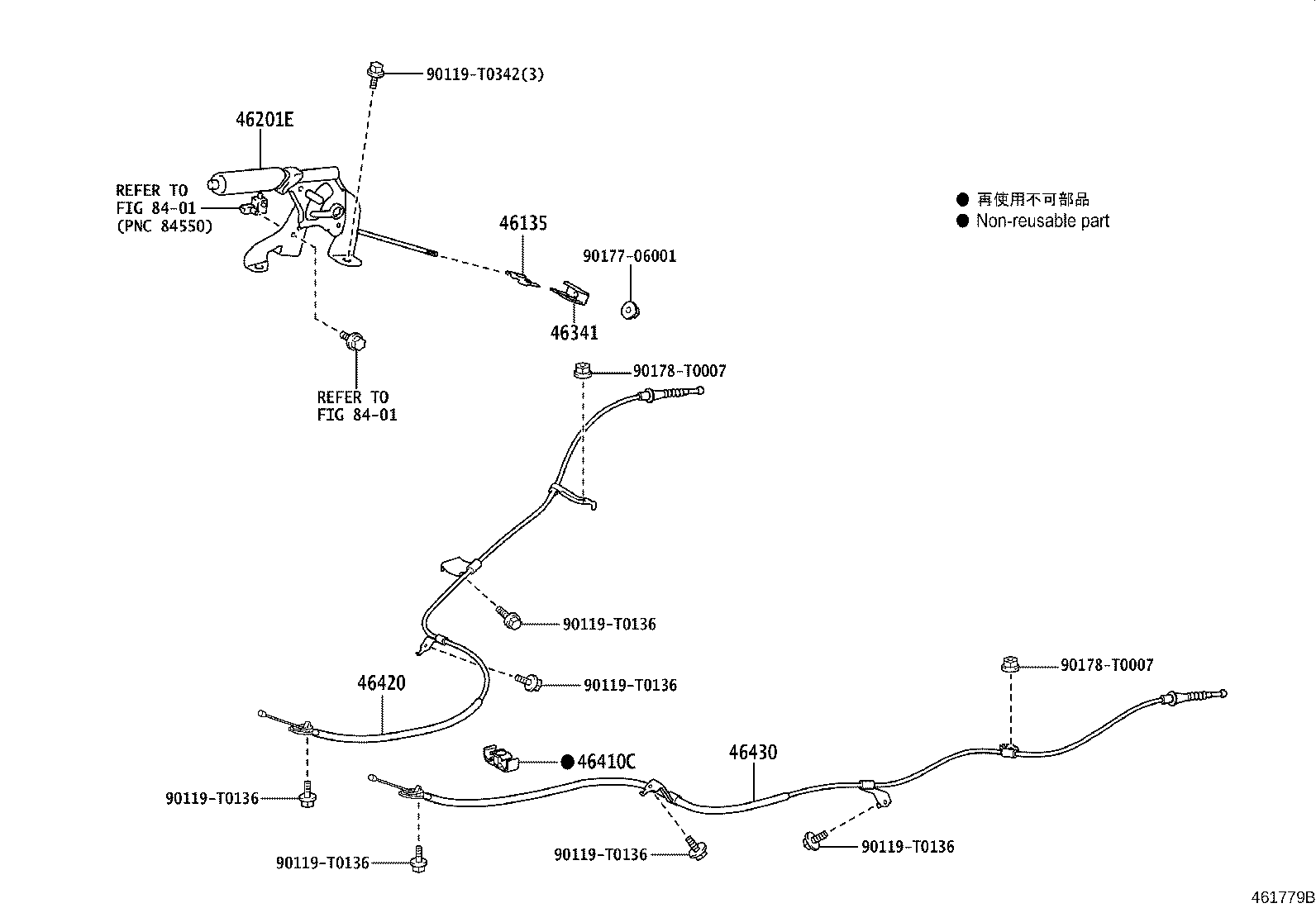

Figure 461778B 461778B 2020-12 → — Figure 461779B 461779B 2020-12 → —

Part groups

PNCDescription
46135 Stopper, Parking Brake Cable End
46201E Lever Sub-assy, Parking Brake
46341 Equalizer, Parking Brake
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
