Toyota Vios/Yaris

2020-12 → present · chassis NSP151 · catalogue 14G310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

26 part groups · 4 illustrations

Illustrations

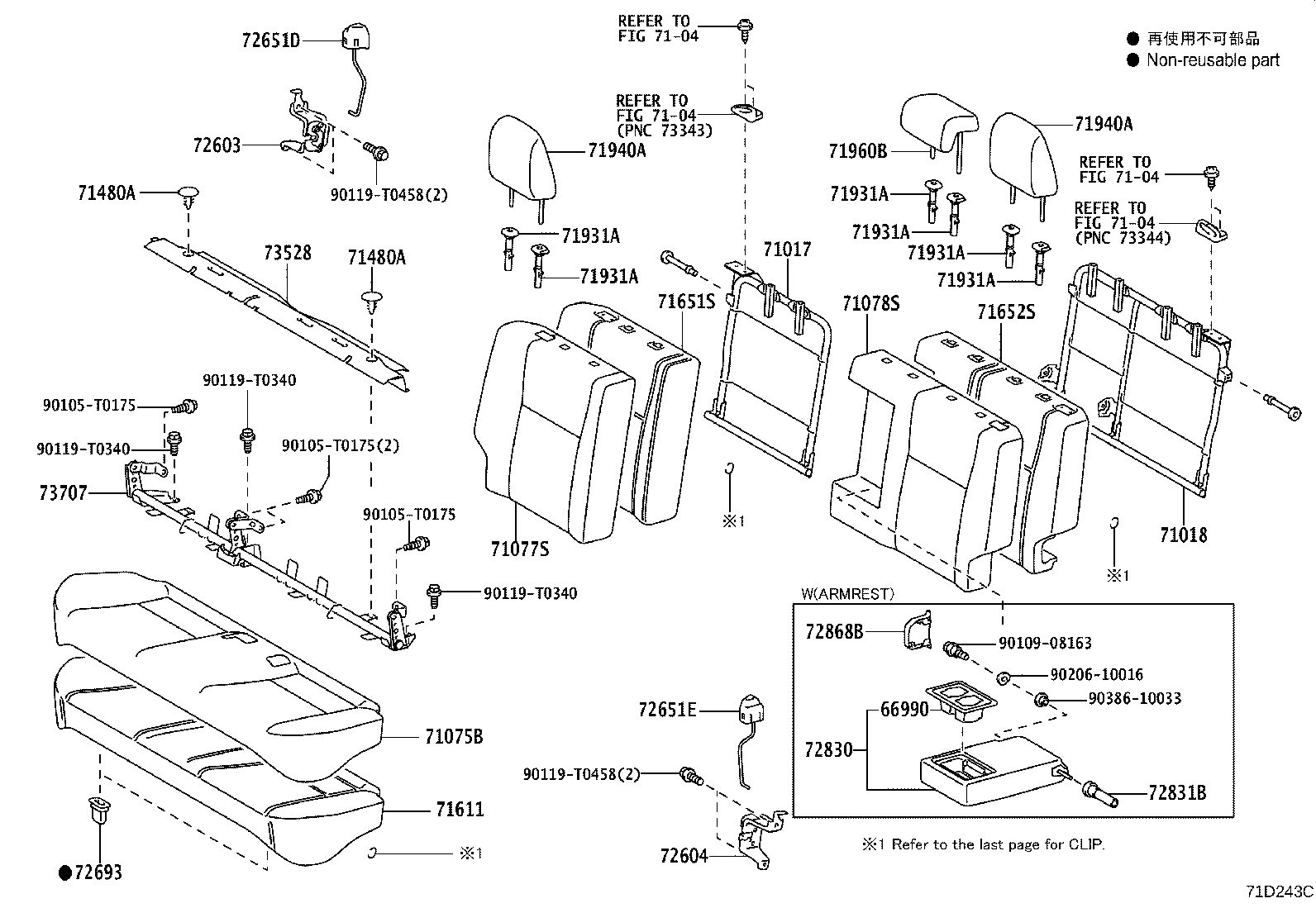

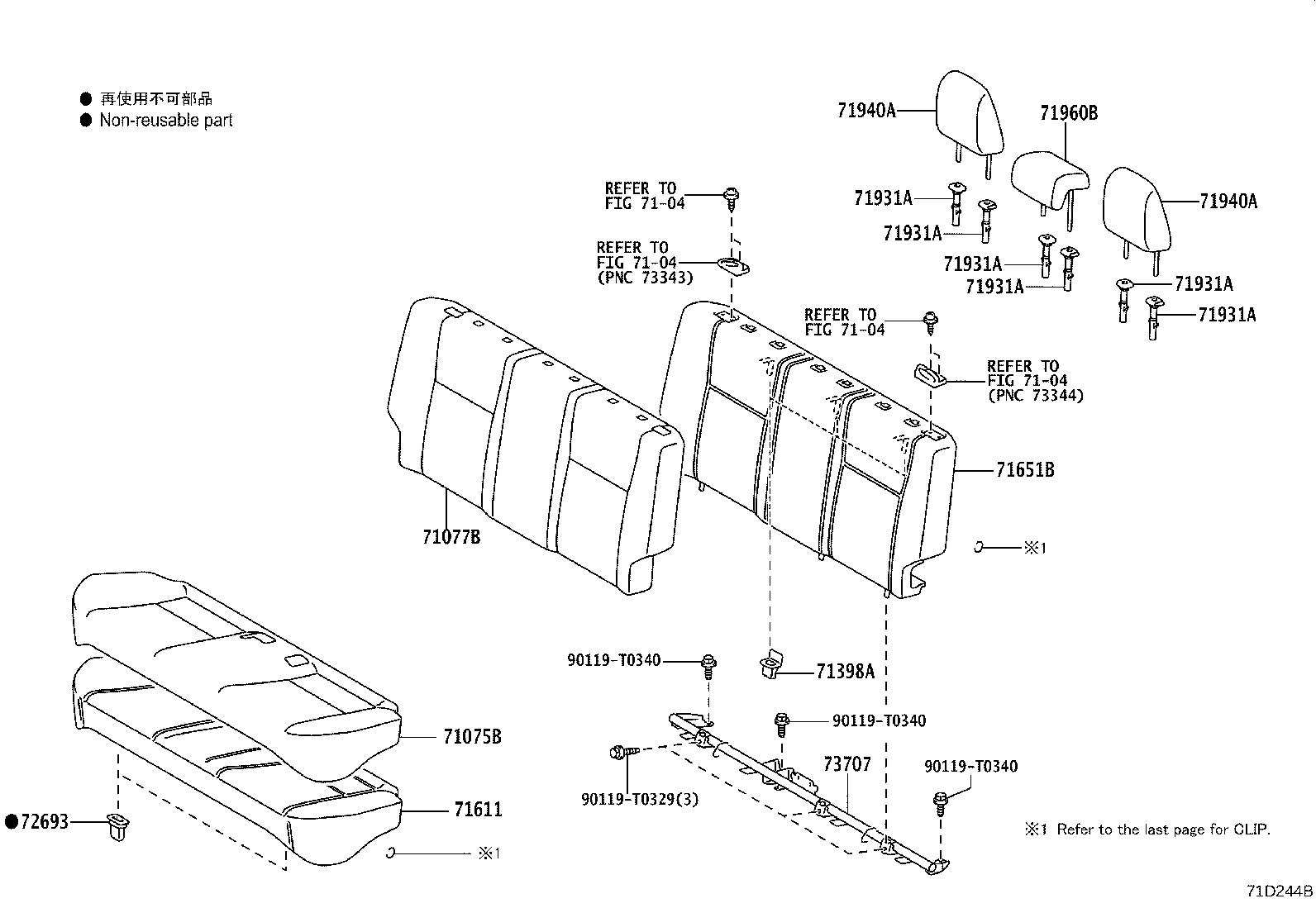

Figure 71D241B 71D241B 2020-12 → — Figure 71D244B 71D244B 2020-12 → — Figure 71D243C 71D243C 2020-12 → — Figure 71D242A 71D242A 2020-12 → —

Part groups

PNCDescription
66990 Holder Assy, Cup
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71398A Holder, Rear Seatback
71480A Clip (FOR REAR SEATBACK)
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72651D Rod, Rear Seatback Lock, RH
72651E Rod, Rear Seatback Lock, LH
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72831B Plate, Rear Seat Center Armrest, NO.1
72868B Cover, Center Armrest Hinge
73528 Carpet, Rear Seat Sub Floor, Rear
73707 Bracket Sub-assy, Child Restraint Seat Anchor, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
