Toyota Vios/Yaris

2020-12 → present · chassis NSP151 · catalogue 14G310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

15 part groups · 2 illustrations

Illustrations

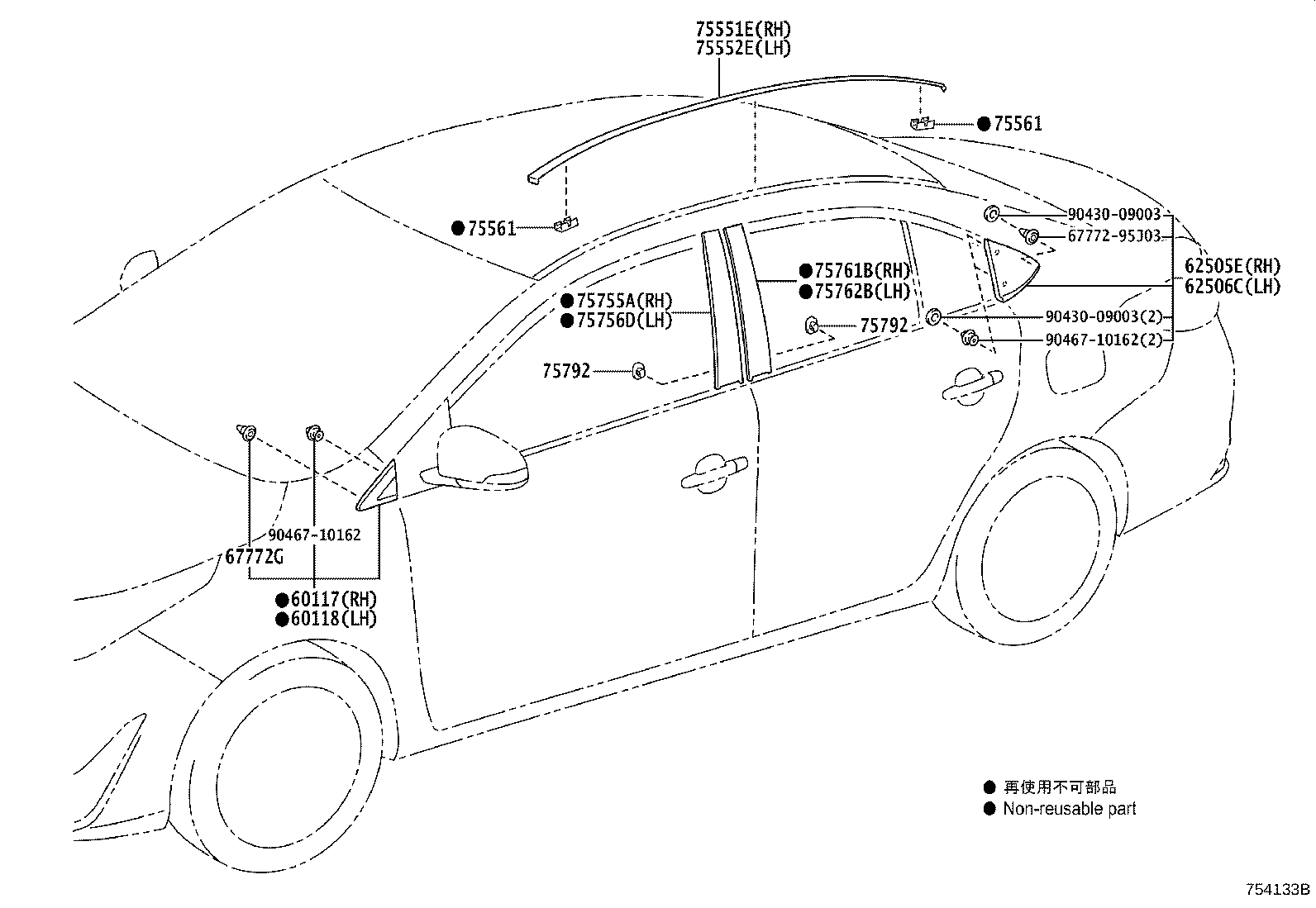

Figure 754132B 754132B 2020-12 → — Figure 754133B 754133B 2020-12 → —

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
62505E Cover Sub-assy, Quarter Pillar, RH
62506C Cover Sub-assy, Quarter Pillar, LH
67772G Cap, Front Pillar Cover
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75553F Moulding, Quarter Garnish, RH
75554E Moulding, Quarter Garnish, LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75755A Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE)
75756D Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE)
75761B Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE)
75762B Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE)
75792 Clip, Door Window Frame Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
