Toyota Vios/Yaris

2021-01 → present · chassis NSP151 · catalogue 14H310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 4 illustrations

Illustrations

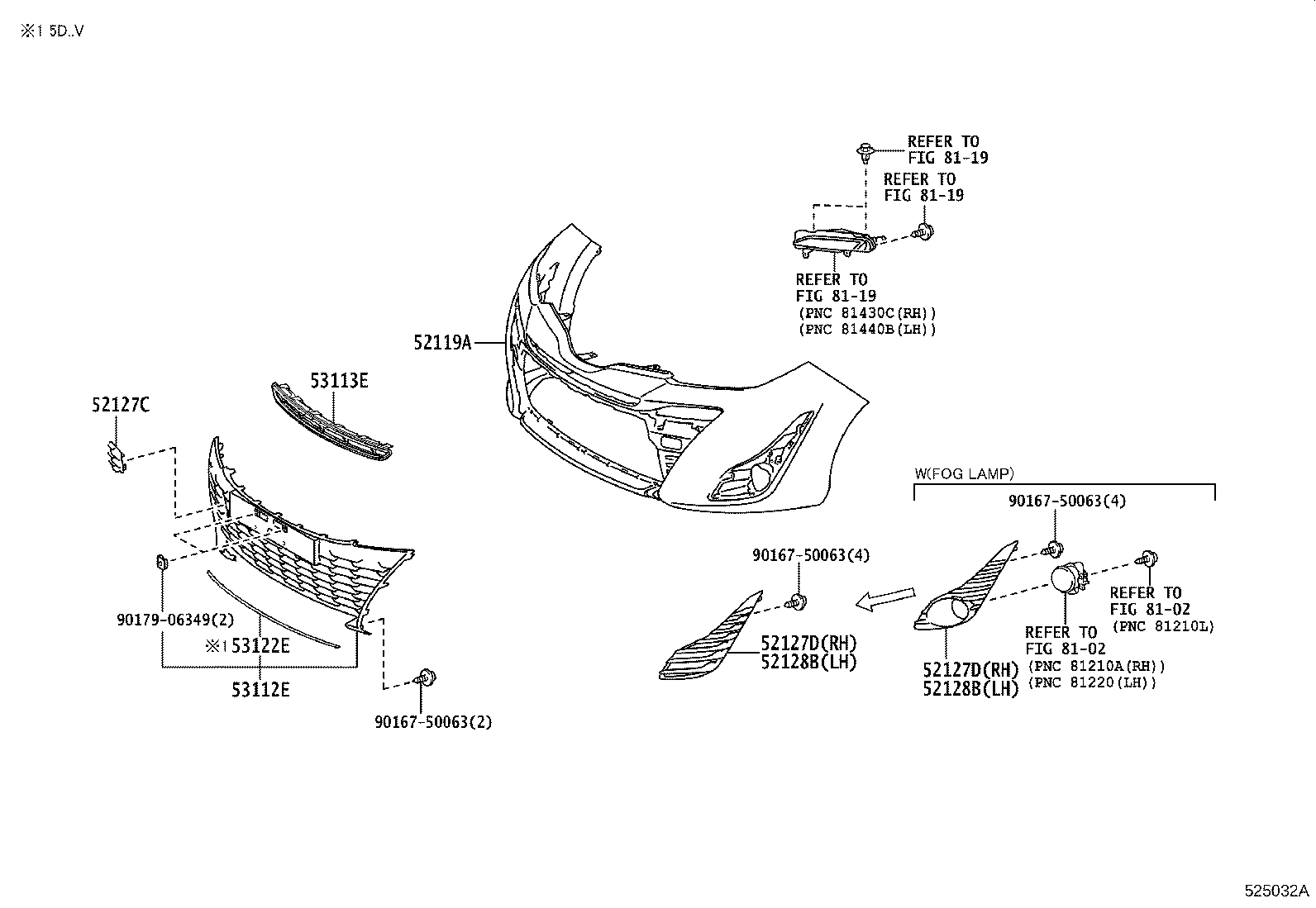

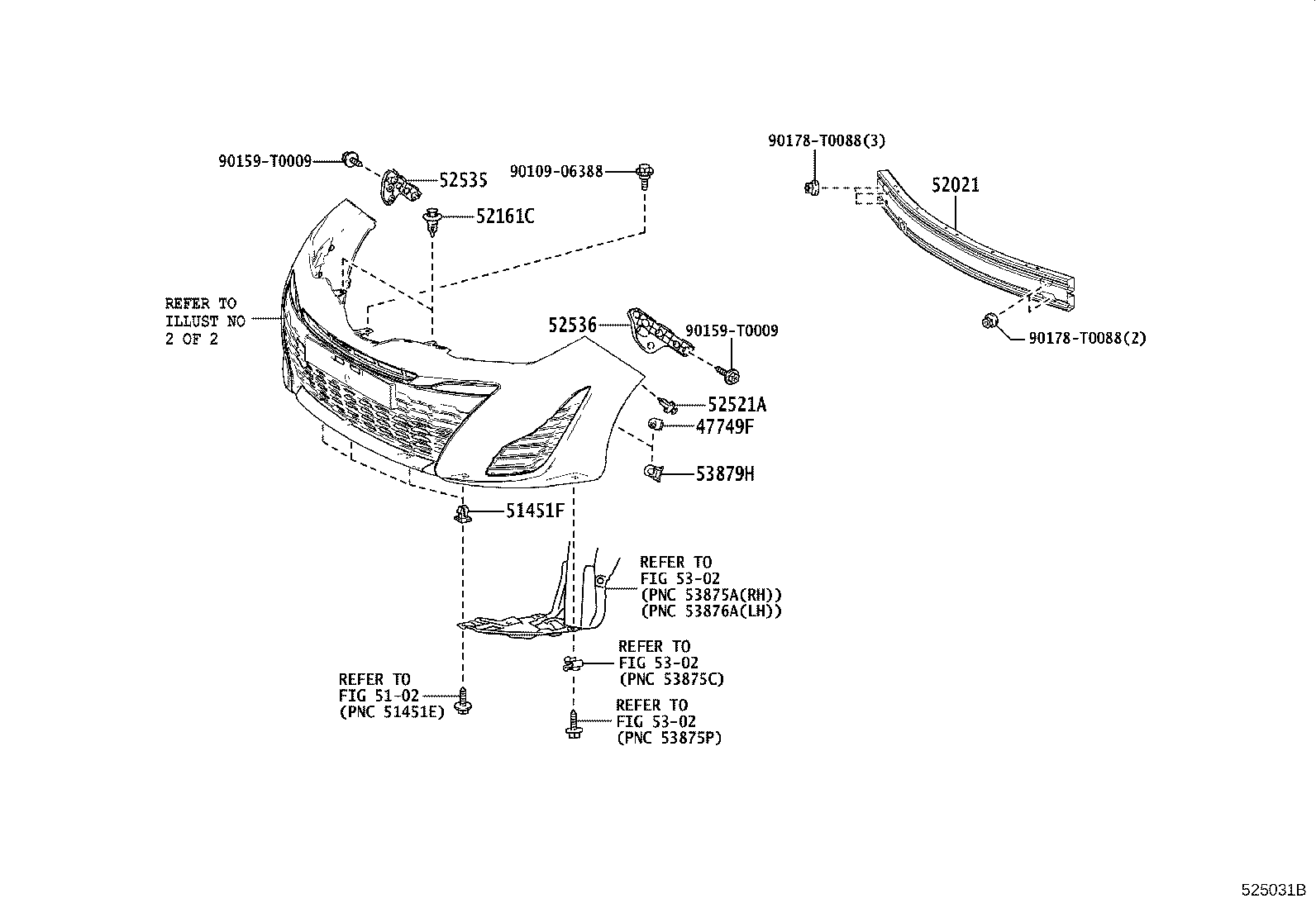

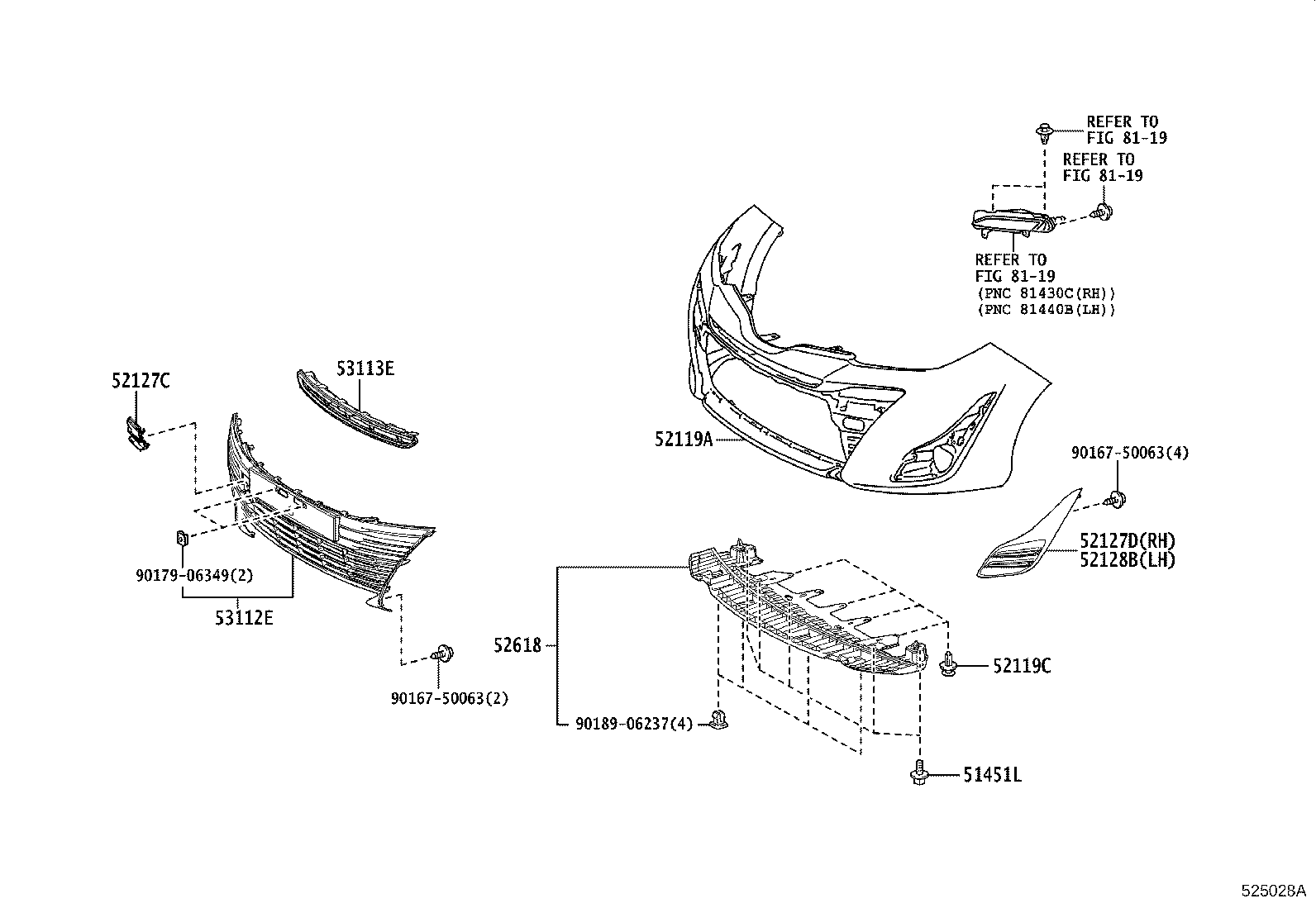

Figure 525027D 525027D 2021-01 → — Figure 525028A 525028A 2021-01 → — Figure 525031B 525031B 2021-01 → — Figure 525032A 525032A 2021-01 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
51451L Bolt, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53113E Grille, Radiator, Lower NO.2
53122E Moulding, Radiator Grille, Lower
53879H Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
