Toyota Vios/Yaris
2021-01 → present · chassis NSP151 · catalogue 14H310 · General
Supported model
Data version 2020-12

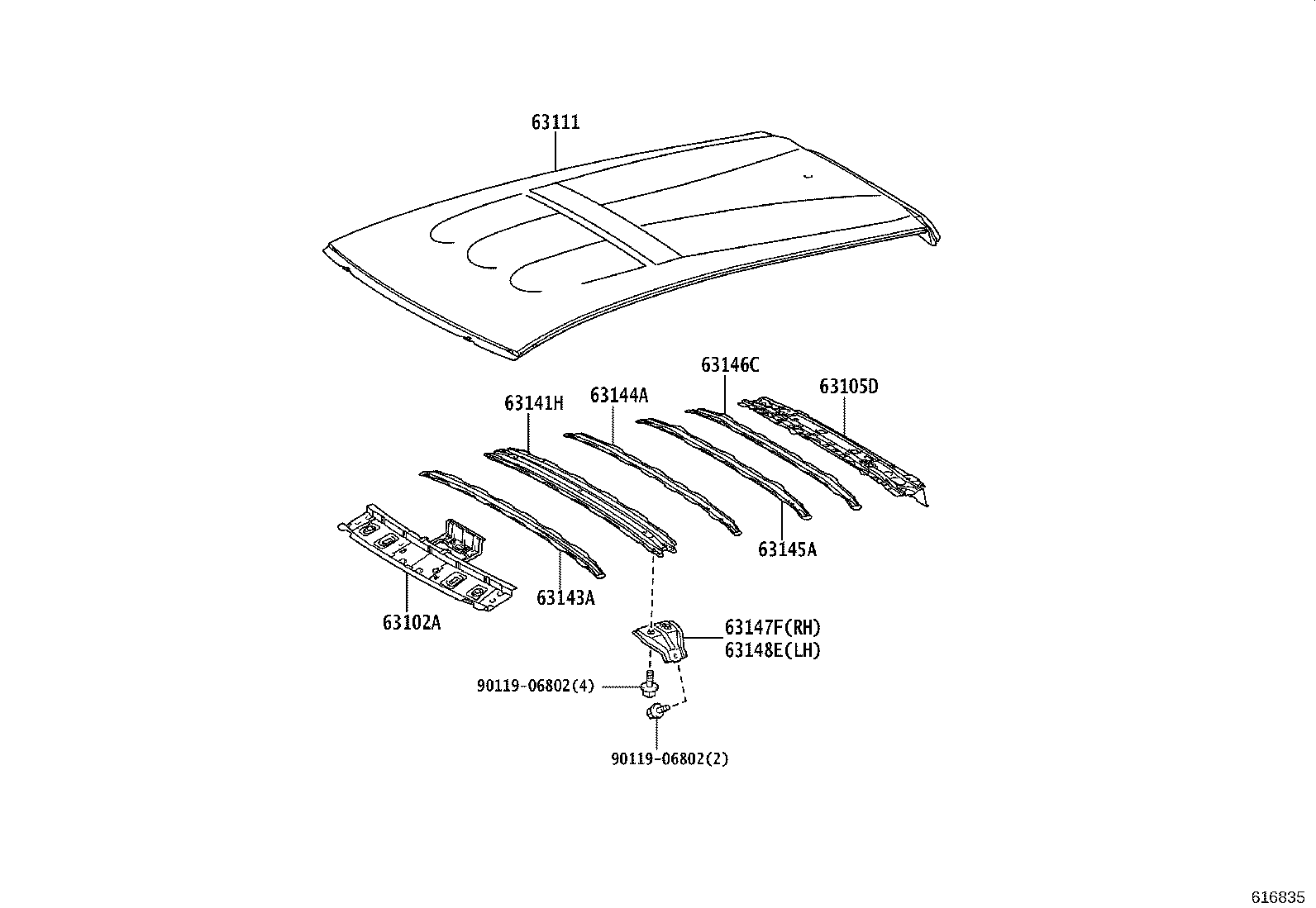

Roof Panel & Back Window Glass
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63133A | Frame, Back Window, Upper |
| 63141H | Reinforcement, Roof Panel, Center |
| 63143A | Reinforcement, Roof Panel |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63145A | Reinforcement, Roof Panel, NO.5 |
| 63146C | Reinforcement Sub-assy, Roof Panel, NO.6 |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 64101 | Panel Sub-assy, Upper Back |
| 64243 | Panel, Room Partition, NO.2 RH |
| 64244 | Panel, Room Partition, NO.2 LH |
| 64811 | Glass, Back Window |
| 64813D | Dam, Back Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
