Toyota Vios/Yaris

2021-01 → present · chassis NSP151 · catalogue 14H310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 4 illustrations

Illustrations

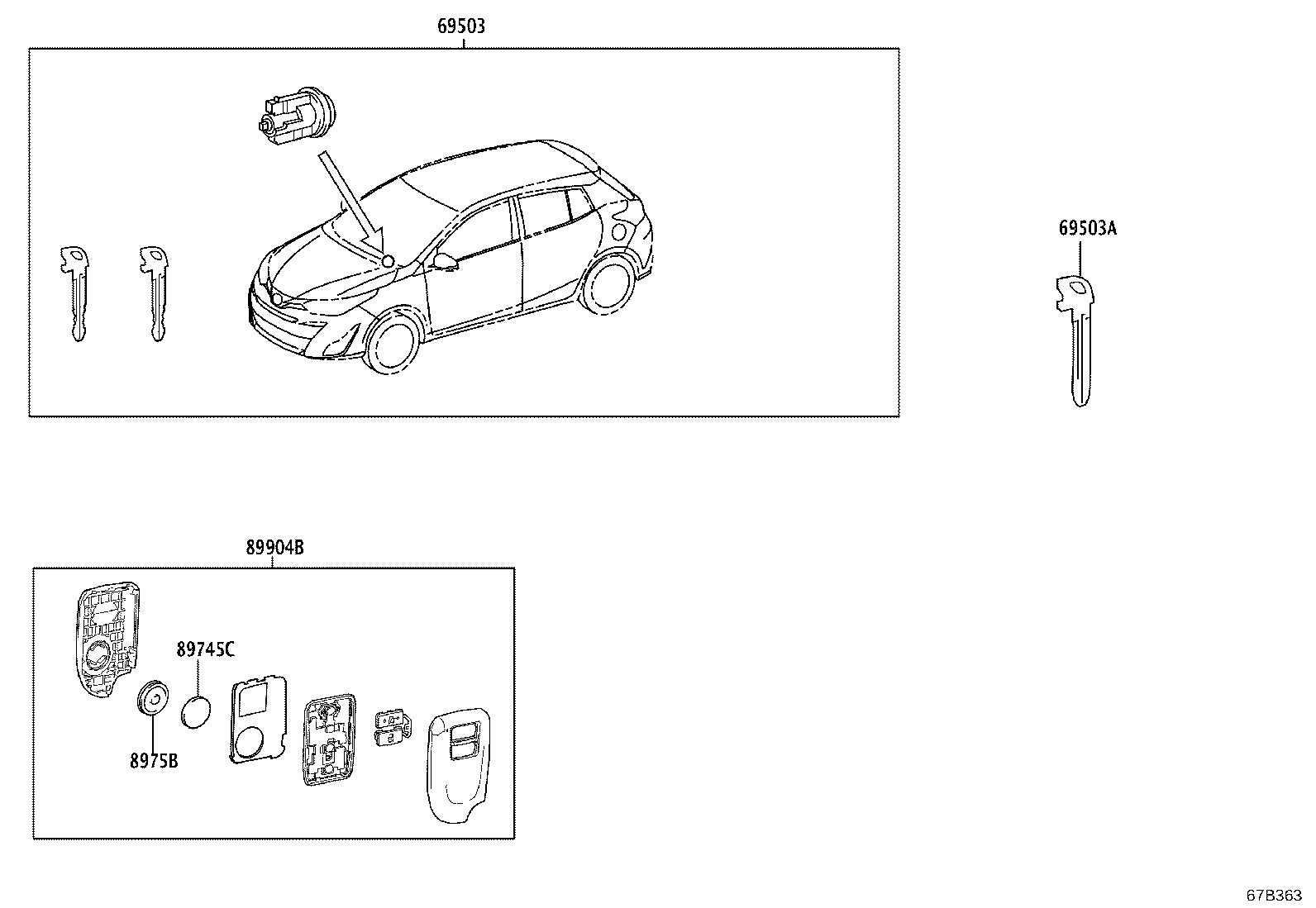

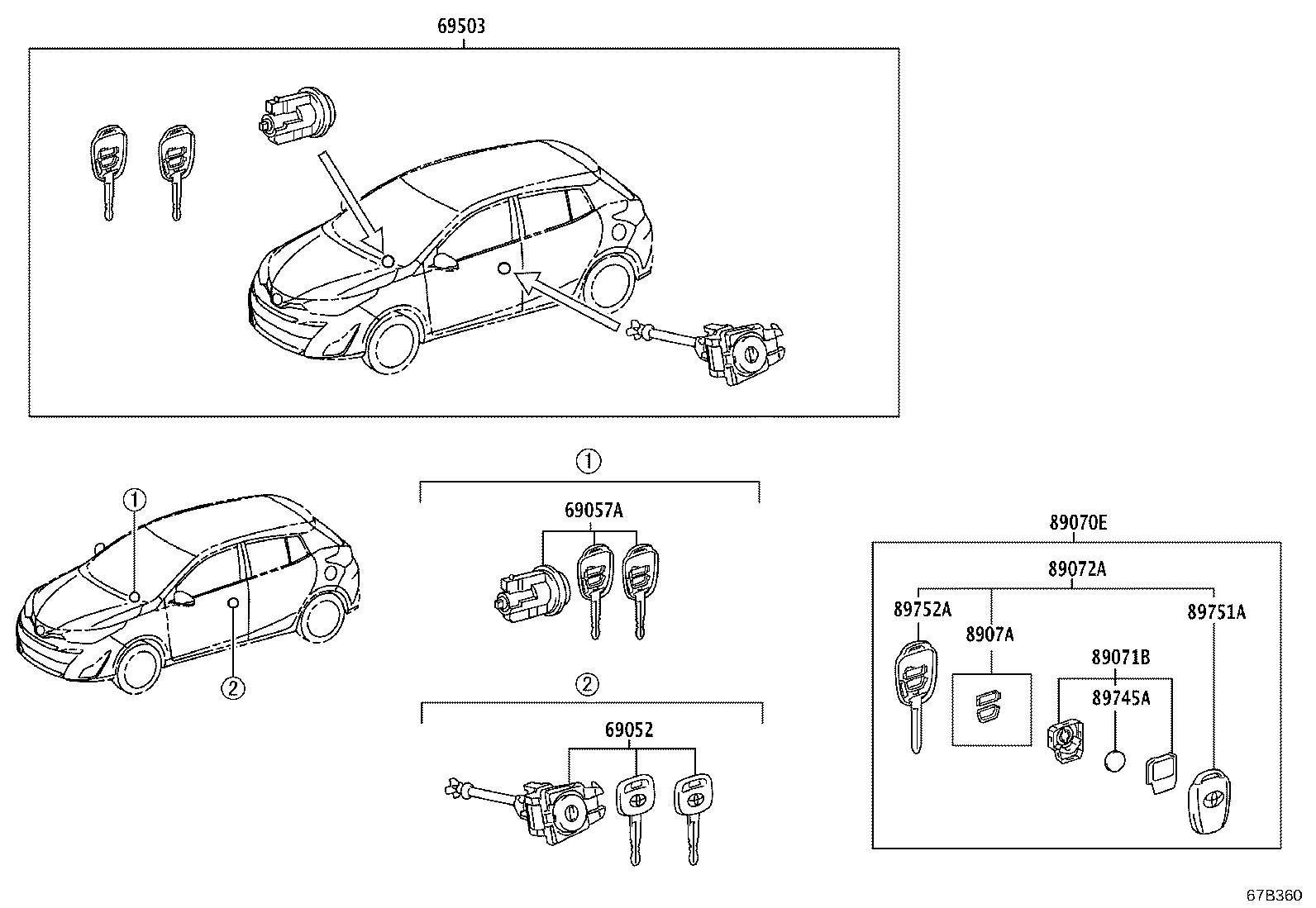

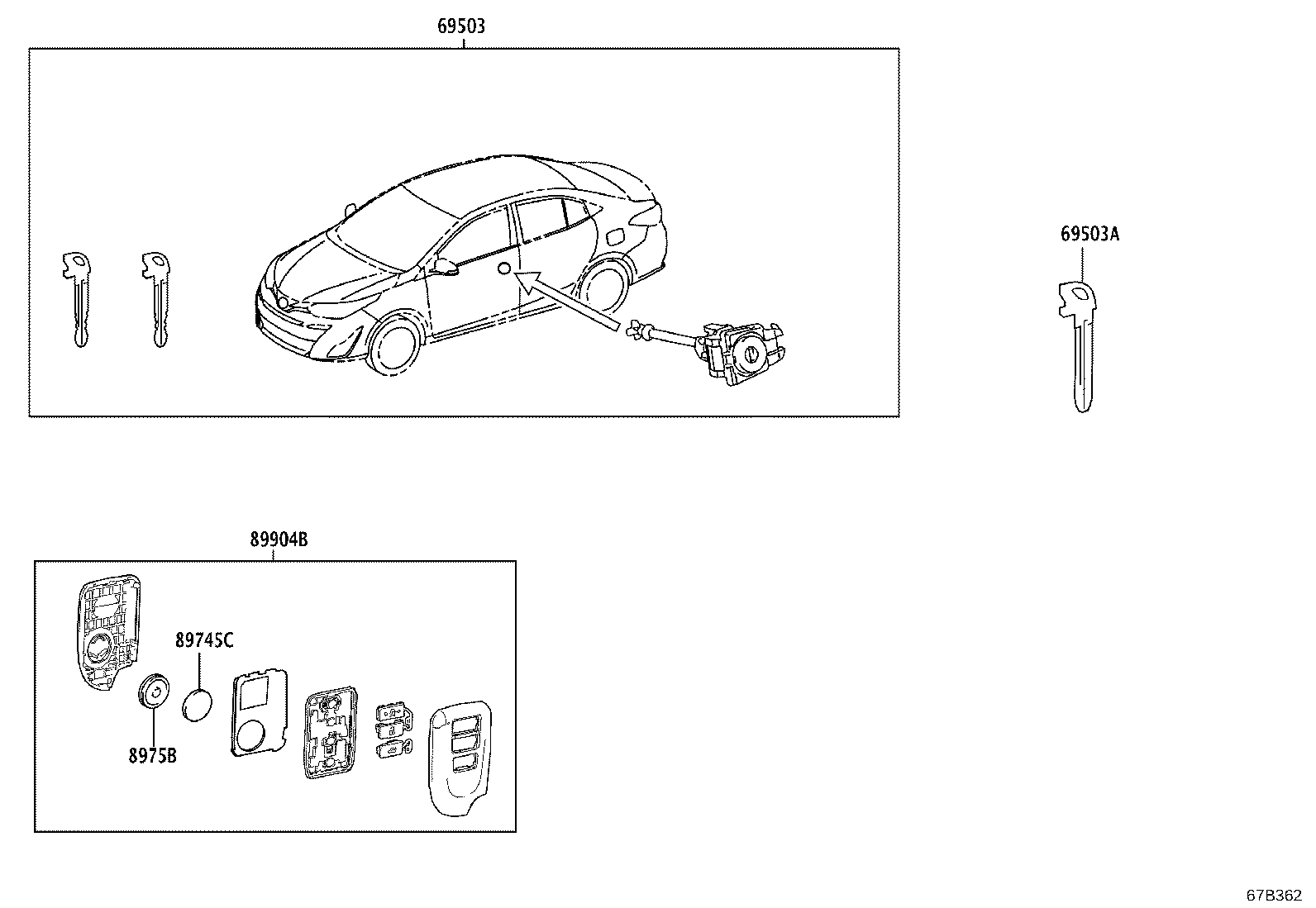

Figure 67B359 67B359 2021-01 → — Figure 67B360 67B360 2021-01 → — Figure 67B362 67B362 2021-01 → — Figure 67B363 67B363 2021-01 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
8975B Cover, Transmitter Battery Housing
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
