Toyota Vios/Yaris

2021-01 → present · chassis NSP151 · catalogue 14H310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

23 part groups · 4 illustrations

Illustrations

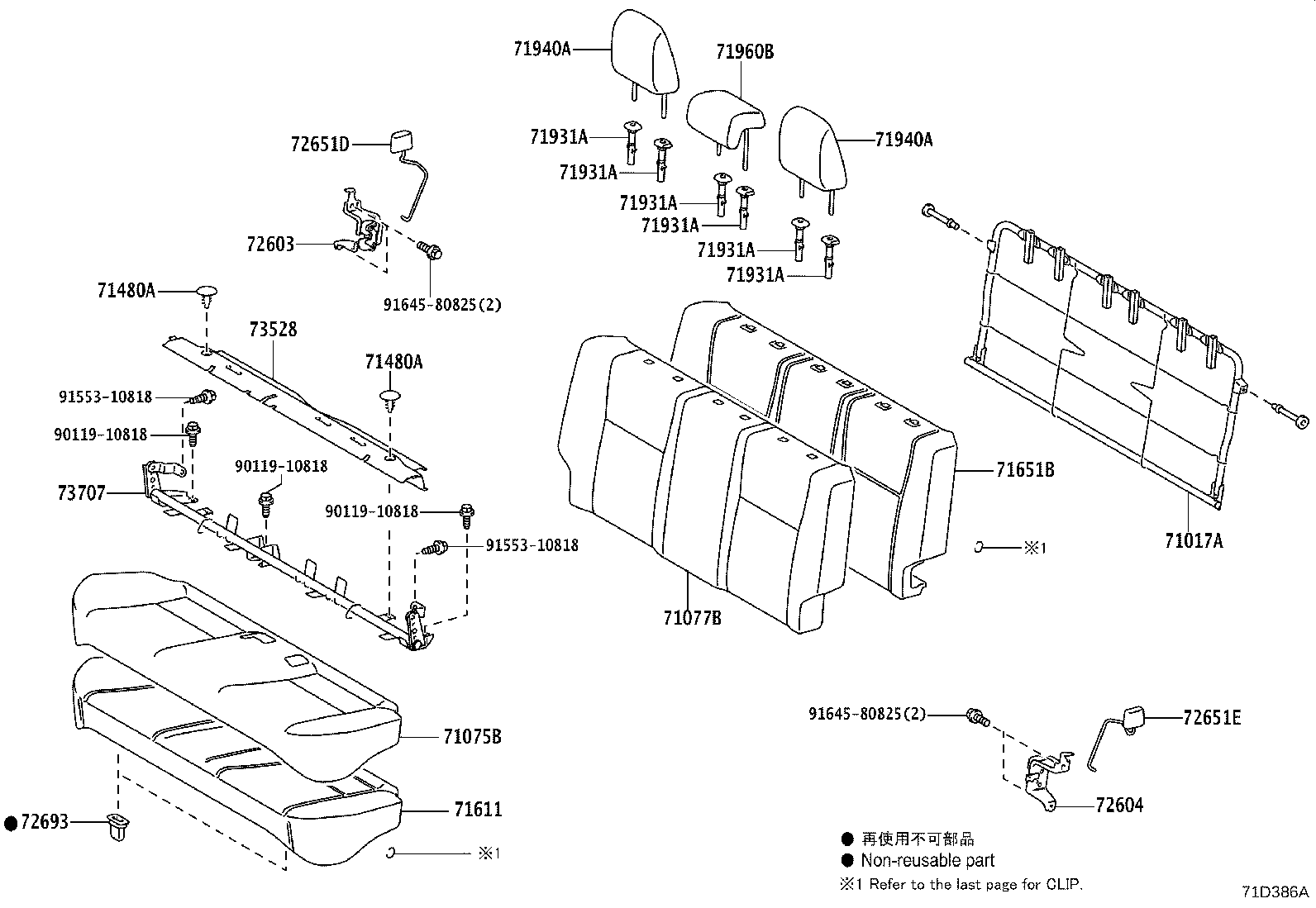

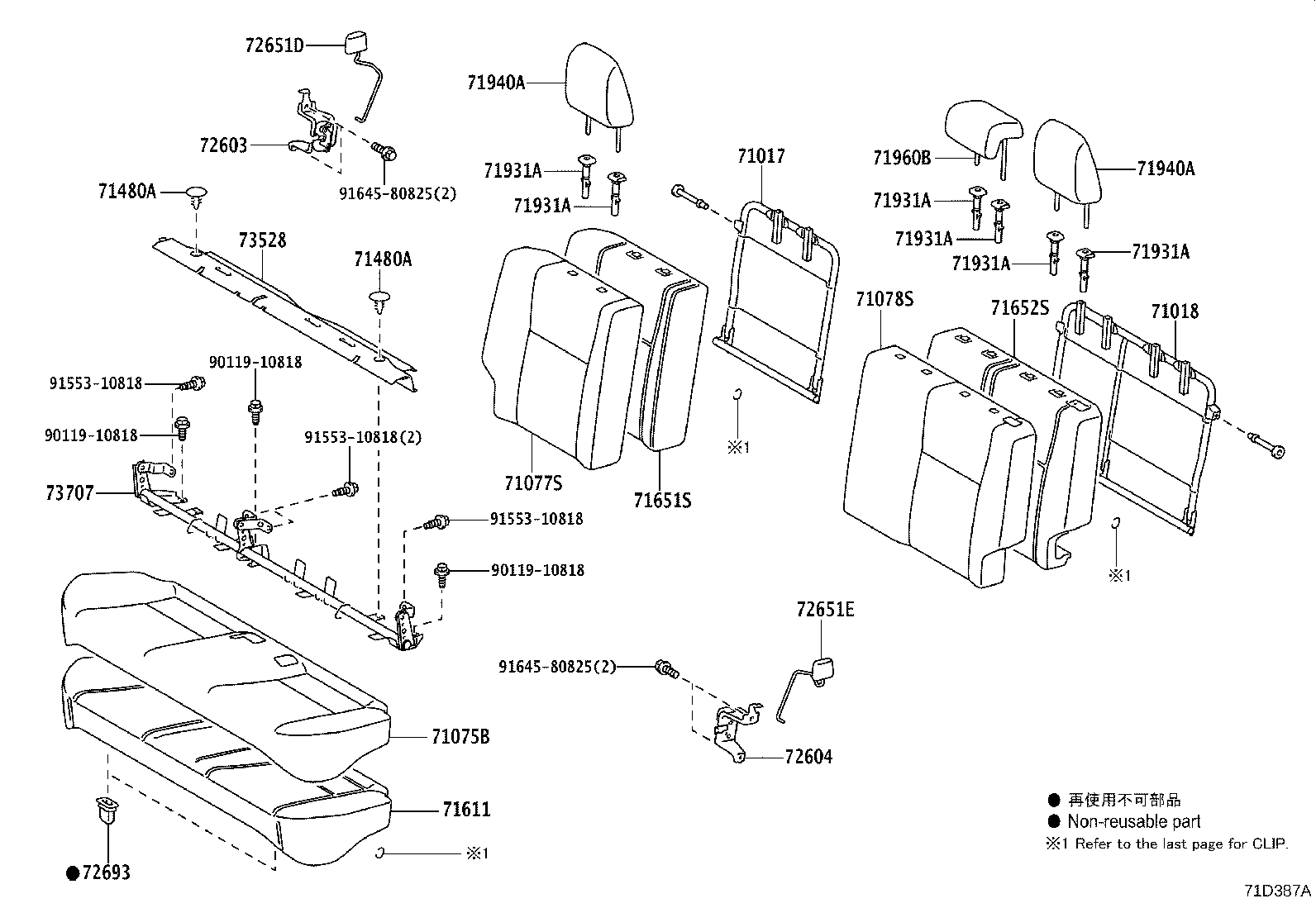

Figure 71D385A 71D385A 2021-01 → — Figure 71D386A 71D386A 2021-01 → — Figure 71D387A 71D387A 2021-01 → — Figure 71A762A 71A762A 2021-01 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71398A Holder, Rear Seatback
71480A Clip (FOR REAR SEATBACK)
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72651D Rod, Rear Seatback Lock, RH
72651E Rod, Rear Seatback Lock, LH
72693 Hook, Rear Seat Cushion Lock
73528 Carpet, Rear Seat Sub Floor, Rear
73707 Bracket Sub-assy, Child Restraint Seat Anchor, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
