Toyota Vios/Yaris

2021-01 → present · chassis NSP151 · catalogue 14H310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

6 part groups · 2 illustrations

Illustrations

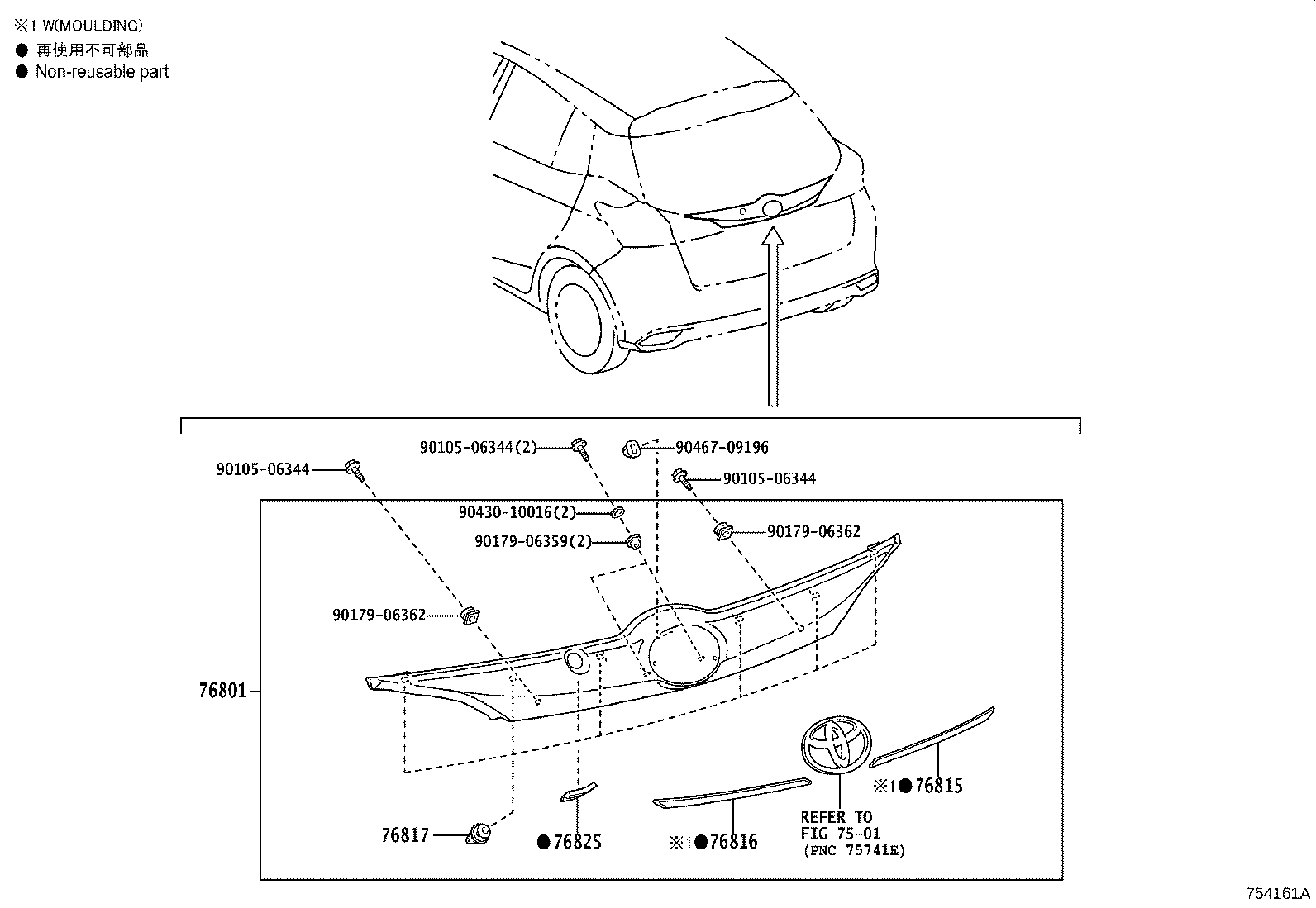

Figure 754160A 754160A 2021-01 → — Figure 754161A 754161A 2021-01 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76815 Moulding, Back Door Outside Garnish, Lower RH
76816 Moulding, Back Door Outside Garnish, Lower LH
76817 Clip, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
