Toyota Vios/Yaris

2021-01 → present · chassis NSP151 · catalogue 14H310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

11 part groups · 2 illustrations

Illustrations

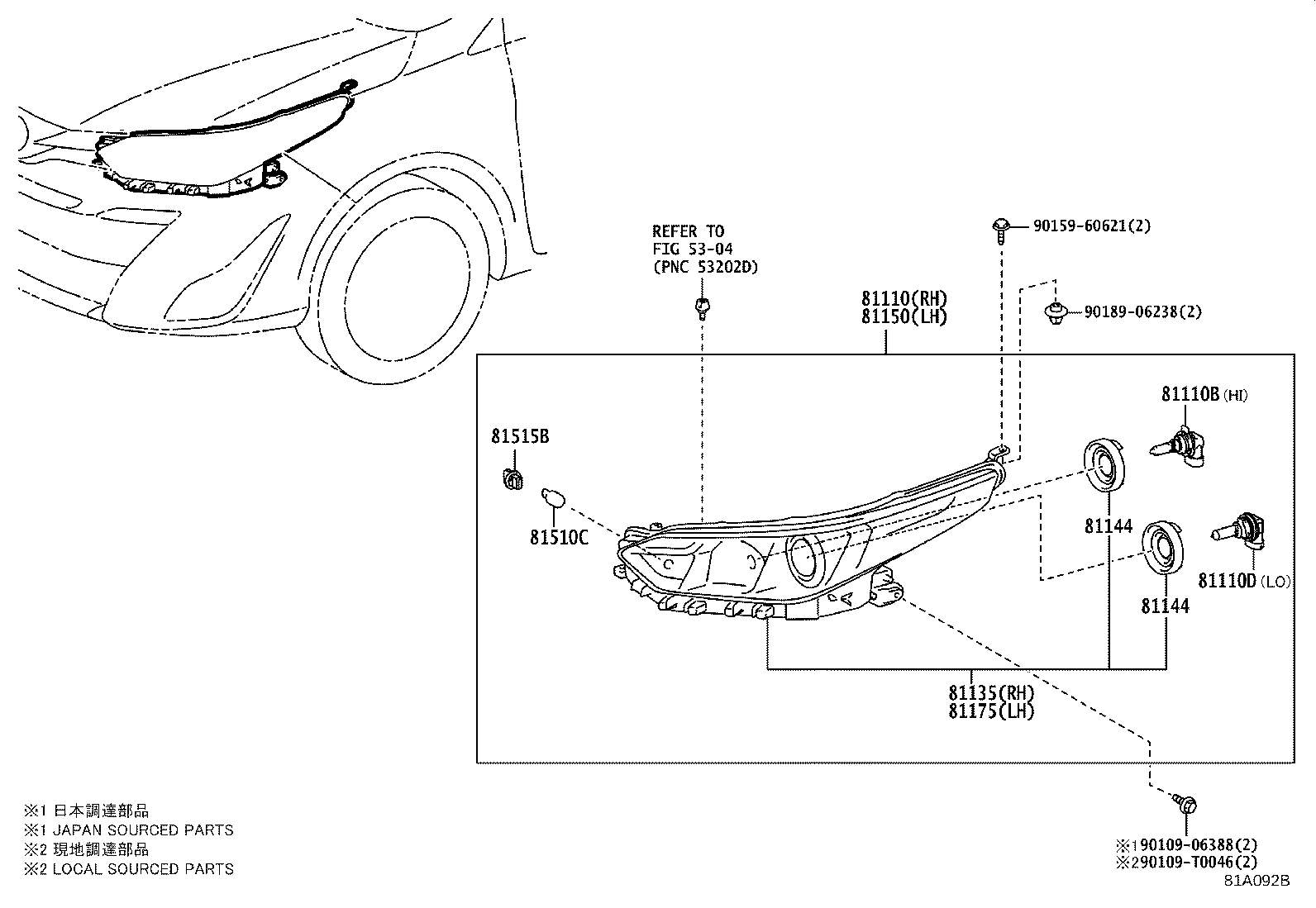

Figure 81A091B 81A091B 2021-01 → — Figure 81A092B 81A092B 2021-01 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
