Toyota Vios/Yaris
2021-01 → present · chassis NSP151 · catalogue 14H310 · General
Supported model
Data version 2020-12

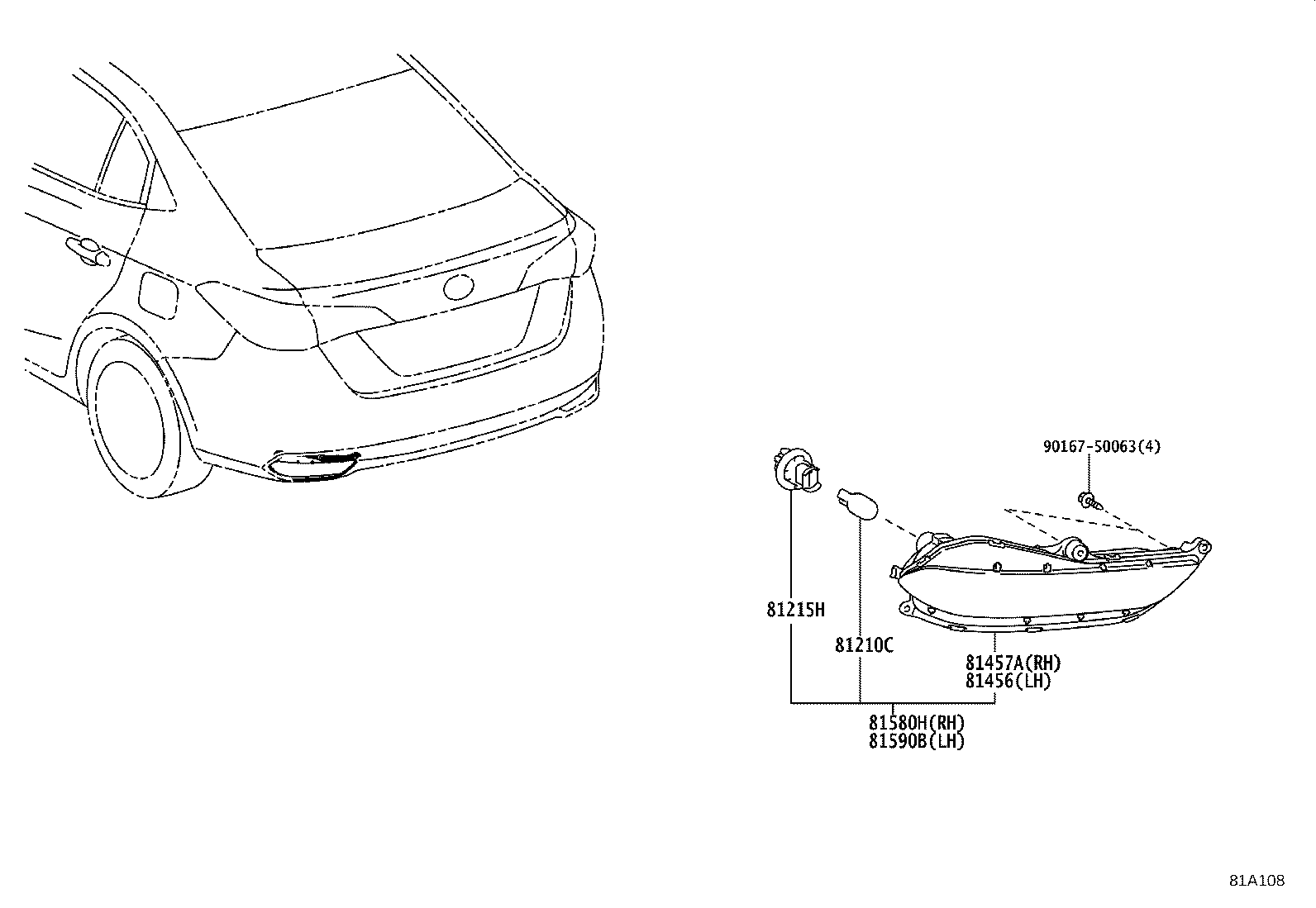

Rear Fog Lamp
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81210C | Bulb, Rear Fog Lamp |
| 81215H | Socket, Rear Fog Lamp |
| 81456 | Lens & Body, Rear Fog Lamp, LH |
| 81457A | Lens & Body, Rear Fog Lamp, RH |
| 81580H | Lamp Assy, Rear Fog, RH |
| 81590B | Lamp Assy, Rear Fog, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
