Factory parts data · Europe

Toyota Vios/Yaris

2021-01 → present · chassis NSP151 · catalogue 14H310 · General

Supported model Data version 2020-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

4 part groups · 2 illustrations

Illustrations

Figure 81A101

81A101 2021-01 → —

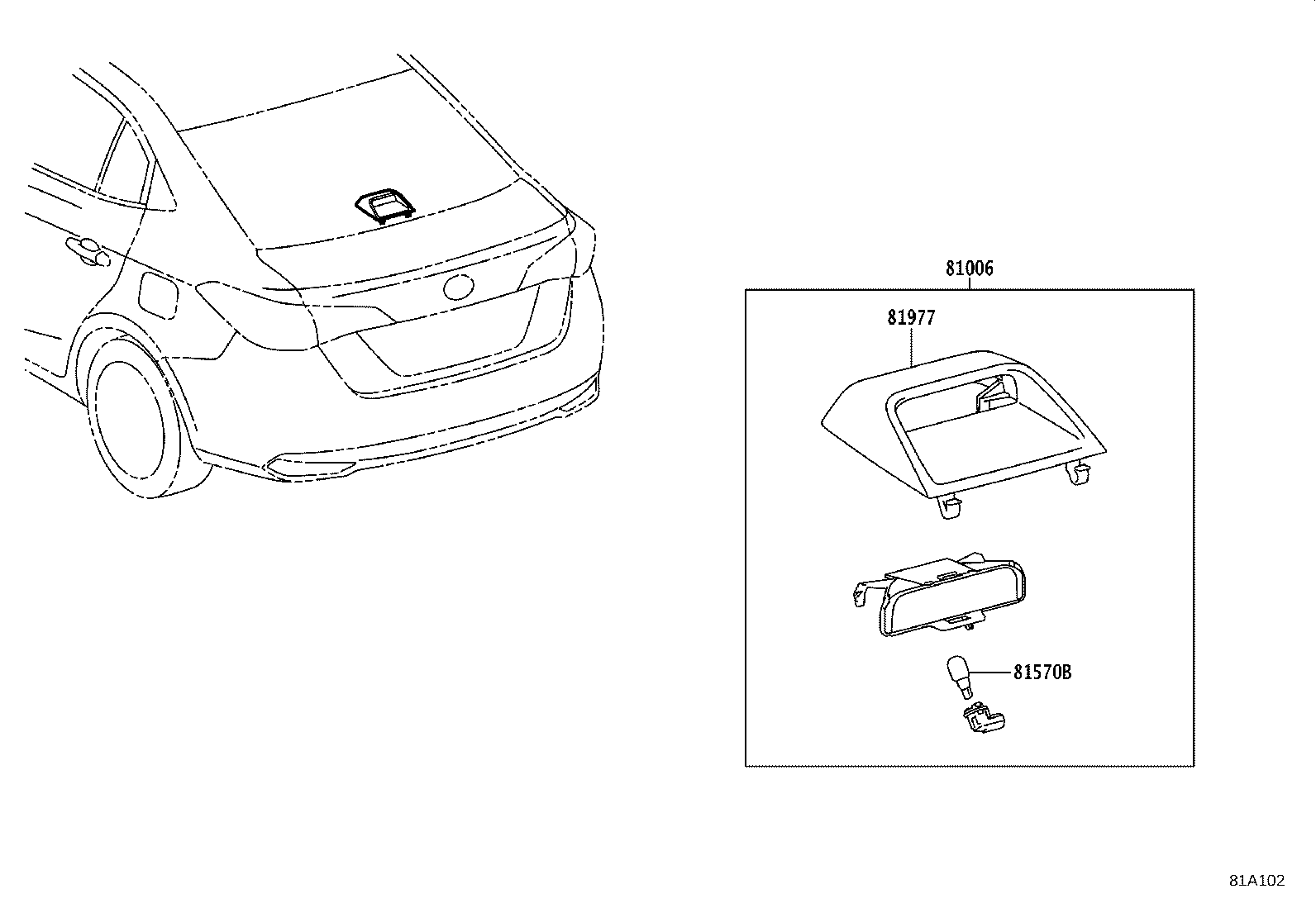

Figure 81A102

81A102 2021-01 → —

Part groups

PNC	Description
81006	Lamp Set, Stop Center
81570B	Bulb (FOR CENTER STOP LAMP)
81574	Cover, Center Stop Lamp
81977	Cover, Center Stop Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
