Toyota Vios/Yaris
2021-01 → present · chassis NSP151 · catalogue 14H310 · General
Supported model
Data version 2020-12

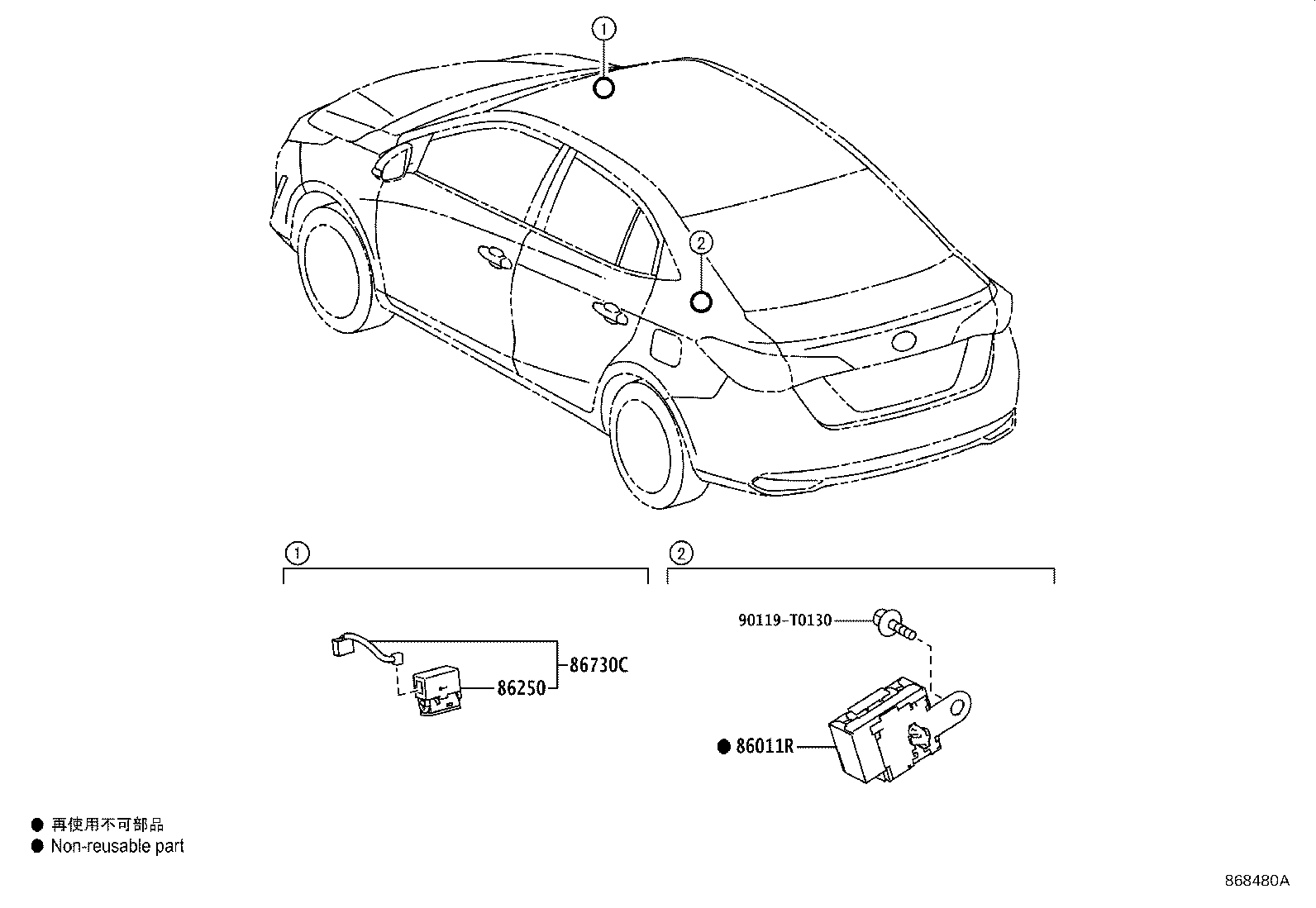

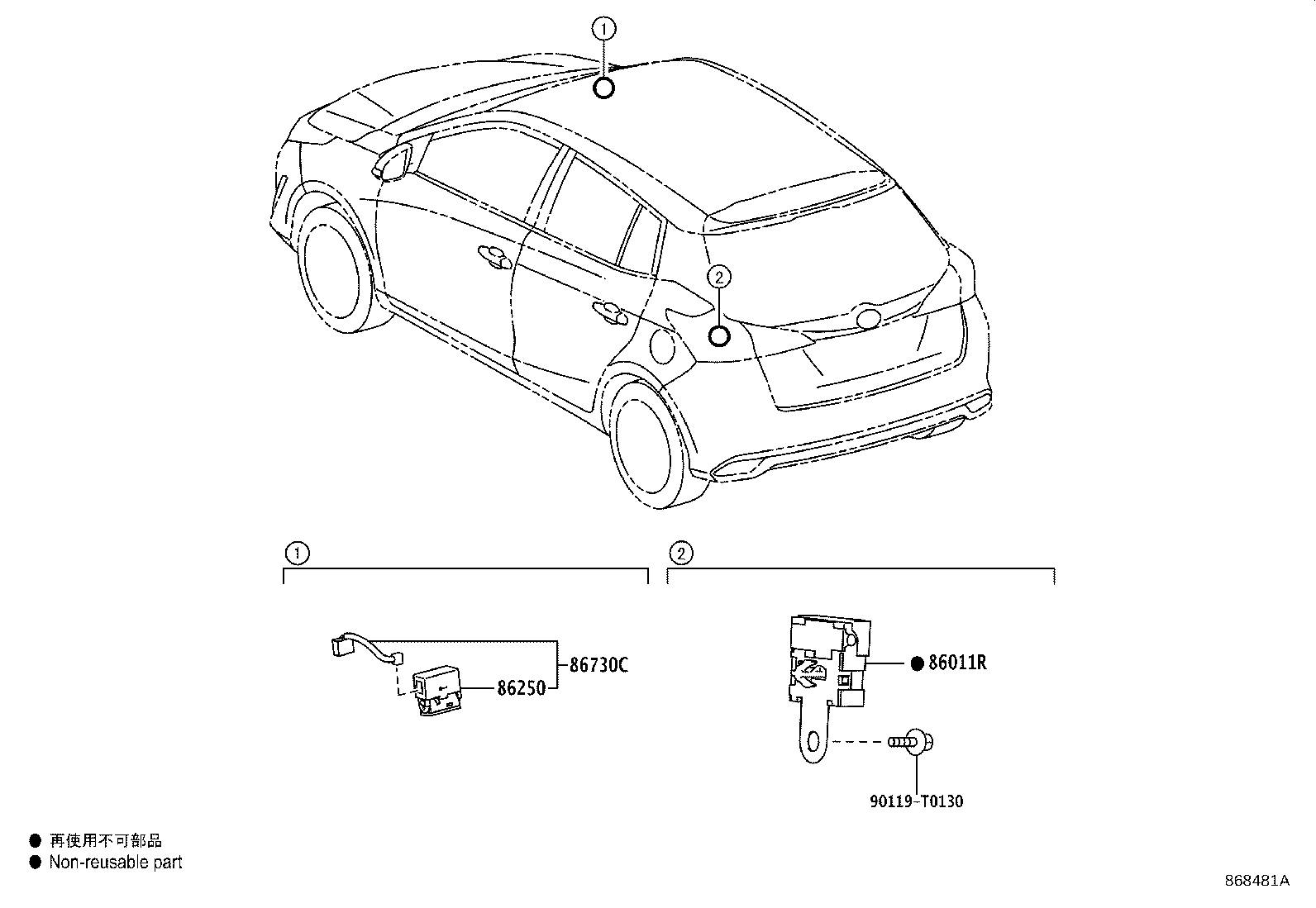

Radio Receiver & Amplifier & Condenser
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011R | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86250 | Microphone Assy, Amplifier |
| 86730C | Microphone Assy, Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
