Toyota Corolla (CHINA)
2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General
Discontinued model
Data version 2017-08

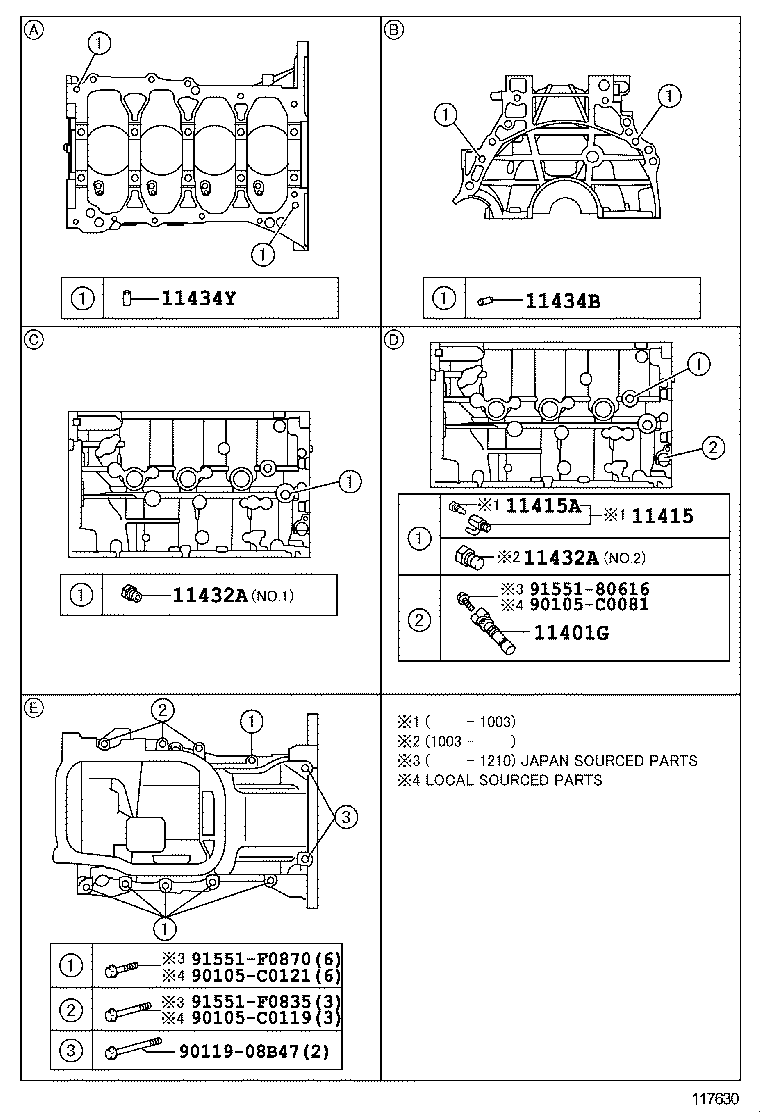

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11401G — Sensor, Crank Position | ||||
| 90919-05070 |
Sensor, Crank Position
2007-05 → 2012-10
ended
|
1ZRFE ZRE120 | — | |
| 90919-05070 |
Sensor, Crank Position
2012-10 → —
|
1ZRFE ZRE120 | — | |
| 11415 — Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) | ||||
| 90910-09107 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2004-02 → 2007-05
ended
|
1ZZFE ZZE122 | — | |
| 90910-09129 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2007-05 → 2010-03
ended
|
1ZRFE ZRE120 | — | |
| 11415A — Plug, Water Drain Cock(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2004-02 → 2007-05
ended
|
1ZZFE ZZE122 | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2007-05 → 2010-03
ended
|
1ZRFE ZRE120 | — | |
| 11432A — Plug, W/Head Taper Screw, NO.1 | ||||
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2010-03 → 2012-10
ended
|
1ZRFE ZRE120 | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2007-05 → 2012-10
ended
|
1ZRFE ZRE120 | — | |
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2012-10 → 2017-02
ended
|
1ZRFE ZRE120 | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2012-10 → 2017-02
ended
|
1ZRFE ZRE120 | — | |
| 11434B — Pin, Straight(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2007-05 → 2012-10
ended
|
1ZRFE ZRE120 | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2012-10 → —
|
1ZRFE ZRE120 | — | |
| 11434Y — Pin, Straight(FOR OIL PAN) | ||||
| 90250-08074 note |
Pin, Straight(FOR OIL PAN)
2007-05 → 2010-09
ended
|
1ZRFE ZRE120 | — | |
| 90250-08120 note |
Pin, Straight(FOR OIL PAN)
2010-09 → 2012-10
ended
|
1ZRFE ZRE120 | — | |
| 90250-C0011 note |
Pin, Straight(FOR OIL PAN)
2010-09 → 2012-10
ended
|
1ZRFE ZRE120 | — | |
| 90250-C0011 note |
Pin, Straight(FOR OIL PAN)
2012-10 → —
|
1ZRFE ZRE120 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
