Toyota Corolla (CHINA)
2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General
Discontinued model
Data version 2017-08

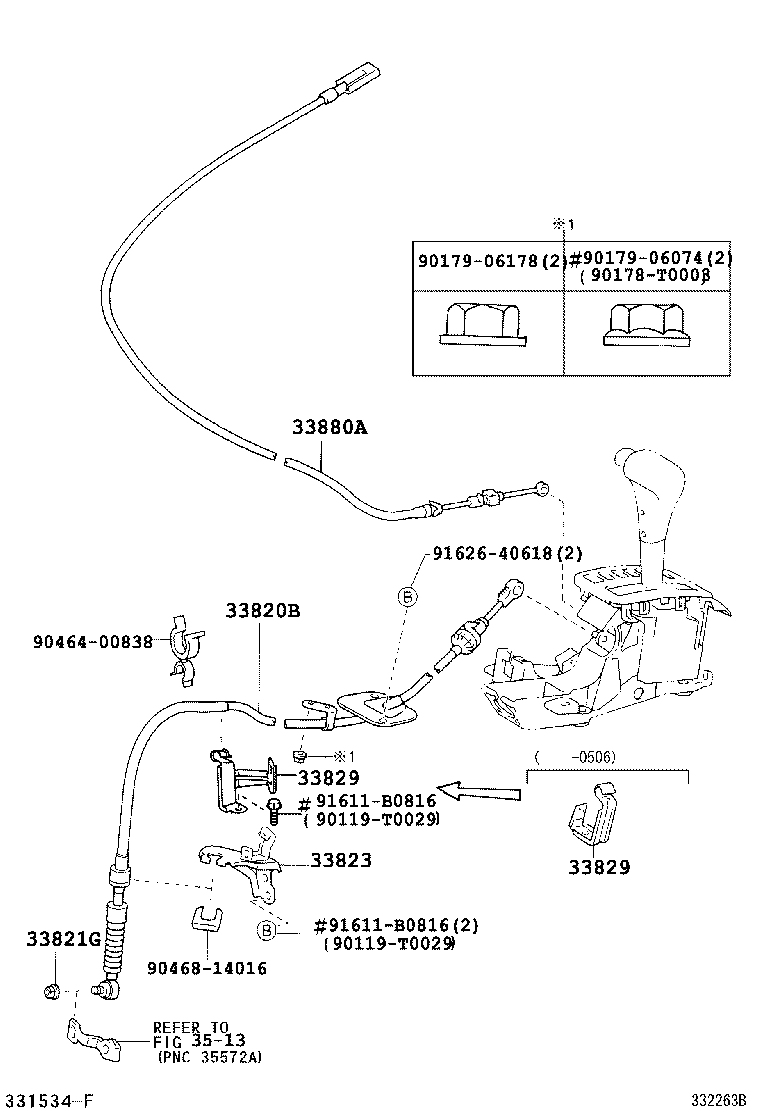

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-02250 |
Cable Assy, Transmission Control
2005-02 → 2007-05
ended
|
ZZE122 5F | — | |
| 33820-02260 |
Cable Assy, Transmission Control
2004-02 → 2004-05
ended
|
ZZE122 | — | |
| 33820-12A70 |
Cable Assy, Transmission Control
2004-06 → 2005-06
ended
|
ZZE122 4FC | — | |
| 33820-12B70 |
Cable Assy, Transmission Control
2005-06 → 2007-05
ended
|
ZZE122 4FC | — | |
| 33820-02620 |
Cable Assy, Transmission Control
2007-05 → 2012-10
ended
|
ZRE120 4FC | — | |
| 33820-02630 |
Cable Assy, Transmission Control
2007-05 → 2012-10
ended
|
ZRE120 5F | — | |
| 33820-02620 |
Cable Assy, Transmission Control
2012-10 → —
|
ZRE120 4FC | — | |
| 33820-02630 |
Cable Assy, Transmission Control
2012-10 → —
|
ZRE120 5F | — | |
| 33821G — Nut (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2004-02 → 2007-05
ended
|
ZZE122 4FC | — | |
| 90179-08061 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2007-05 → 2012-10
ended
|
ZRE120 4FC | — | |
| 90179-08061 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2012-10 → —
|
ZRE120 4FC | — | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-02070 |
Bracket, Transmission Control Cable, NO.1
2004-02 → 2007-05
ended
|
ZZE122 4FC | — | |
| 33823-02070 |
Bracket, Transmission Control Cable, NO.1
2007-05 → 2012-10
ended
|
ZRE120 4FC | — | |
| 33823-02070 |
Bracket, Transmission Control Cable, NO.1
2012-10 → —
|
ZRE120 4FC | — | |
| 33829 — Support, Transmission Control Cable | ||||
| 33829-02020 |
Support, Transmission Control Cable
2004-02 → 2005-06
ended
|
ZZE122 4FC | — | |
| 33829-12110 |
Support, Transmission Control Cable
2005-06 → 2007-05
ended
|
ZZE122 4FC | — | |
| 33829-02140 |
Support, Transmission Control Cable
2007-05 → 2012-10
ended
|
ZRE120 4FC | — | |
| 33829-02140 |
Support, Transmission Control Cable
2012-10 → —
|
ZRE120 4FC | — | |
| 33880A — Cable Assy, Parking Lock (FOR FLOOR SHIFT) | ||||
| 33880-12060 |
Cable Assy, Parking Lock (FOR FLOOR SHIFT)
2004-02 → 2007-05
ended
|
ZZE122 4FC | — | |
| 33880-12120 |
Cable Assy, Parking Lock (FOR FLOOR SHIFT)
2007-05 → 2012-10
ended
|
ZRE120 4FC | — | |
| 33880-12120 |
Cable Assy, Parking Lock (FOR FLOOR SHIFT)
2012-10 → —
|
ZRE120 4FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
