Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

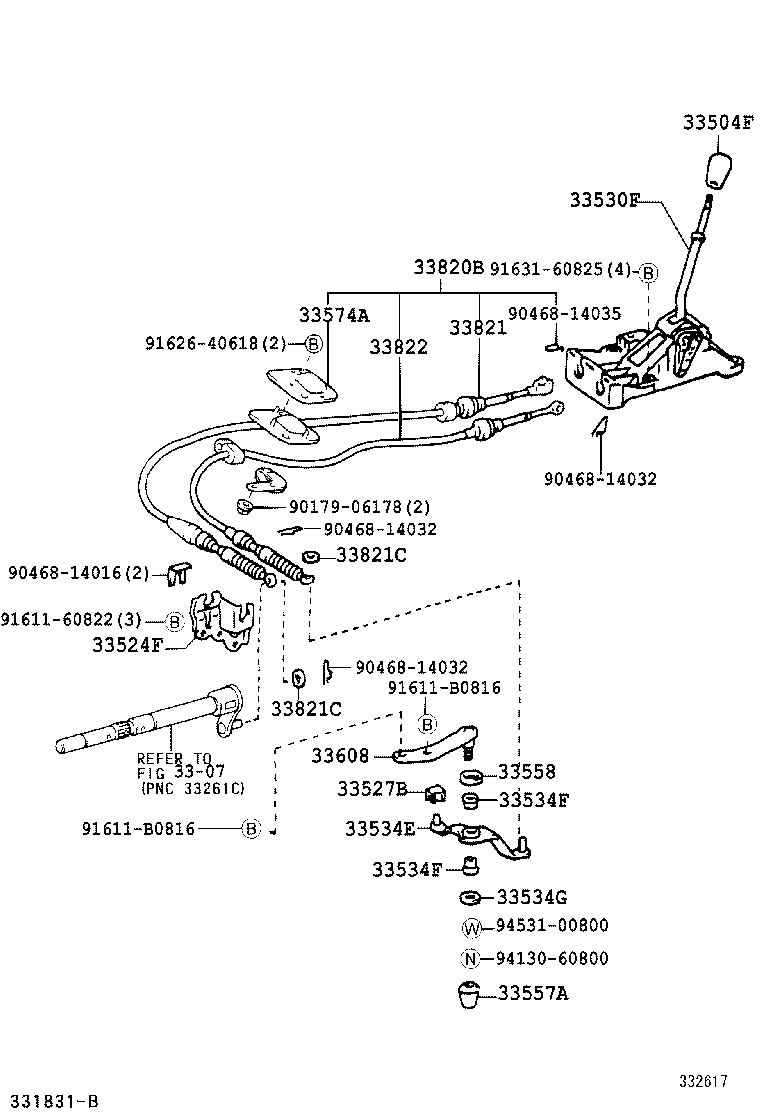

Exploded illustration 332617 33504F — KNOB SUB-ASSY, SHIFT LEVER (10 parts) 33530F — LEVER ASSY, SHIFT (FOR FLOOR SHIFT) (3 parts) 9163160825 — not listed in this catalogue 3307 — not listed in this catalogue 9046814032 — not listed in this catalogue 9046814032 — not listed in this catalogue 9046814035 — not listed in this catalogue 33557A — COVER, SELECTING BELLCRANK DUST, NO.1 (5 parts) 33574A — RETAINER, SHIFT CABLE GROMMET, NO.1 (1 parts) 33821 — CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) (1 parts) 9162640618 — not listed in this catalogue 9017906178 — not listed in this catalogue 33822 — CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) (1 parts) 33821C — WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) (2 parts) 9413060800 — not listed in this catalogue 91611B0816 — not listed in this catalogue 33821C — WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) (2 parts) 33608 — SUPPORT SUB-ASSY, SELECTING BELLCRANK (1 parts) 33534E — CRANK, SELECTING BELL, NO.2 (4 parts) 33527B — BUSH (FOR CONTROL SHIFT LEVER) (6 parts) 33558 — COVER, SELECTING BELLCRANK DUST, NO.2 (5 parts) 33534F — BUSH (FOR SELECTING BELLCRANK NO.2) (5 parts) 33820B — CABLE ASSY, TRANSMISSION CONTROL (8 parts) 33524F — BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT) (3 parts) 9161160822 — not listed in this catalogue 9046814016 — not listed in this catalogue 33534F — BUSH (FOR SELECTING BELLCRANK NO.2) (5 parts) 33534G — WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) (3 parts) 9453100800 — not listed in this catalogue 9046814032 — not listed in this catalogue 91611B0816 — not listed in this catalogue
332617 · 17 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
33504F — Knob Sub-assy, Shift Lever
33504-12180-L0 note Knob Sub-assy, Shift Lever
2005-02 → 2007-05 ended
ZZE122 5F GLI —
33504-22140-B2 note Knob Sub-assy, Shift Lever
2005-02 → 2007-05 ended
ZZE122 5F GLXS —
33504-22140-E2 note Knob Sub-assy, Shift Lever
2005-02 → 2007-05 ended
ZZE122 5F GLXI —
33504-22170-E1 note Knob Sub-assy, Shift Lever
2004-02 → 2007-05 ended
ZZE122 4FC GLI —
33504-30281-B1 note Knob Sub-assy, Shift Lever
2004-08 → 2007-05 ended
ZZE122 4FC GLXS —
33504-30281-E0 note Knob Sub-assy, Shift Lever
2004-02 → 2007-05 ended
ZZE122 4FC GLXI —
33504-12180-L0 note Knob Sub-assy, Shift Lever
2007-05 → 2012-10 ended
ZRE120 5F —
33504-22170-E1 note Knob Sub-assy, Shift Lever
2007-05 → 2012-10 ended
ZRE120 4FC —
33504-12180-B7 note Knob Sub-assy, Shift Lever
2012-10 → 2017-02 ended
ZRE120 5F —
33504-YK010-B1 note Knob Sub-assy, Shift Lever
2012-10 → 2017-02 ended
ZRE120 4FC —
33524F — Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
33524-42020 Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2005-02 → 2007-05 ended
ZZE122 5F —
33524-02030 Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2007-05 → 2012-10 ended
ZRE120 5F —
33524-02030 Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2012-10 → —
ZRE120 5F —
33527B — Bush (FOR CONTROL SHIFT LEVER)
33557-33010 Bush (FOR CONTROL SHIFT LEVER)
2005-02 → 2007-05 ended
ZZE122 5F —
33557-0D010 Bush (FOR CONTROL SHIFT LEVER)
2008-02 → 2012-10 ended
ZRE120 5F —
33557-33010 Bush (FOR CONTROL SHIFT LEVER)
2007-05 → 2008-02 ended
ZRE120 5F —
33557-0D010 Bush (FOR CONTROL SHIFT LEVER)
2012-10 → 2013-10 ended
ZRE120 5F —
33557-0D040 Bush (FOR CONTROL SHIFT LEVER)
2013-10 → 2015-11 ended
ZRE120 5F —
33557-0D041 Bush (FOR CONTROL SHIFT LEVER)
2015-12 → —
ZRE120 5F —
33530F — Lever Assy, Shift (FOR FLOOR SHIFT)
33530-12770 Lever Assy, Shift (FOR FLOOR SHIFT)
2005-02 → 2007-05 ended
ZZE122 5F —
33530-12B30 Lever Assy, Shift (FOR FLOOR SHIFT)
2007-05 → 2012-10 ended
ZRE120 5F —
33530-12B30 Lever Assy, Shift (FOR FLOOR SHIFT)
2012-10 → —
ZRE120 5F —
33534E — Crank, Selecting Bell, NO.2
33534-42010 Crank, Selecting Bell, NO.2
2005-02 → 2007-05 ended
ZZE122 5F —
33534-02010 Crank, Selecting Bell, NO.2
2008-02 → 2012-10 ended
ZRE120 5F —
33534-12120 Crank, Selecting Bell, NO.2
2007-05 → 2008-02 ended
ZRE120 5F —
33534-02010 Crank, Selecting Bell, NO.2
2012-10 → —
ZRE120 5F —
33534F — Bush (FOR SELECTING BELLCRANK NO.2)
90386-12022 Bush (FOR SELECTING BELLCRANK NO.2)
2005-02 → 2007-05 ended
ZZE122 5F —
90386-12022 Bush (FOR SELECTING BELLCRANK NO.2)
2007-05 → 2008-02 ended
ZRE120 5F —
90386-C0001 Bush (FOR SELECTING BELLCRANK NO.2)
2008-02 → 2012-10 ended
ZRE120 5F —
90386-C0001 Bush (FOR SELECTING BELLCRANK NO.2)
2012-10 → 2013-10 ended
ZRE120 5F —
90386-C0002 Bush (FOR SELECTING BELLCRANK NO.2)
2013-10 → —
ZRE120 5F —
33534G — Washer, Plate (FOR SELECTING BELLCRANK NO.2)
90201-08028 Washer, Plate (FOR SELECTING BELLCRANK NO.2)
2005-02 → 2007-05 ended
ZZE122 5F —
90201-08028 Washer, Plate (FOR SELECTING BELLCRANK NO.2)
2007-05 → 2012-10 ended
ZRE120 5F —
90201-08028 Washer, Plate (FOR SELECTING BELLCRANK NO.2)
2012-10 → —
ZRE120 5F —
33557A — Cover, Selecting Bellcrank Dust, NO.1
33557-32010 Cover, Selecting Bellcrank Dust, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33557-0D030 Cover, Selecting Bellcrank Dust, NO.1
2008-02 → 2012-10 ended
ZRE120 5F —
33557-32010 Cover, Selecting Bellcrank Dust, NO.1
2007-05 → 2008-02 ended
ZRE120 5F —
33557-0D030 Cover, Selecting Bellcrank Dust, NO.1
2012-10 → 2015-12 ended
ZRE120 5F —
33557-0D031 Cover, Selecting Bellcrank Dust, NO.1
2015-12 → —
ZRE120 5F —
33558 — Cover, Selecting Bellcrank Dust, NO.2
33558-10030 Cover, Selecting Bellcrank Dust, NO.2
2005-02 → 2007-05 ended
ZZE122 5F —
33558-0D010 Cover, Selecting Bellcrank Dust, NO.2
2008-02 → 2012-10 ended
ZRE120 5F —
33558-10030 Cover, Selecting Bellcrank Dust, NO.2
2007-05 → 2008-02 ended
ZRE120 5F —
33558-0D010 Cover, Selecting Bellcrank Dust, NO.2
2012-10 → 2015-12 ended
ZRE120 5F —
33558-0D011 Cover, Selecting Bellcrank Dust, NO.2
2015-12 → —
ZRE120 5F —
33574A — Retainer, Shift Cable Grommet, NO.1
33574-12100 Retainer, Shift Cable Grommet, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33608 — Support Sub-assy, Selecting Bellcrank
33608-42010 Support Sub-assy, Selecting Bellcrank
2005-02 → 2007-05 ended
ZZE122 5F —
33820B — Cable Assy, Transmission Control
33820-02250 Cable Assy, Transmission Control
2005-02 → 2007-05 ended
ZZE122 5F —
33820-02260 Cable Assy, Transmission Control
2004-02 → 2004-05 ended
ZZE122 —
33820-12A70 Cable Assy, Transmission Control
2004-06 → 2005-06 ended
ZZE122 4FC —
33820-12B70 Cable Assy, Transmission Control
2005-06 → 2007-05 ended
ZZE122 4FC —
33820-02620 Cable Assy, Transmission Control
2007-05 → 2012-10 ended
ZRE120 4FC —
33820-02630 Cable Assy, Transmission Control
2007-05 → 2012-10 ended
ZRE120 5F —
33820-02620 Cable Assy, Transmission Control
2012-10 → —
ZRE120 4FC —
33820-02630 Cable Assy, Transmission Control
2012-10 → —
ZRE120 5F —
33821 — Cable Transmission Control Shift (FOR FLOOR SHIFT)
33821-02330 Cable Transmission Control Shift (FOR FLOOR SHIFT)
2005-02 → 2007-05 ended
ZZE122 5F —
33821C — Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
90201-08077 note Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
2005-02 → 2007-05 ended
ZZE122 5F —
90201-08267 note Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
2005-02 → 2007-05 ended
ZZE122 5F —
33822 — Cable Transmission Control Select (FOR FLOOR SHIFT)
33822-02130 Cable Transmission Control Select (FOR FLOOR SHIFT)
2005-02 → 2007-05 ended
ZZE122 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
