Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

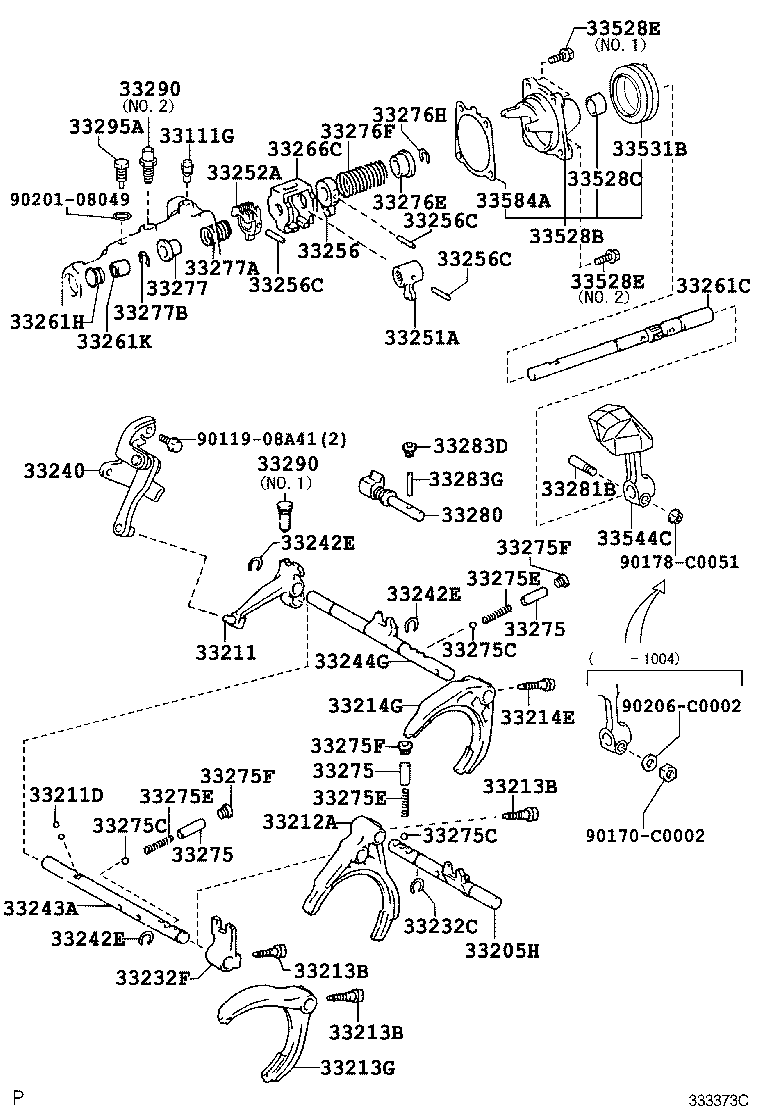

Exploded illustration 333373C 33290 — BALL ASSY, LOCK, NO.1 (8 parts) 33290 — BALL ASSY, LOCK, NO.1 (8 parts) 33213G — FORK, GEAR SHIFT, NO.2 (3 parts) 33213B — BOLT(FOR SHIFT FORK SET) (4 parts) 33277B — RING, E (FOR SELECT SPRING NO.2 SEAT) (4 parts) 33277 — SEAT, SELECT SPRING, NO.2 (5 parts) 33277A — SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) (4 parts) 33212A — FORK, GEAR SHIFT, NO.1 (3 parts) 33275C — BALL (FOR SHIFT DETENT) (4 parts) 33232C — RING, SNAP (FOR 1ST & 2ND SHIFT HEAD) (3 parts) 33256C — PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) (4 parts) 33528B — COVER, CONTROL SHAFT (5 parts) 33256C — PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) (4 parts) 33531B — BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) (4 parts) 33213B — BOLT(FOR SHIFT FORK SET) (4 parts) 9011908A41 — not listed in this catalogue 33213B — BOLT(FOR SHIFT FORK SET) (4 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (5 parts) 33232F — HEAD, GEAR SHIFT, NO.1 (6 parts) 33243A — SHAFT, GEAR SHIFT FORK, NO.2 (5 parts) 33256C — PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) (4 parts) 33251A — LEVER, SHIFT, INNER NO.1 (4 parts) 33283D — PLUG (FOR REVERSE RESTRICT PIN) (4 parts) 33261C — SHAFT, SHIFT & SELECT LEVER (7 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (3 parts) 33261K — BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT) (5 parts) 33261H — SEAL, OIL (FOR SHIFT & SELECT LEVER SHAFT) (3 parts) 33280 — PIN ASSY, REVERSE RESTRICT (4 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (3 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (5 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (4 parts) 33275C — BALL (FOR SHIFT DETENT) (4 parts) 33214E — BOLT(FOR GEAR SHIFT FORK LOCK) (4 parts) 33214G — FORK, GEAR SHIFT, NO.3 (3 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (3 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (3 parts) 33211 — FORK, REVERSE SHIFT (5 parts) 33244G — SHAFT, GEAR SHIFT FORK, NO.3 (5 parts) 33240 — BRACKET ASSY, REVERSE SHIFT ARM (5 parts) 33211D — BALL(FOR REVERSE SHIFT FORK) (4 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (3 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (3 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (4 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (4 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (5 parts) 33275C — BALL (FOR SHIFT DETENT) (4 parts) 33276E — SEAT, SELECT SPRING, NO.1 (5 parts) 33276H — RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) (5 parts) 33276F — SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) (4 parts) 33266C — PLATE, SHIFT INTERLOCK (5 parts) 33256 — LEVER, SELECT INNER (4 parts) 33528E — BOLT (FOR CONTROL SHAFT COVER) (8 parts) 33283G — PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) (3 parts) 33205H — SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 (4 parts) 33584A — GASKET, CONTROL SHIFT LEVER RETAINER (4 parts) 33528C — SEAL, OIL (FOR CONTROL SHAFT COVER) (4 parts) 90170C0002 — not listed in this catalogue 33544C — DAMPER, SHIFT LEVER (4 parts) 33281B — PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) (3 parts) 90206C0002 — not listed in this catalogue 33111G — PLUG, BREATHER(FOR MANUAL TRANSMISSION) (5 parts) 9020108049 — not listed in this catalogue 33252A — LEVER, SHIFT, INNER NO.2 (5 parts) 33295A — SHAFT, REVERSE RESTRICT (3 parts) 33528E — BOLT (FOR CONTROL SHAFT COVER) (8 parts) 90178C0051 — not listed in this catalogue
333373C · 61 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
196 parts on this figure
Part number Description Fitment Price
33111G — Plug, Breather(FOR MANUAL TRANSMISSION)
90930-03133 Plug, Breather(FOR MANUAL TRANSMISSION)
2005-02 → 2007-05 ended
ZZE122 5F —
90930-03133 Plug, Breather(FOR MANUAL TRANSMISSION)
2007-05 → 2008-02 ended
ZRE120 5F —
90930-C3008 Plug, Breather(FOR MANUAL TRANSMISSION)
2008-02 → 2012-10 ended
ZRE120 5F —
90930-C3008 Plug, Breather(FOR MANUAL TRANSMISSION)
2012-10 → 2013-10 ended
ZRE120 5F —
90930-C3017 Plug, Breather(FOR MANUAL TRANSMISSION)
2013-10 → —
ZRE120 5F —
33205H — Shaft Sub-assy, Gear Shift Fork, NO.1
33205-52010 Shaft Sub-assy, Gear Shift Fork, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33205-0D010 Shaft Sub-assy, Gear Shift Fork, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
33205-0D010 Shaft Sub-assy, Gear Shift Fork, NO.1
2012-10 → 2013-12 ended
ZRE120 5F —
33205-0D020 Shaft Sub-assy, Gear Shift Fork, NO.1
2013-12 → —
ZRE120 5F —
33211 — Fork, Reverse Shift
33211-12021 Fork, Reverse Shift
2005-02 → 2007-05 ended
ZZE122 5F —
33211-0D040 Fork, Reverse Shift
2008-02 → 2012-10 ended
ZRE120 5F —
33211-12021 Fork, Reverse Shift
2007-05 → 2008-02 ended
ZRE120 5F —
33211-0D040 Fork, Reverse Shift
2012-10 → 2013-10 ended
ZRE120 5F —
33211-0D050 Fork, Reverse Shift
2013-10 → —
ZRE120 5F —
33211D — Ball(FOR REVERSE SHIFT FORK)
90360-06004 note Ball(FOR REVERSE SHIFT FORK)
2005-02 → 2007-05 ended
ZZE122 5F —
90360-06004 note Ball(FOR REVERSE SHIFT FORK)
2007-05 → 2008-02 ended
ZRE120 5F —
90360-C0005 note Ball(FOR REVERSE SHIFT FORK)
2008-02 → 2012-10 ended
ZRE120 5F —
90360-C0005 note Ball(FOR REVERSE SHIFT FORK)
2012-10 → —
ZRE120 5F —
33212A — Fork, Gear Shift, NO.1
33212-10013 Fork, Gear Shift, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33212-10013 Fork, Gear Shift, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
33212-10013 Fork, Gear Shift, NO.1
2012-10 → —
ZRE120 5F —
33213B — Bolt(FOR SHIFT FORK SET)
90105-06115 Bolt(FOR SHIFT FORK SET)
2005-02 → 2007-05 ended
ZZE122 5F —
90105-06115 Bolt(FOR SHIFT FORK SET)
2007-05 → 2008-02 ended
ZRE120 5F —
90109-C0009 Bolt(FOR SHIFT FORK SET)
2008-02 → 2012-10 ended
ZRE120 5F —
90109-C0009 Bolt(FOR SHIFT FORK SET)
2012-10 → —
ZRE120 5F —
33213G — Fork, Gear Shift, NO.2
33213-20050 Fork, Gear Shift, NO.2
2005-02 → 2007-05 ended
ZZE122 5F —
33213-20050 Fork, Gear Shift, NO.2
2007-05 → 2012-10 ended
ZRE120 5F —
33213-20050 Fork, Gear Shift, NO.2
2012-10 → —
ZRE120 5F —
33214E — Bolt(FOR GEAR SHIFT FORK LOCK)
90105-06115 Bolt(FOR GEAR SHIFT FORK LOCK)
2005-02 → 2007-05 ended
ZZE122 5F —
90105-06115 Bolt(FOR GEAR SHIFT FORK LOCK)
2007-05 → 2008-02 ended
ZRE120 5F —
90109-C0009 Bolt(FOR GEAR SHIFT FORK LOCK)
2008-02 → 2012-10 ended
ZRE120 5F —
90109-C0009 Bolt(FOR GEAR SHIFT FORK LOCK)
2012-10 → —
ZRE120 5F —
33214G — Fork, Gear Shift, NO.3
33214-20050 Fork, Gear Shift, NO.3
2005-02 → 2007-05 ended
ZZE122 5F —
33214-20050 Fork, Gear Shift, NO.3
2007-05 → 2012-10 ended
ZRE120 5F —
33214-20050 Fork, Gear Shift, NO.3
2012-10 → —
ZRE120 5F —
33232C — Ring, Snap (FOR 1ST & 2ND SHIFT HEAD)
90520-12003 Ring, Snap (FOR 1ST & 2ND SHIFT HEAD)
2005-02 → 2007-05 ended
ZZE122 5F —
90520-12003 Ring, Snap (FOR 1ST & 2ND SHIFT HEAD)
2007-05 → 2012-10 ended
ZRE120 5F —
90520-12003 Ring, Snap (FOR 1ST & 2ND SHIFT HEAD)
2012-10 → —
ZRE120 5F —
33232F — Head, Gear Shift, NO.1
33232-20030 Head, Gear Shift, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33232-0D020 Head, Gear Shift, NO.1
2008-02 → 2008-10 ended
ZRE120 5F —
33232-0D020 Head, Gear Shift, NO.1
2010-05 → 2012-10 ended
ZRE120 5F —
33232-20030 Head, Gear Shift, NO.1
2007-05 → 2008-02 ended
ZRE120 5F —
33232-20030 Head, Gear Shift, NO.1
2008-10 → 2010-05 ended
ZRE120 5F —
33232-0D020 Head, Gear Shift, NO.1
2012-10 → —
ZRE120 5F —
33240 — Bracket Assy, Reverse Shift Arm
33240-16020 Bracket Assy, Reverse Shift Arm
2005-02 → 2007-05 ended
ZZE122 5F —
33240-0D030 Bracket Assy, Reverse Shift Arm
2008-02 → 2012-10 ended
ZRE120 5F —
33240-16020 Bracket Assy, Reverse Shift Arm
2007-05 → 2008-02 ended
ZRE120 5F —
33240-0D030 Bracket Assy, Reverse Shift Arm
2012-10 → 2013-10 ended
ZRE120 5F —
33240-0D040 Bracket Assy, Reverse Shift Arm
2013-10 → —
ZRE120 5F —
33242E — Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2005-02 → 2007-05 ended
ZZE122 5F —
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2007-05 → 2012-10 ended
ZRE120 5F —
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2012-10 → —
ZRE120 5F —
33243A — Shaft, Gear Shift Fork, NO.2
33243-20070 Shaft, Gear Shift Fork, NO.2
2005-02 → 2007-05 ended
ZZE122 5F —
33243-0D040 Shaft, Gear Shift Fork, NO.2
2008-02 → 2012-10 ended
ZRE120 5F —
33243-20070 Shaft, Gear Shift Fork, NO.2
2007-05 → 2008-02 ended
ZRE120 5F —
33243-0D040 Shaft, Gear Shift Fork, NO.2
2012-10 → 2013-12 ended
ZRE120 5F —
33243-0D060 Shaft, Gear Shift Fork, NO.2
2013-12 → —
ZRE120 5F —
33244G — Shaft, Gear Shift Fork, NO.3
33244-52030 Shaft, Gear Shift Fork, NO.3
2005-02 → 2007-05 ended
ZZE122 5F —
33244-0D030 Shaft, Gear Shift Fork, NO.3
2008-02 → 2012-10 ended
ZRE120 5F —
33244-52030 Shaft, Gear Shift Fork, NO.3
2007-05 → 2008-02 ended
ZRE120 5F —
33244-0D030 Shaft, Gear Shift Fork, NO.3
2012-10 → 2013-12 ended
ZRE120 5F —
33244-0D050 Shaft, Gear Shift Fork, NO.3
2013-12 → —
ZRE120 5F —
33251A — Lever, Shift, Inner NO.1
33251-20070 Lever, Shift, Inner NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33251-02010 Lever, Shift, Inner NO.1
2010-11 → 2012-10 ended
ZRE120 5F —
33251-12090 Lever, Shift, Inner NO.1
2007-05 → 2010-11 ended
ZRE120 5F —
33251-02010 Lever, Shift, Inner NO.1
2012-10 → —
ZRE120 5F —
33252A — Lever, Shift, Inner NO.2
33252-12011 Lever, Shift, Inner NO.2
2005-02 → 2007-05 ended
ZZE122 5F —
33252-0D010 Lever, Shift, Inner NO.2
2010-11 → 2012-02 ended
ZRE120 5F —
33252-0D011 Lever, Shift, Inner NO.2
2012-02 → 2012-10 ended
ZRE120 5F —
33252-12040 Lever, Shift, Inner NO.2
2007-05 → 2010-11 ended
ZRE120 5F —
33252-0D011 Lever, Shift, Inner NO.2
2012-10 → —
ZRE120 5F —
33256 — Lever, Select Inner
33256-12022 Lever, Select Inner
2005-02 → 2007-05 ended
ZZE122 5F —
33256-0D020 Lever, Select Inner
2008-02 → 2012-10 ended
ZRE120 5F —
33256-12022 Lever, Select Inner
2007-05 → 2008-02 ended
ZRE120 5F —
33256-0D020 Lever, Select Inner
2012-10 → —
ZRE120 5F —
33256C — Pin, Slotted Spring (FOR SELECT INNER LEVER)
90254-05016 Pin, Slotted Spring (FOR SELECT INNER LEVER)
2005-02 → 2007-05 ended
ZZE122 5F —
90254-05016 Pin, Slotted Spring (FOR SELECT INNER LEVER)
2007-05 → 2008-02 ended
ZRE120 5F —
90254-C0001 Pin, Slotted Spring (FOR SELECT INNER LEVER)
2008-02 → 2012-10 ended
ZRE120 5F —
90254-C0001 Pin, Slotted Spring (FOR SELECT INNER LEVER)
2012-10 → —
ZRE120 5F —
33261C — Shaft, Shift & Select Lever
33261-42012 Shaft, Shift & Select Lever
2005-02 → 2007-05 ended
ZZE122 5F —
33261-0D050 Shaft, Shift & Select Lever
2008-02 → 2010-02 ended
ZRE120 5F —
33261-0D051 Shaft, Shift & Select Lever
2010-02 → 2012-10 ended
ZRE120 5F —
33261-52110 Shaft, Shift & Select Lever
2007-05 → 2008-02 ended
ZRE120 5F —
33261-02030 Shaft, Shift & Select Lever
2013-10 → 2014-10 ended
ZRE120 5F —
33261-02031 Shaft, Shift & Select Lever
2014-10 → —
ZRE120 5F —
33261-0D051 Shaft, Shift & Select Lever
2012-10 → 2013-10 ended
ZRE120 5F —
33261H — Seal, Oil (FOR SHIFT & SELECT LEVER SHAFT)
90310-15004 Seal, Oil (FOR SHIFT & SELECT LEVER SHAFT)
2007-05 → 2008-02 ended
ZRE120 5F —
90310-C0002 Seal, Oil (FOR SHIFT & SELECT LEVER SHAFT)
2008-02 → 2012-10 ended
ZRE120 5F —
90310-C0002 Seal, Oil (FOR SHIFT & SELECT LEVER SHAFT)
2012-10 → —
ZRE120 5F —
33261K — Bearing, Needle Roller (FOR SHIFT & SELECT LEVER SHAFT)
90369-15001 Bearing, Needle Roller (FOR SHIFT & SELECT LEVER SHAFT)
2005-02 → 2007-05 ended
ZZE122 5F —
90369-15001 Bearing, Needle Roller (FOR SHIFT & SELECT LEVER SHAFT)
2007-05 → 2008-02 ended
ZRE120 5F —
90369-C0004 Bearing, Needle Roller (FOR SHIFT & SELECT LEVER SHAFT)
2008-02 → 2012-10 ended
ZRE120 5F —
90369-C0004 Bearing, Needle Roller (FOR SHIFT & SELECT LEVER SHAFT)
2012-10 → 2013-10 ended
ZRE120 5F —
90369-C0008 Bearing, Needle Roller (FOR SHIFT & SELECT LEVER SHAFT)
2013-10 → —
ZRE120 5F —
33266C — Plate, Shift Interlock
33266-20020 Plate, Shift Interlock
2005-02 → 2007-05 ended
ZZE122 5F —
33266-0D020 Plate, Shift Interlock
2008-02 → 2012-10 ended
ZRE120 5F —
33266-20020 Plate, Shift Interlock
2007-05 → 2008-02 ended
ZRE120 5F —
33266-02020 Plate, Shift Interlock
2013-10 → —
ZRE120 5F —
33266-0D020 Plate, Shift Interlock
2012-10 → 2013-10 ended
ZRE120 5F —
33275 — Seat, Shift Detent Ball Spring, NO.1
33275-12041 note Seat, Shift Detent Ball Spring, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33275-12041 note Seat, Shift Detent Ball Spring, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
33275-12041 note Seat, Shift Detent Ball Spring, NO.1
2012-10 → 2015-12 ended
ZRE120 5F —
33275-12041 note Seat, Shift Detent Ball Spring, NO.1
2015-12 → —
ZRE120 5F —
33275C — Ball (FOR SHIFT DETENT)
90360-10003 Ball (FOR SHIFT DETENT)
2005-02 → 2007-05 ended
ZZE122 5F —
90360-10003 Ball (FOR SHIFT DETENT)
2007-05 → 2008-02 ended
ZRE120 5F —
90360-C0007 Ball (FOR SHIFT DETENT)
2008-02 → 2012-10 ended
ZRE120 5F —
90360-C0007 Ball (FOR SHIFT DETENT)
2012-10 → —
ZRE120 5F —
33275E — Spring, Compression (FOR SHIFT DETENT BALL)
90501-12187 Spring, Compression (FOR SHIFT DETENT BALL)
2005-02 → 2007-05 ended
ZZE122 5F —
90501-12187 Spring, Compression (FOR SHIFT DETENT BALL)
2007-05 → 2008-08 ended
ZRE120 5F —
90501-12207 Spring, Compression (FOR SHIFT DETENT BALL)
2008-08 → 2012-10 ended
ZRE120 5F —
90501-12207 Spring, Compression (FOR SHIFT DETENT BALL)
2012-10 → 2013-10 ended
ZRE120 5F —
90501-C0022 Spring, Compression (FOR SHIFT DETENT BALL)
2013-10 → —
ZRE120 5F —
33275F — Plug (FOR SHIFT DETENT BALL)
90341-12004 Plug (FOR SHIFT DETENT BALL)
2005-02 → 2007-05 ended
ZZE122 5F —
90341-12004 Plug (FOR SHIFT DETENT BALL)
2007-05 → 2012-10 ended
ZRE120 5F —
90341-12004 Plug (FOR SHIFT DETENT BALL)
2012-10 → —
ZRE120 5F —
33276E — Seat, Select Spring, NO.1
33276-12022 Seat, Select Spring, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33276-0D010 Seat, Select Spring, NO.1
2008-02 → 2012-10 ended
ZRE120 5F —
33276-12022 Seat, Select Spring, NO.1
2007-05 → 2008-02 ended
ZRE120 5F —
33276-0D010 Seat, Select Spring, NO.1
2012-10 → 2015-06 ended
ZRE120 5F —
33276-0D030 Seat, Select Spring, NO.1
2015-07 → —
ZRE120 5F —
33276F — Spring, Compression, NO.1 (FOR SELECT RETURN)
90501-18125 Spring, Compression, NO.1 (FOR SELECT RETURN)
2005-02 → 2007-05 ended
ZZE122 5F —
90501-17040 Spring, Compression, NO.1 (FOR SELECT RETURN)
2007-05 → 2008-02 ended
ZRE120 5F —
90501-C0013 Spring, Compression, NO.1 (FOR SELECT RETURN)
2008-02 → 2012-10 ended
ZRE120 5F —
90501-C0013 Spring, Compression, NO.1 (FOR SELECT RETURN)
2012-10 → —
ZRE120 5F —
33276H — Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
90520-15003 Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
2005-02 → 2007-05 ended
ZZE122 5F —
90520-15003 Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
2007-05 → 2008-02 ended
ZRE120 5F —
90520-C0003 Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
2008-02 → 2012-10 ended
ZRE120 5F —
90520-C0003 Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
2012-10 → 2016-03 ended
ZRE120 5F —
90520-C0034 Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
2016-04 → —
ZRE120 5F —
33277 — Seat, Select Spring, NO.2
33277-12011 Seat, Select Spring, NO.2
2005-02 → 2007-05 ended
ZZE122 5F —
33277-0D020 Seat, Select Spring, NO.2
2008-02 → 2012-10 ended
ZRE120 5F —
33277-12011 Seat, Select Spring, NO.2
2007-05 → 2008-02 ended
ZRE120 5F —
33277-0D020 Seat, Select Spring, NO.2
2012-10 → 2015-06 ended
ZRE120 5F —
33277-0D050 Seat, Select Spring, NO.2
2015-07 → —
ZRE120 5F —
33277A — Spring, Compression, NO.2 (FOR SELECT RETURN)
90501-16136 Spring, Compression, NO.2 (FOR SELECT RETURN)
2005-02 → 2007-05 ended
ZZE122 5F —
90501-16190 Spring, Compression, NO.2 (FOR SELECT RETURN)
2007-05 → 2008-02 ended
ZRE120 5F —
90501-C0012 Spring, Compression, NO.2 (FOR SELECT RETURN)
2008-02 → 2012-10 ended
ZRE120 5F —
90501-C0012 Spring, Compression, NO.2 (FOR SELECT RETURN)
2012-10 → —
ZRE120 5F —
33277B — Ring, E (FOR SELECT SPRING NO.2 SEAT)
90523-12003 Ring, E (FOR SELECT SPRING NO.2 SEAT)
2005-02 → 2007-05 ended
ZZE122 5F —
90523-12003 Ring, E (FOR SELECT SPRING NO.2 SEAT)
2007-05 → 2008-02 ended
ZRE120 5F —
90523-C0001 Ring, E (FOR SELECT SPRING NO.2 SEAT)
2008-02 → 2012-10 ended
ZRE120 5F —
90523-C0001 Ring, E (FOR SELECT SPRING NO.2 SEAT)
2012-10 → —
ZRE120 5F —
33280 — Pin Assy, Reverse Restrict
33280-12061 Pin Assy, Reverse Restrict
2005-02 → 2007-05 ended
ZZE122 5F —
33280-0D010 Pin Assy, Reverse Restrict
2007-05 → 2012-10 ended
ZRE120 5F —
33280-0D010 Pin Assy, Reverse Restrict
2012-10 → 2013-10 ended
ZRE120 5F —
33280-0D020 Pin Assy, Reverse Restrict
2013-10 → —
ZRE120 5F —
33281B — Pin, Lever Lock (FOR SHIFT OUTER LEVER)
33281-02010 Pin, Lever Lock (FOR SHIFT OUTER LEVER)
2008-02 → 2012-10 ended
ZRE120 5F —
33281-16020 Pin, Lever Lock (FOR SHIFT OUTER LEVER)
2007-05 → 2008-02 ended
ZRE120 5F —
33281-02010 Pin, Lever Lock (FOR SHIFT OUTER LEVER)
2012-10 → —
ZRE120 5F —
33283D — Plug (FOR REVERSE RESTRICT PIN)
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
2005-02 → 2007-05 ended
ZZE122 5F —
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
2007-05 → 2012-10 ended
ZRE120 5F —
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
2012-10 → 2013-10 ended
ZRE120 5F —
90341-C0004 Plug (FOR REVERSE RESTRICT PIN)
2013-10 → —
ZRE120 5F —
33283G — Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
90254-05003 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2005-02 → 2007-05 ended
ZZE122 5F —
90254-05003 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2007-05 → 2012-10 ended
ZRE120 5F —
90254-05003 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2012-10 → —
ZRE120 5F —
33290 — Ball Assy, Lock, NO.1
33290-12011 note Ball Assy, Lock, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33290-52040 note Ball Assy, Lock, NO.1
2005-02 → 2007-05 ended
ZZE122 5F —
33290-0D010 note Ball Assy, Lock, NO.1
2008-02 → 2012-10 ended
ZRE120 5F —
33290-12011 note Ball Assy, Lock, NO.1
2007-05 → 2012-10 ended
ZRE120 5F —
33290-52040 note Ball Assy, Lock, NO.1
2007-05 → 2008-02 ended
ZRE120 5F —
33290-0D010 note Ball Assy, Lock, NO.1
2012-10 → —
ZRE120 5F —
33290-0D020 note Ball Assy, Lock, NO.1
2013-10 → —
ZRE120 5F —
33290-12011 note Ball Assy, Lock, NO.1
2012-10 → 2013-10 ended
ZRE120 5F —
33295A — Shaft, Reverse Restrict
33295-0D010 Shaft, Reverse Restrict
2010-04 → 2012-10 ended
ZRE120 5F —
33295-52010 Shaft, Reverse Restrict
2007-05 → 2010-04 ended
ZRE120 5F —
33295-0D010 Shaft, Reverse Restrict
2012-10 → —
ZRE120 5F —
33528B — Cover, Control Shaft
33506-12142 Cover, Control Shaft
2005-02 → 2007-05 ended
ZZE122 5F —
33506-0D020 Cover, Control Shaft
2008-02 → 2012-10 ended
ZRE120 5F —
33506-17081 Cover, Control Shaft
2007-05 → 2008-02 ended
ZRE120 5F —
33506-02020 Cover, Control Shaft
2013-10 → —
ZRE120 5F —
33506-0D020 Cover, Control Shaft
2012-10 → 2013-10 ended
ZRE120 5F —
33528C — Seal, Oil (FOR CONTROL SHAFT COVER)
90311-18013 Seal, Oil (FOR CONTROL SHAFT COVER)
2005-02 → 2007-05 ended
ZZE122 5F —
90310-C0001 Seal, Oil (FOR CONTROL SHAFT COVER)
2008-02 → 2012-10 ended
ZRE120 5F —
90311-18013 Seal, Oil (FOR CONTROL SHAFT COVER)
2007-05 → 2008-02 ended
ZRE120 5F —
90310-C0001 Seal, Oil (FOR CONTROL SHAFT COVER)
2012-10 → —
ZRE120 5F —
33528E — Bolt (FOR CONTROL SHAFT COVER)
90119-10288 note Bolt (FOR CONTROL SHAFT COVER)
2005-02 → 2007-05 ended
ZZE122 5F —
91612-61025 note Bolt (FOR CONTROL SHAFT COVER)
2005-02 → 2007-05 ended
ZZE122 5F —
90119-10288 note Bolt (FOR CONTROL SHAFT COVER)
2007-05 → 2012-10 ended
ZRE120 5F —
91612-61025 note Bolt (FOR CONTROL SHAFT COVER)
2007-05 → 2012-10 ended
ZRE120 5F —
90119-10288 note Bolt (FOR CONTROL SHAFT COVER)
2012-10 → 2013-10 ended
ZRE120 5F —
90119-C0281 note Bolt (FOR CONTROL SHAFT COVER)
2013-10 → —
ZRE120 5F —
90119-C0282 note Bolt (FOR CONTROL SHAFT COVER)
2013-10 → —
ZRE120 5F —
91612-61025 note Bolt (FOR CONTROL SHAFT COVER)
2012-10 → 2013-10 ended
ZRE120 5F —
33531B — Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
33531-12030 Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
2005-02 → 2007-05 ended
ZZE122 5F —
33531-0D020 Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
2008-02 → 2012-10 ended
ZRE120 5F —
33531-12030 Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
2007-05 → 2008-02 ended
ZRE120 5F —
33531-0D020 Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
2012-10 → —
ZRE120 5F —
33544C — Damper, Shift Lever
33544-02020 Damper, Shift Lever
2008-02 → 2010-04 ended
ZRE120 5F —
33544-02021 Damper, Shift Lever
2010-04 → 2012-10 ended
ZRE120 5F —
33544-12050 Damper, Shift Lever
2007-05 → 2008-02 ended
ZRE120 5F —
33544-02021 Damper, Shift Lever
2012-10 → —
ZRE120 5F —
33584A — Gasket, Control Shift Lever Retainer
33584-12060 Gasket, Control Shift Lever Retainer
2005-02 → 2007-05 ended
ZZE122 5F —
33584-0D010 Gasket, Control Shift Lever Retainer
2008-02 → 2012-10 ended
ZRE120 5F —
33584-12060 Gasket, Control Shift Lever Retainer
2007-05 → 2008-02 ended
ZRE120 5F —
33584-0D010 Gasket, Control Shift Lever Retainer
2012-10 → —
ZRE120 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
