Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

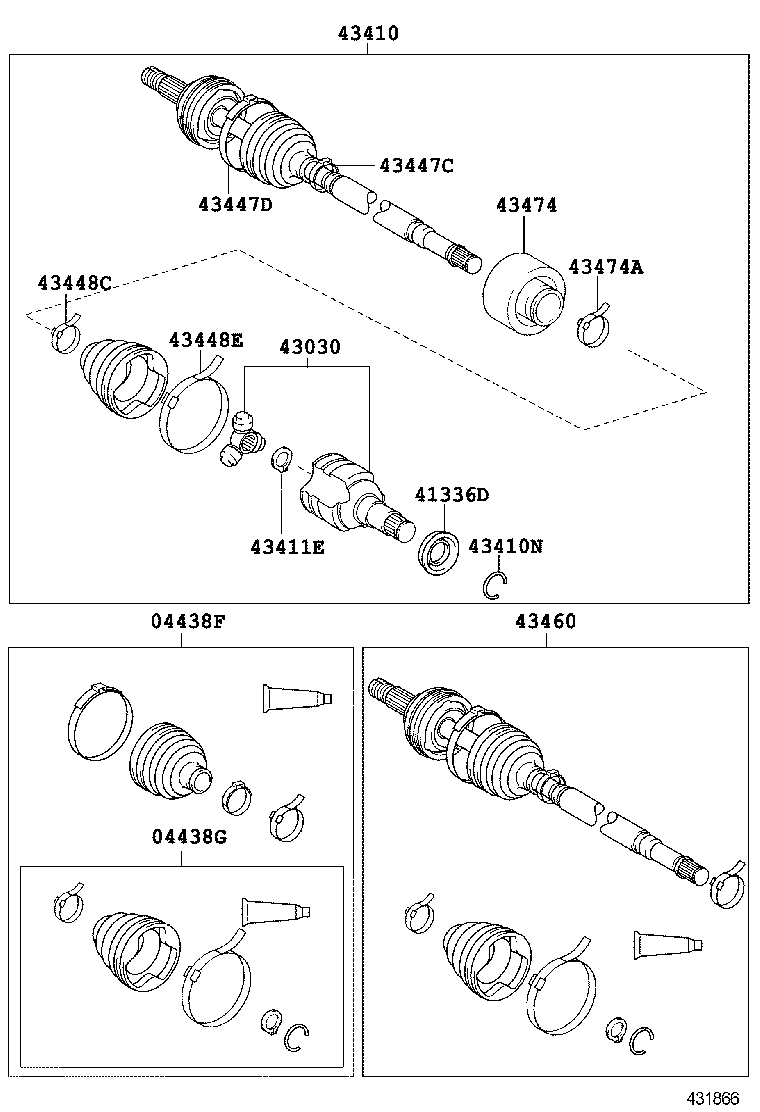

Exploded illustration 431866 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (4 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (3 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (4 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (3 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (4 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (4 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (4 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (4 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (5 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (4 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (4 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (4 parts) 43474 — DAMPER, DRIVE SHAFT (4 parts) 43474A — CLAMP (FOR DRIVE SHAFT DAMPER SETTING) (4 parts)
431866 · 14 callouts Full size ↗
55 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-12060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2004-02 → 2006-10 ended
ZZE122 —
04427-12570 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2006-11 → 2007-05 ended
ZZE122 —
04427-02450 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2007-05 → 2012-10 ended
ZRE120 —
04427-02450 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2012-10 → —
ZRE120 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04438-12680 Boot Kit, Front Drive Shaft Inboard Joint, RH
2004-02 → 2006-10 ended
ZZE122 —
04438-12940 Boot Kit, Front Drive Shaft Inboard Joint, RH
2006-11 → 2007-05 ended
ZZE122 —
04437-02300 Boot Kit, Front Drive Shaft Inboard Joint, RH
2007-05 → 2012-10 ended
ZRE120 —
04437-02300 Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-10 → —
ZRE120 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-12060 Cover, Front Drive Shaft Dust, RH
2004-02 → 2006-10 ended
ZZE122 —
41336-12060 Cover, Front Drive Shaft Dust, RH
2006-11 → 2007-05 ended
ZZE122 —
41336-02120 Cover, Front Drive Shaft Dust, RH
2007-05 → 2012-10 ended
ZRE120 —
41336-02120 Cover, Front Drive Shaft Dust, RH
2012-10 → —
ZRE120 —
43030 — Joint Assy, Front Drive Inboard, RH
43040-12090 Joint Assy, Front Drive Inboard, RH
2004-02 → 2006-10 ended
ZZE122 —
43040-12090 Joint Assy, Front Drive Inboard, RH
2006-11 → 2007-05 ended
ZZE122 —
43040-02140 Joint Assy, Front Drive Inboard, RH
2007-05 → 2012-10 ended
ZRE120 —
43040-02140 Joint Assy, Front Drive Inboard, RH
2012-10 → —
ZRE120 —
43410 — Shaft Assy, Front Drive, RH
43410-12720 Shaft Assy, Front Drive, RH
2004-02 → 2006-10 ended
ZZE122 —
43410-12721 Shaft Assy, Front Drive, RH
2006-11 → 2007-05 ended
ZZE122 —
43410-02640 Shaft Assy, Front Drive, RH
2007-05 → 2012-10 ended
ZRE120 —
43410-02640 Shaft Assy, Front Drive, RH
2012-10 → —
ZRE120 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2004-02 → 2006-10 ended
ZZE122 —
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2006-11 → 2007-05 ended
ZZE122 —
43425-02180 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2007-05 → 2012-10 ended
ZRE120 —
43425-02180 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2012-10 → —
ZRE120 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-23056 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2004-02 → 2006-10 ended
ZZE122 —
90520-23056 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2006-11 → 2007-05 ended
ZZE122 —
43425-02170 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2007-05 → 2012-10 ended
ZRE120 —
43425-02170 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2012-10 → —
ZRE120 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
90949-01A65 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2004-02 → 2007-05 ended
ZZE122 —
42345-02400 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-05 → 2012-10 ended
ZRE120 —
42345-02400 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → —
ZRE120 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2004-02 → 2007-05 ended
ZZE122 —
42345-02390 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-05 → 2012-10 ended
ZRE120 —
42345-02390 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → —
ZRE120 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12270 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-11 → 2007-05 ended
ZZE122 —
90949-01108 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2004-02 → 2006-10 ended
ZZE122 —
42345-02370 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-05 → 2012-10 ended
ZRE120 —
42345-02370 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → —
ZRE120 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2004-02 → 2006-10 ended
ZZE122 —
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-11 → 2007-05 ended
ZZE122 —
42345-02360 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-05 → 2012-10 ended
ZRE120 —
42345-02360 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → —
ZRE120 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-80013 Shaft Assy, Front Drive Outboard Joint, RH
2004-02 → 2006-11 ended
ZZE122 4FC —
43460-80038 Shaft Assy, Front Drive Outboard Joint, RH
2005-02 → 2006-11 ended
ZZE122 5F —
43460-80107 Shaft Assy, Front Drive Outboard Joint, RH
2006-11 → 2007-05 ended
ZZE122 —
43460-09S00 Shaft Assy, Front Drive Outboard Joint, RH
2007-05 → 2012-10 ended
ZRE120 —
43460-09S00 Shaft Assy, Front Drive Outboard Joint, RH
2012-10 → —
ZRE120 —
43474 — Damper, Drive Shaft
43474-52030 Damper, Drive Shaft
2004-02 → 2006-10 ended
ZZE122 —
43474-52030 Damper, Drive Shaft
2006-11 → 2007-05 ended
ZZE122 —
43474-02230 Damper, Drive Shaft
2007-05 → 2012-10 ended
ZRE120 —
43474-02230 Damper, Drive Shaft
2012-10 → —
ZRE120 —
43474A — Clamp (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2004-02 → 2006-10 ended
ZZE122 —
42345-14010 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2006-11 → 2007-05 ended
ZZE122 —
42345-02380 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2007-05 → 2012-10 ended
ZRE120 —
42345-02380 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2012-10 → —
ZRE120 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
