Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

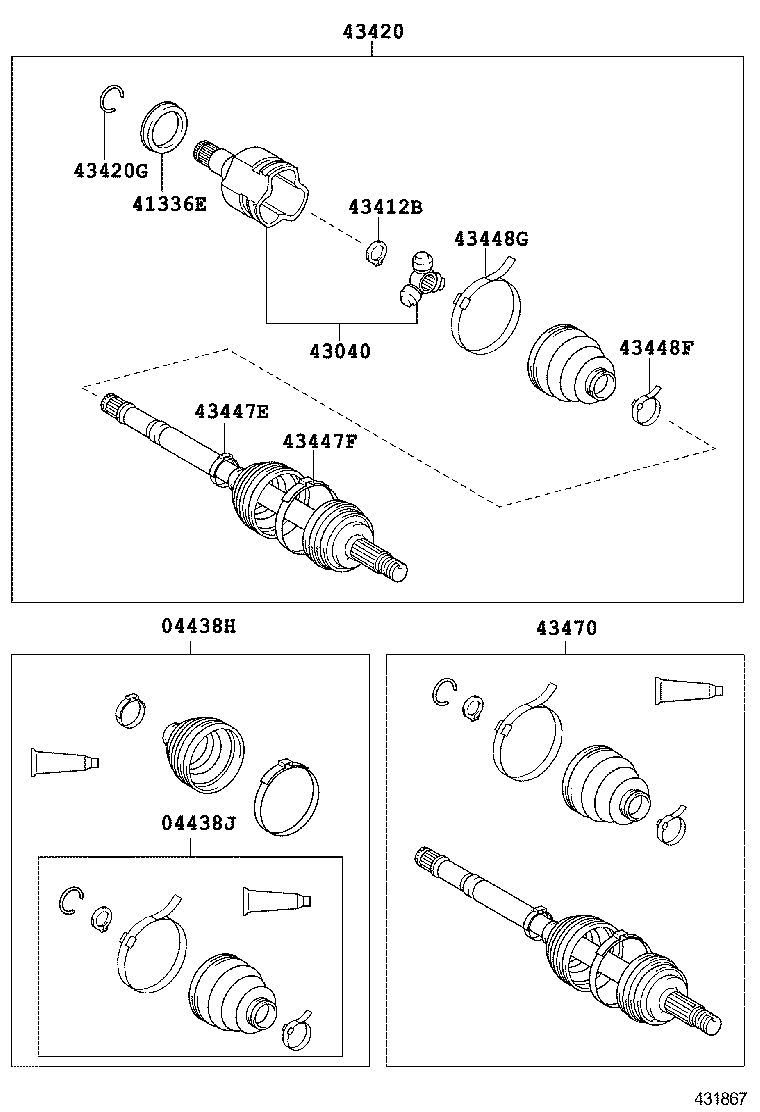

Exploded illustration 431867 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (4 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (6 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (4 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (4 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (4 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (3 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (3 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (4 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (4 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (5 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (4 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (6 parts)
431867 · 12 callouts Full size ↗
51 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-12060 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2004-02 → 2006-10 ended
ZZE122 4FC —
04428-12580 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-11 → 2007-05 ended
ZZE122 —
04438-12690 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2005-02 → 2006-10 ended
ZZE122 5F —
04427-02450 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2007-05 → 2012-10 ended
ZRE120 —
04427-02450 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2012-10 → —
ZRE120 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-12680 Boot Kit, Front Drive Shaft Inboard Joint, LH
2004-02 → 2006-10 ended
ZZE122 —
04438-12940 Boot Kit, Front Drive Shaft Inboard Joint, LH
2006-11 → 2007-05 ended
ZZE122 —
04437-02300 Boot Kit, Front Drive Shaft Inboard Joint, LH
2007-05 → 2012-10 ended
ZRE120 —
04437-02300 Boot Kit, Front Drive Shaft Inboard Joint, LH
2012-10 → —
ZRE120 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-12060 Cover, Front Drive Shaft Dust, LH
2004-02 → 2006-10 ended
ZZE122 —
41336-12060 Cover, Front Drive Shaft Dust, LH
2006-11 → 2007-05 ended
ZZE122 —
41336-02120 Cover, Front Drive Shaft Dust, LH
2007-05 → 2012-10 ended
ZRE120 —
41336-02120 Cover, Front Drive Shaft Dust, LH
2012-10 → —
ZRE120 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-12090 Joint Assy, Front Drive Inboard, LH
2006-11 → 2007-05 ended
ZZE122 —
43040-12090 Joint Assy, Front Drive Inboard, LH
2004-02 → 2006-10 ended
ZZE122 —
43040-02140 Joint Assy, Front Drive Inboard, LH
2007-05 → 2012-10 ended
ZRE120 —
43040-02140 Joint Assy, Front Drive Inboard, LH
2012-10 → —
ZRE120 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-23056 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2004-02 → 2006-10 ended
ZZE122 —
90520-23056 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2006-11 → 2007-05 ended
ZZE122 —
43425-02170 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2007-05 → 2012-10 ended
ZRE120 —
43425-02170 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2012-10 → —
ZRE120 —
43420 — Shaft Assy, Front Drive, LH
43420-12650 Shaft Assy, Front Drive, LH
2005-02 → 2006-10 ended
ZZE122 5F —
43420-12651 Shaft Assy, Front Drive, LH
2006-11 → 2007-05 ended
ZZE122 5F —
43420-12660 Shaft Assy, Front Drive, LH
2004-02 → 2006-10 ended
ZZE122 4FC —
43420-12661 Shaft Assy, Front Drive, LH
2006-11 → 2007-05 ended
ZZE122 4FC —
43420-02690 Shaft Assy, Front Drive, LH
2007-05 → 2012-10 ended
ZRE120 —
43420-02690 Shaft Assy, Front Drive, LH
2012-10 → —
ZRE120 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2004-02 → 2006-10 ended
ZZE122 —
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2006-11 → 2007-05 ended
ZZE122 —
43425-02180 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2007-05 → 2012-10 ended
ZRE120 —
43425-02180 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2012-10 → —
ZRE120 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90949-01A65 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2004-02 → 2007-05 ended
ZZE122 —
42345-02400 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-05 → 2012-10 ended
ZRE120 —
42345-02400 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2012-10 → —
ZRE120 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2004-02 → 2007-05 ended
ZZE122 —
42345-02390 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-05 → 2012-10 ended
ZRE120 —
42345-02390 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2012-10 → —
ZRE120 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12270 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-11 → 2007-05 ended
ZZE122 —
90949-01108 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2004-02 → 2006-10 ended
ZZE122 —
42345-02370 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-05 → 2012-10 ended
ZRE120 —
42345-02370 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2012-10 → —
ZRE120 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2004-02 → 2006-10 ended
ZZE122 —
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-11 → 2007-05 ended
ZZE122 —
42345-02360 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-05 → 2012-10 ended
ZRE120 —
42345-02360 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2012-10 → —
ZRE120 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-80032 Shaft Assy, Front Drive Outboard Joint, LH
2004-02 → 2006-11 ended
ZZE122 4FC —
43470-80056 Shaft Assy, Front Drive Outboard Joint, LH
2005-02 → 2006-11 ended
ZZE122 5F —
43470-80184 Shaft Assy, Front Drive Outboard Joint, LH
2006-11 → 2007-05 ended
ZZE122 4FC —
43470-80185 Shaft Assy, Front Drive Outboard Joint, LH
2006-11 → 2007-05 ended
ZZE122 5F —
43470-09U20 Shaft Assy, Front Drive Outboard Joint, LH
2007-05 → 2012-10 ended
ZRE120 —
43470-09U20 Shaft Assy, Front Drive Outboard Joint, LH
2012-10 → —
ZRE120 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
